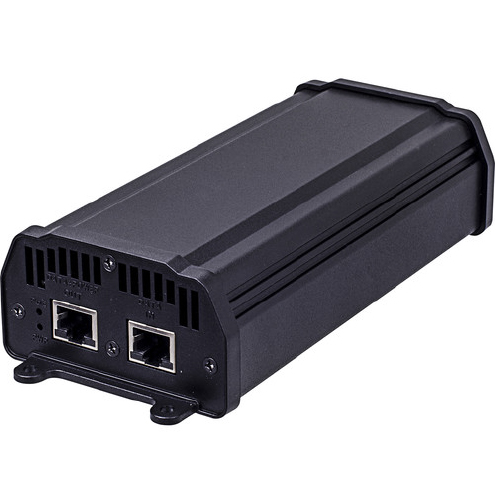

Vivotek PoE Injector W Surge Prot 95W v2

Item #

POEVIV1095

Brand

Vivotek

Model

AP-GIC-011A-095

Color

BLACK

Warranty

1 YEAR

Condition

RETAIL BOX

If out of stock

3 to 5 Days

Add On Products

Vivotek 8CH NVR W/8PoE NO HDx2 4K

NVV093

VIVOTEK 8 CH NVR 8ch Embedded POE

NVV094

VIVOTEK 16 CH NVR 16ch Embedded POE

NVV163P3

VIVOTEK 16 CH NVR 16ch Embedded POE

NVV163P4

VIVOTEK 32 CH NVR 16POE H.265 NO HD

NVV32P2

Product Description

The 95W PoH/PoE Injector from Vivotek extends Ethernet signal and powers network cameras over a single Ethernet connection up to 328'. It features 12 kV surge protection, over-current protection, short-circuit protection, and PoE PD auto detection. This Power over HDBaseT / Power over Ethernet injector operates on 100 to 240 VAC input, provides 95W of output power, and supports 802.3at standards.

Provides 95W Output Power
Over-Current & Short-Circuit Protection
PoE PD Auto Detection
Supports 802.3at


Ethernet:	Input Port: 1 x RJ45, Ethernet Output Port: 1 x RJ45, PoE Ethernet Output Power: 54 VDC / 95 W Power Pin Assignment: 1/2(-), 3/6(+), 4/5(+), 7/8(-) Detection: PoE PD auto detection

Standards:	IEEE 802.3 10Base-T (Ethernet) IEEE 802.3u 100Base-TX (fast Ethernet) IEEE 802.3ab 1000Base-TX (Gigabit Ethernet) IEEE 802.3at PoE

Transmission Media:	10Base-T: Cat 3, 4, 5 UTP/STP 100Base-TX: Cat 5, 5e UTP/STP 1000Base-TX: Cat 5e, 6, 7 UTP/STP

Maximum Distance:	328' / 100 m

Power Input:	100-240 VAC, 50/60 Hz

Power Consumption:	100 W

Surge Protection:	12 kV

Surge Protected Power:	4 kV

Operating Temperature:	-4 to 86°F / -20 to 30°C at 95 W -4 to 104°F / -20 to 40°C at 80 W -4 to 122°F / -20 to 50°C at 70 W

Storage Temperature:	-4 to 158°F / -20 to 70°C

Humidity (Non-Condensing):	10 to 90%

Certifications:	CE, C-Tick, FCC, VCCI, LVD

Dimensions:	7.2 x 3.1 x 1.7" / 18.2 x 7.9 x 4.2 cm

Weight:	1.3 lb / 580 g

Packaging Information:	Package Weight: 1.9 lb Box Dimensions (LxWxH): 8.5 x 6.5 x 2"
