Device
|
Model

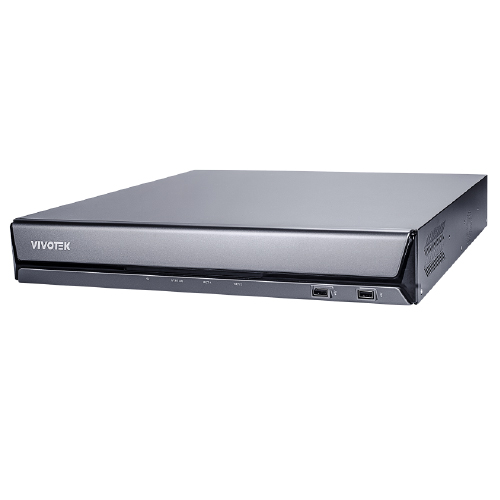

ND9442P
OS
Embedded Linux
Watchdog
Hardware + Software
Power Restoration
System Restart Automatically after Power Recovery
|
|
| Display |
LiveView Display
16 Channels
Multi-Layout Display: 1x1, 2x2, 3x3, 1P+3, 2P+3, 1M+5, 1P+6, 3V, 1M+12, 4x4
Video Output
HDMI x1, VGA x1
Display Resolution
3840x2160, 1920x1080, 1280x720
Fisheye Dewarp
Local: 1O, 1R, 1P, 1O3R, 1O8R, 1P3R
Web: 1O, 1R, 1P
PTZ Operation
Direction Control, Home, Iris, Preset, Patrol (Group)
|
|
Video
|
Video Format
H.265, H.264, MJPEG
Graphic Decoder
Hardware decoding
Decoding Resolution
Up to 7680x2560
Decoding Capability
H.265/H.264:
3840x2160 @ 90 fps
1920x1080 @ 360 fps
|
|
Audio
|
Audio Format
G.711, G.726, MPEG-2 AAC-LC
Audio In/Out
3.5 Phone Jack Audio Output x1
3.5 Phone Jack Audio Input (Reserved) x1
|
|
| Record |
Recording Time (sec.)
Pre-Record: 5 (Max. 10)
Post-Record: 20 (Max. 300)
Recording Stream
Dual
Recording Throughput
192 Mbps
Recording Mode
Continuous, Schedule, Manual, Event, Activity Adaptive Streaming
Recording Setting
Recycle (unit: Day)
Watermark
Supported
|
|
Storage & Backup
|
HDD Devices
Internal x4 (3.5")
*HDD purchased separately.
HDD Max. Capacity
*Please refer to the recommended HDD list on the VIVOTEK website.
RAID
RAID 0, 1, 5
Disk Management
Create, Format and Remove Disk
HDD S.M.A.R.T.
External Storage
USB Storage (USB 3.0)
Video Clip Export
USB Dongle (FAT Format)
Schedule Backup
FTP
|
|
| Playback |
Playback Display
4 Channels
Multi-Layout Display: 1x1, 2x2, 1P+3, 3V
Playback Control
Regular (play, pause, stop), rewind, next/previous frame, speed control, calendar, event, timeline, timeline scale, thumbnail (storyboard)
Video Search
By calendar, date/time, and alarm
Thumbnail Explorer (Storyboard)
Listing the thumbnails of recorded video (Max. 2-CH)
Snapshot
JPEG
Video Clip Export
Supported
|
|
| Network |
Ethernet
10/100/1000Mbps Ethernet (RJ-45) x2
Network Throughput Input/Output Total
224 Mbps
PoE
802.3at/af compliant PoE ports x 16 (Total Max. 200 W)
* DO NOT suggest connecting any non-PD device with this NVR PoE port in order to avoid potential risk.
PoE Management
Supported
Protocols
IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, SMTP, FTP, DHCP, NTP, DNS, DDNS
|
|
External Interface
|
USB
Front: 2 (USB 2.0)
Back: 1 (USB 3.0)
Alarm In
16
Alarm Out
8
Audio In/ Out
3.5 Phone Jack Audio Output x1
3.5 Phone Jack Audio Input (Reserved) x1
RS485
1 (Reserved)
|
|
| System |
Camera Integration
ONVIF Profile S
Event
Motion Detection, Smart VCA Event, Cyber Attack, PIR Detection, Tampering Detection, Camera DI/DO, Camera Disconnected, Disk Failure, Disk Full, NVR DI/DO, PoE error, Video loss
Event Action
Record, Email (Text), Email (Snapshot), FTP, Buzzer, ePTZ Control (Go to Preset), NVR DO, Camera DO, APP Notification by cloud service
User Management
User level: administrator, regular user
Log
System, recording, user, error
Date & Time
Time Zone, Manual, Automatic Sync NTP, Daylight Saving Time
Language
Czech, English, French, German, Italian, Japanese, Korean, Portuguese, Polish, Russian, Spanish, Simplified Chinese, Traditional Chinese, Arabic
|
|
| Deep Search |
Object Search
People, Vehicle
Scene Search
Line crossing, Intrusion, Loitering
Attribute Search
People: Gender, Age, Clothing Color, Accessories
Vehicles: Type, Color
|
|
| Advanced Features |
VCA Counting Solution
Supported
VCA Event Search
Supported
Smart Search II
Supported
Trend Micro IoT Security
Supported
Cybersecurity Management
Supported
|
|
| Remote Client |
Software AP
Shepherd, VSS (VAST Security Station)
Mobile/Tablet App
iViewer , VIVOCloud, VORTEX(Android & iOS)
Web Browser
Chrome
|
|
| General |
Power Input
100-240V AC, 50/60Hz
Power Consumption
Max. 300 W
Dimensions
432 (W) x 421 (D) x 66 (H) mm
Weight
4.6 kg (without HDD)
Operating Temperature
-10°C ~ 55°C (14°F ~ 131°F)
Humidity
0 ~ 95%
Safety Certifications
CE, LVD, FCC, VCCI, C-Tick, UL, CB, BSMI, BIS
|
