Device
|

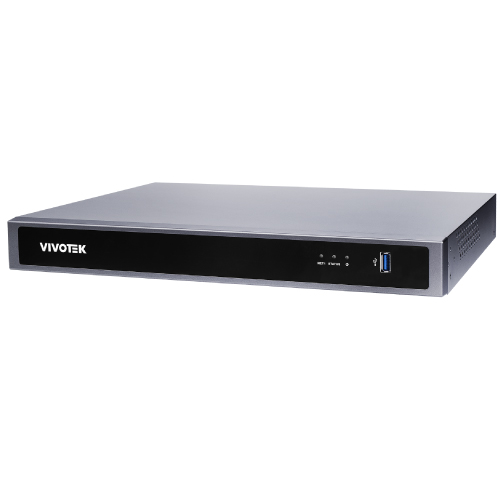

Model ND9426P
Watchdog Hardware + Software
Power Restoration System Restart Automatically after Power Recovery
Reset Button YES
|
|
| Display |
LiveView Display
16 Channels
Multi Layout Display :
1x1, 2x2, 3x3, 4x4, 1M+5,1M+12, 1P+3,1P+6,2P+3, 3V
Video Output HDMI x1, VGA x1
Display Resolution 3840x2160, 1920x1080, 1280x720
HDMI up to 3840 x2160, VGA up to 1920 x1080p
Fisheye Dewarp Local: 1O, 1P, 1R, 1O3R, 1O8R, 1P3R
Web: 1O, 1R, 1P
PTZ Operation Direction Control, Home, Iris, Preset, Patrol (Group)
|
|
Video
|
Video Format MJPEG, H.264, H.265
Graphic Decoder Hardware decoding
Decoding Resolution Up to 7680x2560
Decoding Capability
H.265/H.264:
3840x2160 @ 120 fps (4-CH)
1920x1080 @ 480 fps (16-CH)
|
|
Audio
|
Audio Format G.711, G.726
Audio In/Out 3.5 Phone Jack Audio Output x1
3.5 Phone Jack Audio Input x1
Record
Recording Time (sec.) Pre-Record: 5 (Max. 10)
Post-Record: 20 (Max. 300)
Recording Throughput 192 Mbps
Recording Mode Continuous, Schedule, Manual, Event
Recording Setting Recycle (unit: Day )
|
|
| Storage & Backup |
HDD Devices Internal x2 (3.5")
RAID RAID 0,1
Disk Management Create, Format and Remove Disk
HDD S.M.A.R.T
External Storage USB Storage (USB 3.0)
Video Clip Export USB Dongle (FAT Format)
Schedule Backup FTP
|
|
Playback
|
Playback Display 4 Channels
Multi Layout Display
Playback Control Regular (Play, Pause, Stop), Rewind, Next / Previous Frame, Speed Control,
Calendar, Event, Timeline, Timeline Scale, Thumbnail (Story board)
Video Search By calendar, date/time, and alarm
Thumbnail Explorer (Story board) Listing the thumbnail of recorded video (Max. 2 CH)
Snapshot JPEG
Video Clip Export Supported
|
|
| Network |
Ethernet 10/100/1000Mbps Ethernet (RJ-45) x2
Network Throughput Input/Output Total 224Mbps
PoE 802.3at/af compliant PoE ports x 16
(total Max. 200W)
PoE Management Supported
Protocols IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, SMTP, FTP, DHCP, NTP,
DNS, DDNS
|
|
| External Interface |
USB Front x1 (USB 3.0)
Back x2 (USB 2.0)
Alarm In 4
Alarm Out 1
Audio 3.5 Phone Jack Audio Output x1
3.5 Phone Jack Audio Input x1 (reserv ed)
|
|
System
|
Camera Integration ONVIF Profile S
Event
Motion Detection, Smart VCA Event, Cyber Attack, PIR Detection, Tampering Detection,
Camera DI/DO, Camera Disconnected, Disk Failure, Disk Full, NVR DI/DO, PoE error
Event Action Video recording, email with snapshot, buzzer, PTZ, FTP, DO (camera, system), full
screen, send to CMS,VIVOCloud APP Notif ication
User Management User level: administrator, regular user
Log System, Recording, User, Error
Date & Time Time Zone, Manual, Automatic Sync NTP, Day light Saving Time
Language Czech, English, French, German, Italian, Japanese, Korean, Portuguese, Polish,
Russian, Spanish, Simplif ied Chinese, Traditional Chinese, Arabic
|
|
| Deep Search |
Object Search People, Vehicle
Scene Search Line crossing, Intrusion, Loitering
Attribute Search People: Gender, Age, Clothing Color, Accessories
Vehicles: Type, Color
|
|
| Advanced Features |
VCA Counting Solution Supported
VCA Event Search Supported
Smart Search II Supported
Trend Micro IoT Security Supported
Cybersecurity Management Supported
|
|
| Remote Client |
Software AP Shepherd, VSS (VAST Security Station)
Mobile/Tablet App iViewer (Android & iOS)
Web Browser Chrome
VIVOCloud Supported
|
|
| General |
Power Input 100-240V AC, 50/60Hz
Power Consumption Max. 270 W
Dimensions 365 (W) x 315 (D) x 44 (H) mm
Weight 2.78 kg
Operating Temperature -10°C ~ 55°C (14°F ~ 131°F)
Humidity 0 ~ 95%
Safety Certifications CE, FCC, VCCI, C-Tick, UL, CB, BSMI, BIS
Warranty 36 months
|
