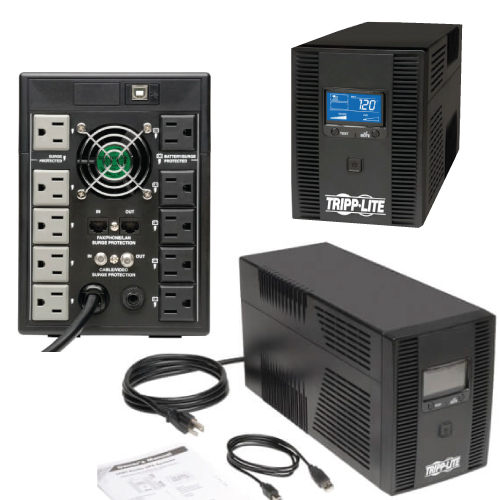

TrippLite 1500VA USB 10 Outlet W/LCD AVR

Item #

USBX1500UTD

Brand

Tripplite

Model

SMART1500LCDT

Color

Black

Warranty

3 Year /1 Year OTC /2 Year MFG

Condition

Retail Box

If out of stock

3 to 5 Days

Add On Products

Asus 1700 H610M 2XDDR4 2PCIe HDMI MATX

MBIT6102

Techly Cat5e Patch Panel 24 Port RV2 1U

NLP524TY

Product Description

Tripplite SMART1500LCDT Line-Interactive Tower UPS System offers voltage regulation, surge suppression and long-lasting battery support for personal computers, network workstations, home entertainment systems and media centers. Internal UPS circuits support entry-level PCs or individual VCR/DVR components during power failures. Prevents data loss, viewing interruptions, lost recordings and loss of component programming. Automatic Voltage Regulation (AVR) circuits continuously regulate brownouts and overvoltages from 92V to 150V back to usable levels, all while maintaining a full battery charge. Offers complete power protection in an attractive all-black cabinet design. Includes 10 built-in outlets, 5 with full battery backup and surge suppression for vital system components and another 5 with surge-suppression only for accessories not requiring battery support. Built-in USB port and included cable enables optional unattended system shutdown without data loss in case of extended power failure. PowerAlert software is available via free download from www.tripplite.com. HID-compliant USB interface also enables integration with built-in power management and auto shutdown features of Windows and Mac OS X. Built-in surge dataline surge suppression jacks protect equipment with single-line dialup/DSL or network Ethernet connection. Built-in audible alarm and large LCD front panel display offers easy to read icon-based status indicators and detailed numeric data regarding input voltage, output voltage, frequency, load percentage, load watts, battery voltage and runtime in minutes. 1500VA/900W power-handling capacity supports entry-level PCs, home entertainment systems, network workstations and audio/video components.

Tripp Lite UPS Smart LCD 1500VA Battery Back Up AVR Coax USB RJ45 10 Outlet

Package Includes
SMART1500LCDT UPS
USB cabling
Manual with warranty information

Specifications

OUTPUT
Output Volt Amp Capacity (VA) 1500
Output kVA capacity (kVA) 1.5
Output Watt Capacity (watts) 900
Nominal Output Voltage(s) Supported 120V
Frequency compatibility 50/60 Hz (auto-selectable)
Output voltage regulation (line mode) -10%, +6%
Output voltage regulation (Battery mode) +/- 5%
Built-in UPS output receptacles 10 5-15R outlet(s)
Surge suppression only outlets 5 UPS outlets, 5 surge-only outlets
Output AC waveform (AC mode) Sine wave
Output AC waveform (battery mode) PWM sine wave

INPUT
Rated input current (at maximum load) 12A
Nominal Input Voltage(s) Supported 120V AC
UPS input connection type 5-15P
Input circuit breaker 20A
UPS Input cord length (ft.) 6 UPS Input cord length (m) 1.8
Recommended Electrical Service 15A 120V

BATTERY.
Half load runtime (minutes) 10 minutes (450 watts).
DC system voltage (VDC) 24.
Battery recharge rate (included batteries) Less than 8 hours from 10% to 90%.
Replacement battery cartridge (internal UPS battery replacement) RBC51 (requires 2).

VOLTAGE REGULATION.
Voltage regulation description Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 92.
to 150.
Overvoltage correction Input voltages between 129 and 147 are reduced by 15%.
Undervoltage correction Input voltages between 92 and 108 are boosted by 18%.

LEDS ALARMS & SWITCHES.
Front panel LCD display LCD screen with scroll buttons indicates Input voltage, Output voltage, Frequency (Hz), AVR boost / cut.
status, Output load in watts, Output load percentage, Output load in watts, Battery voltage and Estimated runtime in minutes.
Alarms Audible alarm indicates power-failure and low-battery conditions.
Alarm cancel operation Power-fail alarm can be silenced using alarm-cancel switch.
Switches Power switch offers whole UPS power control; Scroll/mute button enables LCD selection options and silences audible alarm;.
Test button initiates self test.

SURGE / NOISE SUPPRESSION
UPS AC suppression joule rating 650
UPS AC suppression response time Instantaneous
UPS Dataline suppression 1 line TEL/DSL (1 in / 1 out); 10/100Base T Ethernet; Coax jacks (1 set)
EMI / RFI AC noise suppression Yes

PHYSICAL
Installation form factors supported with included accessories Tower
Primary form factor Tower
UPS / Power Module dimensions in primary form factor (height x width x depth / inches) 8 x 5.75 x 15.4
UPS / Power Module dimensions in primary form factor (height x width x depth / cm) 20.3 x 14.6 x 39.1
UPS / Power Module weight (lbs) 29.4
UPS / Power Module weight (kg) 13.3
UPS Shipping dimensions (height x width x depth / inches) 9 x 11.25 x 19.25
UPS Shipping dimensions (height x width x depth / cm) 22.9 x 28.6 x 48.9
Shipping weight (lbs) 27
Shipping weight (kg) 12.3
Cooling method Fan

ENVIRONMENTAL
Operating Temperature Range +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius
Storage Temperature Range +5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius
Relative Humidity 0 to 95%, non-condensing

COMMUNICATIONS
Communications interface USB (HID enabled)
Network monitoring port description Supports detailed monitoring of UPS and site power conditions
PowerAlert software Free download from www.tripplite.com
Communications cable USB and DB9 Serial cabling included
WatchDog compatibility Supports Watchdog application, OS and hard-reboot restart options for remote applications

LINE / BATTERY TRANSFER
Transfer time 2 milliseconds (AC to battery mode), 6 milliseconds (battery to AC mode)
Low voltage transfer to battery power (setpoint) 92
High voltage transfer to battery power (setpoint) 150

SPECIAL FEATURES
Cold Start (startup in battery mode during a power failure) Cold-start operation supported
Green & high efficiency features Greater than 95% efficiency - GREEN UPS

CERTIFICATIONS
UPS Certifications Tested to UL1778 (USA); Tested to CSA (Canada); Tested to NOM (Mexico); Meets FCC Part 15 Category A (EMI)

WARRANTY
Product Warranty Period (U.S. & Canada) 3-year limited warranty
Product Warranty Period (International) 2-year limited warranty
Product Warranty Period (Mexico) 3-year limited warranty
Product Warranty Period (Puerto Rico) 3-year limited warranty
Connected Equipment Insurance (U.S., Canada & Puerto Rico)
