HARDWARE FEATURES
|
Standards and Protocols:
IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE 802.3x, IEEE 802.1q
TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, SNMP
Interface:
2× 10GE SFP+ Ports (1 WAN, 1 WAN/LAN)
1× 1GE SFP WAN/LAN Ports
8× 1GE RJ45 WAN/LAN Ports
1× RJ45 Console Ports
2× USB Ports (Connecting 4G/3G Modem as WAN Backup)
Network Media:
10BASE-T: UTP category 3, 4, 5 cable (Max 100 m), EIA/TIA-568 100O STP (Max 100 m)
100BASE-TX: UTP category 5, 5e cable (Max 100 m), EIA/TIA-568 100O STP (Max 100 m)
1000BASE-T: UTP category 5e, 6 cable (Max 100 m)
Fan Quantity: 2
Button: Reset Button
Power Supply:
Redundant Dual Power Supplies (100–240 VAC, 50/60 Hz)
PoE Budget: -
Flash: 4MB SPI NOR + 256 MB NAND
DRAM: 4 GB DDR4
LEDs: PWR, SYS, WAN, LAN, USB, FAN
Dimensions (W x D x H): 17.3 × 8.7 × 1.7 in (440 × 220 × 44 mm)
Protection: 4 kV surge protection
Enclosure: Steel
Mounting: Rack Mountable
Max Power Consumption:
26.36 W (with USB 3.0 connected)
19.12 W (without USB 3.0 connected)
|
|
| PERFORMANCE: |
Concurrent Session: 2,300,000
New Sessions/Second: 20,000
NAT (Static IP):
Upload: 9445.82 Mbps
Download: 9449.26 Mbps
NAT (DHCP):
Upload: 9426.83 Mbps
Download: 9426.20 Mbps
NAT (PPPoE):
Upload: 9413.96 Mbps
Download: 9102.01 Mbps
NAT (L2TP):
Upload: 4230.62 Mbps
Download: 4169.53 Mbps
NAT (PPTP):
Upload: 3933.86 Mbps
Download: 3821.97 Mbps
64 Byte Packet Forwarding Rate:
Upload: 1080 Mbps
Download: 1030 Mbps
IPsec VPN Throughput:
SHA1-AES256: 2140.45 Mbps
SHA2-AES256: 2080.20 Mbps
OpenVPN: 1665.64 Mbps
L2TP VPN Throughput:
Unencrypted: 5013.50 Mbps
Encrypted: 2274.74 Mbps
PPTP VPN Throughput:
Unencrypted: 3933.86 Mbps
Encrypted: 3821.97 Mbps
SSL VPN Throughput: 1511.10 Mbps
66 Byte Packet Forwarding Rate: -
1,518 Byte Packet Forwarding Rate:
Upload: 9970 Mbps
Download: 9970 Mbps
|
|
BASIC FUNCTIONS:
|
WAN Connection Type:
Static/Dynamic IP
PPPoE
PPTP
L2TP
6to4 Tunnel
Pass-Through
Mobile Broadband: 4G/3G modem for backup via USB port
MAC Clone: Modify WAN/LAN MAC Address*4
DHCP:
DHCP Server/Client
DHCP Address Reservation
Multi-net DHCP
Multi-IP Interfaces
IPv6 WAN Connection
VLAN: 802.1Q VLAN
IPTV: IGMP v2/v3 Proxy
|
|
ADVANCED FUNCTIONS:
|
ACL: IP/Port/Protocol/Domain Name Filtering
Advanced Routing:
Static Routing
Policy Routing
Bandwidth Control:
IP/Port-based Bandwidth Control
Guarantee & Limited Bandwidth
Load Balance:
Intelligent Load Balance
Application Optimized Routing
Link Backup (Timing*5, Failover)
Online Detection
NAT:
One-to-One NAT*5
Multi-Net NAT
Virtual Server
Port Triggering*5
NAT-DMZ
FTP/H.323/SIP/IPSec/PPTP ALG
UPnP
Security:
SPI Firewall
VPN Passthrough
FTP/H.323/PPTP/SIP/IPsec ALG
DoS Defense, Ping of Death
Local Management
Session Limit IP-based Session Limit
|
|
| VPN: |
SSL VPN:
SSL VPN Server
SSL VPN Client
500 OpenVPN Tunnels
IPsec VPN:
300 IPSec VPN Tunnels
LAN-to-LAN, Client-to-LAN
Main, Aggressive Negotiation Mode
DES, 3DES, SHA1, SHA2, AES128, AES192, AES256 Encryption Algorithm
IKE v1/v2
MD5, SHA1 Authentication Algorithm
NAT Traversal (NAT-T)
Dead Peer Detection (DPD)
Perfect Forward Secrecy (PFS)
PPTP VPN:
PPTP VPN Server
PPTP VPN Client (32)*6
300 Tunnels (Shared with L2TP)
PPTP with MPPE Encryption
L2TP VPN:
L2TP VPN Server
L2TP VPN Client (32)*6
300 Tunnels (Shared with PPTP)
L2TP over IPSec
OpenVPN:
OpenVPN Server
OpenVPN Client (10)*6
110 OpenVPN Tunnels
|
|
SECURITY:
|
Filtering:
WEB Group Filtering*5
URL Filtering
Web Security*5
ARP Inspection:
Sending GARP Packets*5
ARP Scanning*5
IP-MAC Binding*5
Attack Defense:
TCP/UDP/ICMP Flood Defense
Block TCP Scan (Stealth FIN/Xmas/Null)
Block Ping from WAN
Access Control: Source/Destination IP Based Access Control
|
|
| AUTHENTICATION: |
Web Authentication:
No Authentication
Simple Password*2
Hotspot (Local User / Voucher2 / SMS2 / Radius*2)
External Radius Server
External Portal Server*2
Facebook Check-In*2
Instagram Follow*2
|
|
| MANAGEMENT: |
Omada App: Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management:
Omada Hardware Controller (OC300)
Omada Hardware Controller (OC200)
Omada Software Controller
Omada Cloud-Based Controller
Cloud Access: Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
Service: Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe)
Maintenance:
Web Management Interface
Remote Management
Export & Import Configuration
SNMP v1/v2c/v3
Diagnostics (Ping & Traceroute)*5
NTP Synchronize*5
Syslog Support
Zero-Touch Provisioning: Yes. Requiring the use of Omada Cloud-Based Controller.
Management Features:
Automatic Device Discovery
Intelligent Network Monitoring
Abnormal Event Warnings
Unified Configuration
Reboot Schedule
Captive Portal Configuration
|
|
OTHERS:
|
Certification: CE, FCC, RoHS
Package Contents:

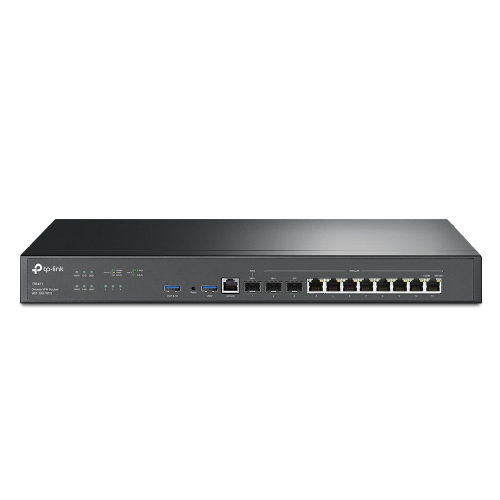

Omada 10G Multi-WAN Security Gateway ER8411
Power Cord
Rack-Mount Kit
Quick Installation Guide
System Requirements:
Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10/11, MAC OS, NetWare, UNIX or Linux
Environment:
Operating Temperature: 0–40 ? (32–104 ?)
Storage Temperature: -40–70 ? (-40–158 ?)
Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensing
|
