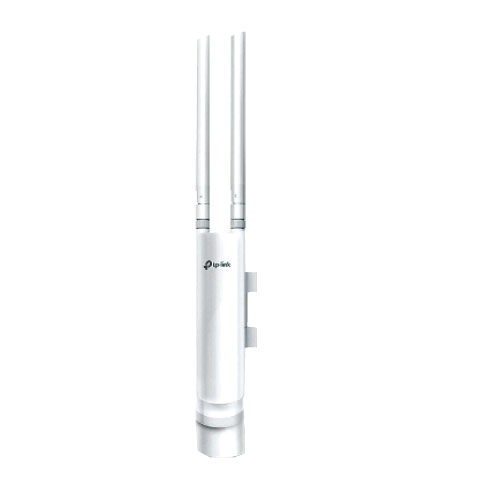

TP-Link 1200 AP Outdoor L DB W/MNG PoE

Item #

NWACGTP06

Brand

TP-Link

Model

EAP225-OUTDOOR

Color

White

Warranty

5 Year /1 Year OTC /4 Year MFG

Condition

Retail Box

If out of stock

3 to 5 Days

Add On Products

TP LINK 1350 AP CEIL/WALL DB W/MNG POE

NWACGTP05

1000' Cat6e Solid UTP Outdoor Db 600MHz

CABCAT2005U

Tenda 5 Port Gb POE Switch 63W

NS05JTA01

Tenda 8 Port Gb POE 92W+1C 6KV VLAN

NS08JTA02

Product Description

Complete In Room Wi-Fi Coverage AC1200 Wireless MU-MIMO Gigabit Indoor/Outdoor Access Point

Features
Durable, weatherproof enclosure for outdoor Wi-Fi applications
Up to 1200Mbps1 with 2×2 MIMO technology
Omada Mesh Technology enables wireless connectivity between APs for extended range, making wireless deployments more flexible and convenient
Supports Seamless Roaming to smooth the video playbacks and voice calls when moving between locations
High transmission power and high gain antennas provide a long-range coverage area
Cloud centralized management and Omada app for ultra convenience and easy management
Captive portal provides a convenient method for guest authentication
Facebook Wi-Fi and SMS authentication help to boost your business
802.3af/Passive PoE (PoE Adapter Included) compatible and simple mounting design allow for flexible deployment and convenient installation

Interface	1x Gigabit Ethernet RJ-45 port
Button	Reset
Power Supply	802.3af PoE and 24 Passive PoE(PoE injector included)
Power Consumption	10.5W
Dimensions ( W x D x H )	8.5 × 1.8 × 1.1in. (215 × 46 × 27 mm)
Antenna	2.4GHz: 2 × 3dBi 5GHz: 2 × 4dBi
Weatherproof Enclosure	IP65
Mounting	Pole/Wall mount (mounting kit included)
Wireless Standards	IEEE 802.11a/b/g/n/ac
Frequency	2.4GHz, 5GHz
Signal Rate	802.11ac: 5G:6.5 Mbps to 867Mbps(MCS0-MCS9,NSS = 1 to 2 VHT20/40/80) 2.4G:78Mbps to 300Mbps (MCS8-MCS9 VHT20/40, NSS=1 to 3) 802.11n: 6.5 Mbps to 300 Mbps (MCS0-MCS15, VHT 20/40) 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps 802.11b: 1, 5.5, 11Mbps 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
Wireless Functions	Multiple SSIDs(Up to 16 SSIDs, 8 for each band) Enable/Disable Wireless Radio Automatic Channel Assignment Transmit Power Control (Adjust Transmit Power on dBm) QoS(WMM) MU-MIMO Airtime Fairness Beamforming Band Steering Load Balance Rate Limit Reboot Schedule Wireless Schedule Wireless Statistics based on SSID/AP/Client
Wireless Security	Captive Portal Authentication Access Control Wireless Mac Address Filtering Wireless Isolation Between Clients SSID to VLAN Mapping Rogue AP Detection 802.1X Support
Transmission Power	23dBm, max. (2.4GHz) 22dBm, max. (5GHz)
Omada App	Yes
Web-based Management	Yes
Package Contents	AC1200 Wireless MU-MIMO Gigabit Indoor/Outdoor Access Point Passive PoE Injector Power Cord Mounting Kits Installation Guide Waterproof Rubber Insert Waterproof Antenna
