Tenda Outdoor CPE 5Ghz AC 12DBi AP

Product Description

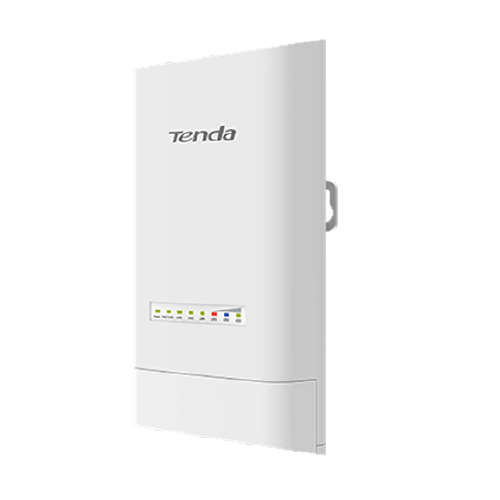

OS3 5GHz 12dBi 11AC 867Mbps Outdoor CPE
What it does
OS3 5GHz Outdoor CPE is designed to PtP&P2MP solution for video surveillance transmission and wireless broadband access. Adopts of 11ac wireless technology, the maximum wireless rate can be up to 867Mbps. It features with 12dBi dual polarization directional antenna to provide an efficient way to pick up and maintain a stable long range connection.

TD-MAX--Tenda TDMA proprietary protocol
TD-MAX is Tenda TDMA (Time Division Multiple Access) proprietary protocol to improve performance and capacity for wireless P2MP outdoor application scenarios. In outdoor environment, the CPE use highly directional antennas to connect to the Basestation from distances that can span several kilometers. the CPE can't sense each other, they become "hidden nodes”and cannot coordinate access to the wireless channel. Thus the Basestation experiences frequent collisions from stations transmitting simultaneously. As the network scales, these collisions build up exponentially, increasing latency and lowering throughput. With TD-MAX, it coordinate all the data transmission and allocates time to active clients to provide greater noise immunity performance when compared to the conventional 802.11 CSMA/CA (Carrier Sense Multiple Access / Collision Avoidance) protocol.

Auto-bridge technology enable it to easy setup
OS3 supports auto-bridge technology, It enables the CPE or basestation in factory default settings to connect to each other automaticaly after the device is powered on. It is very useful for the person who is not familiar with network knowledge, especially for CCTV surveillance transmission application.

Auto-bridge technology enable it to easy setup
OS3 supports auto-bridge technology, It enables the CPE or basestation in factory default settings to connect to each other automaticaly after the device is powered on. It is very useful for the person who is not familiar with network knowledge, especially for CCTV surveillance transmission application.

Model	OS3
Dimension	193*109*61mm
Deployment	Pole/Wall Mount
Application Scenarios	PtP and PtMP wireless connection for Privated ISP access or CCTV Surveillance
Frequency Range	5GHz
Compliant Standards	IEEE 802.11a/n/ac
Private TDMA Protocol	TD-MAX
Maximum Wireless Rate	867Mbps
Interfaces	4*10/100 LAN Port
Antennas Gain	12dbi
Antenna Beamwidth	Horizontal: 30° Vertical: 30° Elevation: 30°
Reset Button	1
Power Consumption	4.7W
Waterproof Level	IP65
LED Indicator	Power,PoE/LAN1,LAN2,LAN3,LAN4LED1,LED2,LED3
Power Method	12V 1A Passive PoE 12V 1A DC
Lightning Protection	6000V
Passive PoE	Passive power over ethernet via PoE/LAN (+4,5pins -7,8pins ) up to 60 meters
Voltage range:	9-13V DC
Reception Sensitivity	11a 6Mbps -92dBm±1.5dBm 11n MCS7 HT20 -72dBm±1.5dBm 11ac MCS9 HT80 -64dBm±1.5dBm
Operating mode	AP/Station/WISP/P2MP/WDS Repeater/Router
Enable/Disable Wireless Radio	Support
SSID Hidden	Support
Wireless Client isolation	Support
SSID Isolation	Support
Channel Bandwidth	20/40/80MHz
Weak Signal Client Limitation	Support
Wireless Access Control	Support
Client Limitation For SSID	Support
WMM Capable    APSD Capable VPN Pass-Through PPTP,L2TP Firmware upgrade Backup/Restore Configuration Username Managerment	Support
Wireless Security	64/128 WEP,WPA-PSK,WPA2-PSK,WPA&WPA2-PSK,WPA,WPA2
Transparent Bridge	Support
VLAN Tagging for SSID	Support
DHCP Server	Support
Package Contents	1*5GHz 12dBi 11AC 867Mbps Outdoor CPE 1*Power Adapter 1*PoE Injector 1*Quick Installation Guide
Environment	Operation Temperature    -30? ~ 60? Storage Temperature    -40? ~ 70? Operating Humidity    10%~90% non-condensing Storage Humidity    10%~90% non-condensing Default login IP    192.168.2.1
