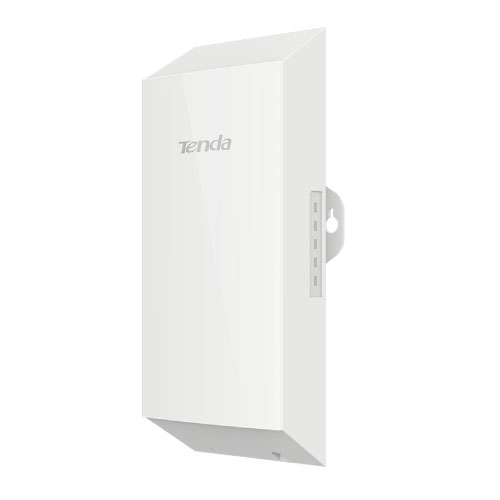

Tenda Outdoor CPE 2.4Ghz AP 12DBI

Product Description

O1   2.4GHz 12dBi Outdoor O3
2.4GHz Outdoor CPE is designed to WISP CPE solutions and long distance wireless network solutions for video surveillance and data transmission. It features with 12dBi directional antenna to provide an efficient way to pick up and maintain a stable signal for a wireless network. Adopt of auto-bridging technology,two CPE can connect to each other automatically to make it easy to setup.

What it does
O33 2.4GHz Outdoor CPE is designed to WISP CPE solutions and long distance wireless network solutions for video surveillance and data transmission. It features with 12dBi directional antenna to provide an efficient way to pick up and maintain a stable signal for a wireless network. Adopt of auto-bridging technology,two CPE can connect to each other automatically to make it easy to setup.
Main Features

    • 2.4GHz 11n 300Mbps
    • 12dbi directional antenna
    • IP64 waterproof enclosure
    • AP,Station,WISP operating mode supported
    • Up to 60 meters of flexible deployment with included PoE Injector


5KM+ Wireless Data Transmission
O1 integrates with a 12dBi directional antenna to provide an optimized transmission quality. It picks up and maintains a stable signal for a wireless network connection ranging up to 5000 meters.

Auto-bridge For Two Device
CPE3 adopts of auto-bridge technology,two cpe can connect to each other when you power on them face to face. It is very easy to setup.

Professional Outdoor Design
Equipped with IP64 waterproof enclouse and high quality hardware design, O3 can work in various weather conditions, such as sunshine, rainfall or extremely low/high temperature environment .

Multiple Application Scenarios
Long-Distance Wireless Connection
One work as AP mode and another work as Station mode to create a long distance wrieless connecton for video surveillance and data transmission.
WISP(Client+Router) Mode
Wirelessly connect to WISP station/hotspot to share Internet to local wireless and wired network.

Smart Signal Indicator LED
Three signal LED Lights represent the currently signal strength that CPE3 receives from peer device.It is helpful to find the right location to deploy the device and achieve a better performance.

Easy to Manage
O1 also comes with a centralized management software that helps users easily manage all the devices in their network from a single computer--CPE Assistant.

Product Information
Model	CPE3
Dimension	193.5*80*67.5mm
Deployment	Pole Mount/Wall Mount
Application Scenarios	PtP and PtMP wireless connection for Privated ISP access or CCTV Surveillance
Hardware
Frequency Range	2.4GHz
Compliant Standards	IEEE 802.11b/g/n
Maximum Wireless Rate	300Mbps
Antenna Polarization	Dual Polarization
Antennas Gain	12dbi
Antenna Beamwidth	Horizontal: 60° Vertical: 60°
GND	/
Reset Button	1*Reset Button
Power Consumption	2.6W
Waterproof Level	IP64
LED Indicator	PoE/LAN,WiFi, LED1,LED2,LED3
Power Method	9V0.6A Passive PoE 9V0.6A DC
Lightning Protection	/
Passive PoE	Passive power over ethenet via PoE/LAN (+4,5pins -7,8pins) Voltage range: 9-13.8V DC
Reception Sensitivity	11b 1Mbps -92dBm±1.5dBm 11n MCS0: -92±1.5dBm 11n MCS7: -72±1.5dBm
Software
Managed By Controller	PC Software CPE Assistant
Operating mode	AP/Station/WISP
Enable/Disable Wireless Radio	Support
SSID Hidden	Support
Wireless Client isolation	Support
SSID Isolation	Support
Channel Bandwidth	20/40MHz
Wireless Access Control	Support
Weak Signal Client Limitation	Support
Transmission Power	Adjustable power by 1dBm
Wireless Security	64/128 WEP,WPA-PSK,WPA2-PSK,WPA&WPA2-PSK,WPA,WPA2
VLAN Tagging for SSID	Support
VPN Pass-Through	PPTP,L2TP
Support	Schedule Reboot - Page Timeout - Ping Watchdog - Dyndns - noip, dyndns.org - Firmware upgrade - Backup/Restore Configuration - Transparent Bridge - APSD Capable - WMM Capable
Package Contents	1*2.4GHz 11n 8dBi 300Mbps outdoor CPE O1 1*Power Adapter 1*PoE Injector 1*Quick Installation Guide
Certification	FCC/CE/RoHS
Operation Environments	Operation Temperature -30? ~55 ? Storage Temperature -40? ~ 70? Operating Humidity 10%~90% non-condensing Storage Humidity 10%~90% non-condensing
