Tenda AX DB AP w/Cloud

Product Description

Tenda

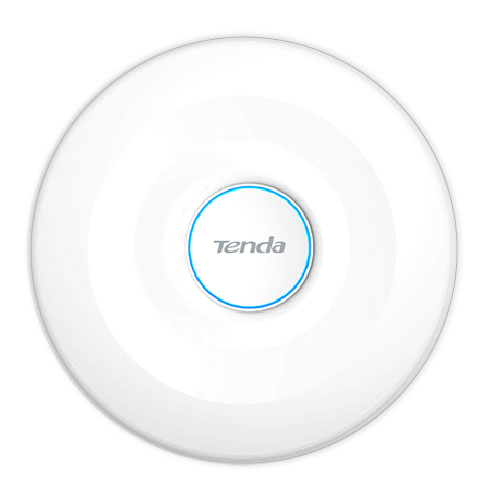

802.11AX Dual-Band Long Range Access Point
Up to 3000 Mbps dual-band data rate
The new WPA3 encryption mode safeguards your network security
2.4 GHz band 2x2 MIMO with a radio rate of 574 Mbps
5 GHz band 2x2 MIMO with a radio rate of 2402 Mbps
Power input with 802.3at PoE

3 Gbps Wi-Fi, 2.5 times higher rate
Both the 2.4 GHz and the 5 GHz radio bands support the new Wi-Fi 6 standard and the concurrent Wi-Fi rate is as high as 3 Gbps, 2.5 times that of the last-generation of AP (AC1200).

Higher capacity
Supporting OFDMA, SR, and MU-MIMO, 802.11ax greatly improves the system capacity compared with the last generation 802.11ac. With the TWT technology, AP can uniformly schedule the wakening and sleep of clients, significantly reducing client conflicts and unnecessary wakeups, and therefore is suitable for high-density crowd scenarios where large numbers of clients are deployed.

More than 20% wider Wi-Fi coverage
With the long OFDM symbol transmission mechanism and 2 MHz narrowband transmission, the 802.11ax protocol significantly reduces packet loss rate and noise interference, and improves the receiving sensitivity of clients. In addition, I29 adopts a high-specification RF amplifying circuit, greatly widening the Wi-Fi coverage.

Strong anti-interference capability
Supporting BSS coloring, dynamic CCA threshold and power control, the 802.11ax protocol significantly reduces the channel interference in high-density scenarios and improves the utilization rate of spectrum resources, improving the anti-interference capability compared with 802.11ac.

Higher security
The Wi-Fi 6 AP supports the new-generation WPA3 Wi-Fi encryption protocol. Under the WPA3 encryption protocol, even the simple password cannot be cracked, greatly enhancing the security of Wi-Fi networks.

Intelligent roaming protocol
Supporting the intelligent roaming technology based on the 802.11kv protocol, I29 enables wireless clients to automatically connect to AP with a better signal, effectively enhancing the user experience.

Standard PoE supported, easy installation and deployment
The efficient components and excellent hardware design guarantee the standard 802.3at power supply to 802.11ax dual-band gigabit AP, making installation and deployment simpler.

Centralized management
The ProFi Controller makes it easy to manage and monitor the whole ProFi series in a real-time manner and cloud services enable a remote and secure access free from the restrictions of device location.

Product Information
Model	I29
Category	Ceiling
Dimensions	F250.6*55 mm
Hardware Specifications
Frequency band	2.4 GHz, 5 GHz
Wireless standards	IEEE 802.11a/b/g/n/ac/ax
2.4 GHz data rate	1-574 Mbps
5 GHz data rate	6-2402 Mbps
Channel width	20 MHz/40 MHz/80 MHz/160 MHz
MU-MIMO	2X2 MU-MIMO
Ethernet port	One 10/100/1000 Mbps Ethernet Port One 10/100/1000 Mbps Ethernet Port (PoE)
Button	1*Reset
LED indicator	RGB
Max. power consumption	15.74 W
Power supply standard	IEEE 802.3at PoE
Concurrent clients	254
Antenna gain	4*4 dBi
2.4 GHz Max. output power	29+/-1.5 dBm
5 GHz Max. output power	29+/-1.5 dBm
802.11b RX sensitivity	-97 dBm
2.4 GHz 802.11n (MCS7) RX sensitivity	-75 dBm
5 GHz 802.11a RX sensitivity	-95 dBm
5 GHz 802.11n (MCS7) RX sensitivity	-75 dBm
Software Specifications
Operating mode	AP
Hide SSID	Supported
Max. No. of SSID	2.4 GHz: 7 5 GHz: 4
OFDMA	Supported
Beamforming	Supported
	Supported
802.11 k/v	Supported
WEP, WPA, WPA2	Supported
WPA-PSK	AES/TKIP
WPA2-PSK	AES/TKIP
WPA3-ASE	AES
VLAN tagging for SSID	Supported
Diagnostics tool	Ping, Traceroute
Reboot at specified interval- Scheduled reboot	Supported
