A18 Boost AC1200 WiFi for whole home
Gigabit WiFi Repeater Works Well with Optical Routers

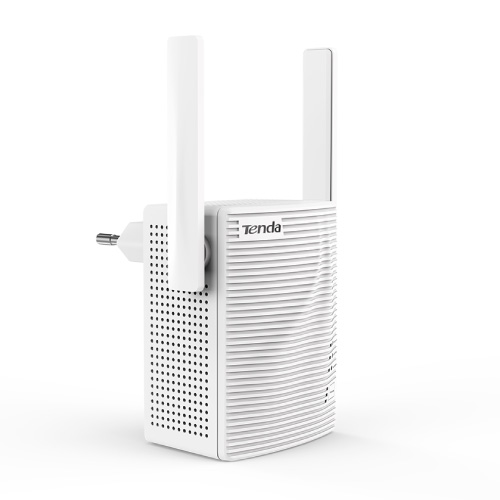

AC1200 Dual Band WiFi Repeater Tenda A18
Works Well with Optical Routers for Strong Wall Penetration Capacity on 5 GHz Band
Ordinary 11AC routers performs poorly on wall penetration on 5 GHz band. With A18 to repeat 5 GHz WiFi network, data transmission rate on 5 GHz band can be up to 867 Mbps, giving a full play to your 100 Mbps optical broadband. By resolving the weakness of WiFi coverage on 5 GHz band, A18 brings you with fast internet experience at home.
Scan Quality Channel Automatically for Stable, Reliable and Fast Internet ExperienceEquipped with high quality PCB dual band antennas, the radio frequency distance between antennas of A18 has been improved to um. Each antenna provides both 2.4 GHz and 5 GHz WiFi networks, and extends WiFi networks both on 2.4 GHz and 5 GHz bands . A18 can automatically select high quality channel for you when signal fluctuates, and keeps your devices online even in the move by switching to the network with stronger signals automatically.
Visual Signal LED Guides You to Find the Best PositionGuided by the color of Signal LED, you can easily find the best position for your repeater according to your actual network environment. Blue indicates good connection , and red indicates bad connection.
Configure Your Repeater via Smart Phones/TabletsSimplicity is practical. You can configure your repeater via smart phones or Tablets
Elegant and Compact AppearanceFeatured with a small size, it is easy for you to plug A18 into your electrical outlet.
One More 100 Mbps LAN port for Wired ExtensionSignal is full but the internet is still inaccessible? Want to watch online TV programs on a LCD TV with LAN port but without WiFi adapter?
A18 can relieve you from these two painstaking. By connecting the Ethernet cable from your router to the LAN port of A18, you can extend your existing WiFi network in wired manner. To watch online TV programs, you just need to connect the LAN port of A18 that has extended successfully to the LAN port of your LCD TV.
More functionsHide SSID, Extend your existing WiFi network via WPS button, Mix WPA/WPA2 encryption mode
Hardware
|
Interfaces
|
1*10/100Mbps RJ45
|
|
Antenna Type
|
2 * External 2dBi dual-band omni-directional antenna
|
|
Button
|
1 * WPS Button
1 * Reset Button
|
|
LED Indicator
|
1 * Signal LED
1 * WPS LED
1 * Power LED
|
|
Power Supply
|
9V0.8A, built-in
|
|
| Power Consumption |
5.2W (max power consumption) |
Wireless |
Wireless Standard
|
IEEE802.11b,IEEE 802.11g, IEEE 802.11n, IEEE 802.11a,IEEE 802.11ac
|
|
Frequency
|
5 GHz(11ac)
2.4 GHz
|
|
Data Rate
|
5GHz: Up to 867Mbps
2.4GHz: Up to 300Mbps
|
|
RSSI
|
2.4 GHz
11b-1M:-97dBm
11g-54M:-76dBm
11n-20M-MCS7:-74dBm
11n-40M-MCS7:-72dBm
5 GHz:
11a-6M:-95dBm
11n-20M-MCS7:-74dBm
11n-40M-MCS7:-72dBm
11ac-80M-MCS9:-63dBm
|
|
Transmission Power
|
<20dBm
|
|
Wireless Modes
|
Repeater Mode,Access Point Mode
|
|
Wireless Security
|
Default encryption mode: Mix WPA-PSK/WPA2-PSK
WPA algorithm: TKIP
|
Others
|
Certification
|
CE, FCC?RoHS
Plug Type
US?EU?UK?BR?AU?AR
|
|
Package Contents
|
1 * AC1200 Dual Band WiFi Repeater
1 * Quick Installation Guide
|
|
System Tool
|
Firmware upgrade, Restore factory settings, Login password, and Reboot
|
|
Environment
|
Operating Temperature: 0?~40?
Storage Temperature: -40?~70?
Operating Humidity: (10~90)% RH, non-condensing
|
|
