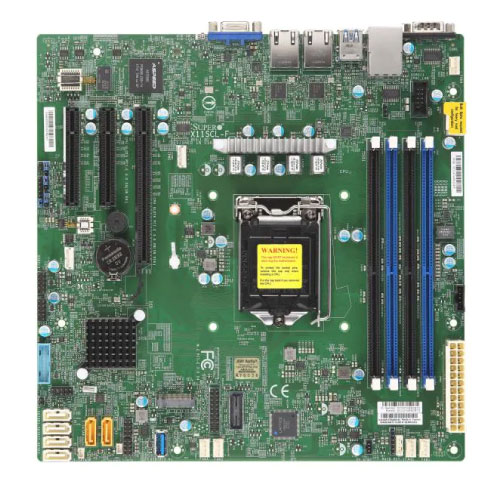

Physical Stats
|
Form Factor
microATX
Dimension
9.6" x 9.6" (24.38cm x 24.38cm)
|
|
| Processor |
CPU
8th/9th Generation Intel® Core™ i3/Pentium®/Celeron® Processor, Intel® Xeon® E-2100 Processor, Intel® Xeon® E-2200 Processor
Single Socket LGA-1151 (Socket H4) supported, CPU TDP supports Up to 95W TDP
Core
Up to 6 cores, 12 threads
Note
BIOS version 1.0b or above is required to support Intel® Xeon® E-2200 and 9th Generation Intel® Core™ i3/Pentium®/Celeron® Processors
|
|
System Memory
|
Memory Capacity
4 DIMM slots
Up to 128GB Unbuffered ECC UDIMM, DDR4-2666MHz
Memory Type
2667/2400/2133MHz SDRAM 72-bit,
DIMM Sizes
4GB, 8GB, 16GB, 32GB
Memory Voltage
1.2V
Error Detection
Corrects single-bit errors
|
|
On-Board Devices
|
Chipset
Intel® C242
SATA
Intel® C242 controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10
IPMI
ASPEED AST2500
Graphics
1 ASPEED AST2500 BMC port(s)
Network Controllers
Dual LAN with 1GbE with Intel® I210
|
|
| Input / Output |
USB
6 USB 2.0 port(s) (4 via header; 2 rear)
5 USB 3.1 Gen1 port(s) (2 via header; 1 type A; 2 rear type A)
Video Output
1 VGA port(s)
Serial Port
2 COM Port(s) (1 header; 1 rear)
DOM
2 SATA DOM (Disk on Module) power connector support
TPM
1 TPM Header
|
|
Expansion Slots
|
PCI-E
1 PCI-E 3.0 x8 (in x16 slot),
2 PCI-E 3.0 x4 (in x8 slot)
M.2
M.2 Interface: 1 PCI-E 3.0 x4
Form Factor: 2280/22110
Key: M-Key
|
|
| System BIOS |
BIOS Type
256MB UEFI
BIOS Features
ACPI 6.0
SMBIOS 2.7
Plug and Play (PnP)
RTC (Real Time Clock) Wakeup
UEFI 2.7
USB Keyboard support
PCI 3.0
|
|
| Management |
Software
SuperDoctor® 5, SUM, KVM with dedicated LAN, SSM, IPMI2.0
Power Configurations
Power-on mode for AC power recovery, ACPI Power Management
|
|
PC Health Monitoring
|
Voltage
VBAT, System level control, Supports system management utility, Monitors CPU voltages, Chipset Voltage, Chassis intrusion header, 5 -fan status, +5V standby, +5V, +3.3V, +12V, Memory Voltages
LED
UID/Remote UID
CPU / System Overheat LED
Temperature
Monitoring for CPU and chassis environment
CPU thermal trip support
Thermal Monitor 2 (TM2) support
PECI
FAN
5x 4-pin fan headers (up to 5 fans)
Thermal control tachometer fan connectors
PWM fan speed control
5 fans with tachometer status monitoring
Overheat LED indication
Other Features
WOL, UID, M.2 NGFF connector, Dual Cooling Zones, CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, Chassis intrusion header, Chassis intrusion detection, ACPI power management
|
|
| Operating Environment |
Operating Temperature Range
0°C - 50°C (32°F - 122°F)
Non-Operating Temperature Range
-40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range
8% - 90% (non-condensing)
Non Operating Relative Humidity Range
5% - 95% (non-condensing)
|
