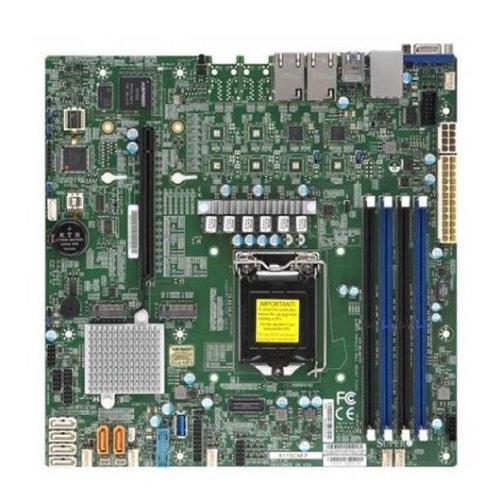

Supermicro LGA-1151 (Socket H4} MATX

Supermicro LGA-1151 (Socket H4} MATX

Item #

MBIX11S

Brand

Supermicro

Model

MBD-X11SCM-F-B

Warranty

1 Year

Condition

Retail Box

If out of stock

3 to 5 Days

Add On Products

16GB DDR-4 3200 MHz ECC Kingston

16GB DDR-4 3200 MHz ECC Kingston

MMSD442

Product Description


General Information	Manufacturer Supermicro Computer, Inc

Manufacturer Part Number	MBD-X11SCM-F-B

Main Specifications	Dimensions & Weight / Depth 24.38 cm Dimensions & Weight / Width 24.38 cm Header / Brand Supermicro Mainboard / Chipset Type Intel C246 Mainboard / Compatible Processors Celeron Core i3 Pentium Xeon E-2100 series Xeon E-2200 series Mainboard / Processor Socket LGA1151 Socket Networking / Data Link Protocol Ethernet Fast Ethernet Gigabit Ethernet Packaged Quantity 1 Service & Support / Type 3-year warranty Video Output / Graphics Processor ASPEED AST2500 Video Output / Type Graphics adapter

Expansion / Connectivity	Expansion Slots 1 x CPU 4 x DIMM 288-pin (1.2 V) 1 x PCIe 3.0 x16 Interfaces 2 x LAN (Gigabit Ethernet) 2 x USB 3.1 Gen 1 2 x USB 2.0 1 x VGA Internal Interfaces 1 x serial - header 2 x USB 2.0 - header 1 x USB 3.1 Gen 1 - Type A 2 x USB 3.1 Gen 1 - header Power Connectors 24-pin main power connector, 8-pin ATX12V connector Storage Interfaces SATA-600 -connectors: 6 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 SATA-600 / PCIe 3.0 -connectors: 1 x M.2 PCIe 3.0 -connectors: 1 x M.2

Features	BIOS Features UEFI BIOS, SMBIOS 2.7 support, IPMI 2.0 support, ACPI 6.0 support Hardware Monitoring Chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage, CPU core voltage Sleep / Wake Up RTC (real-time clock) wake up

General	Chipset Type Intel C246 Compatible Processors Pentium, Celeron, Core i3, Xeon E-2100 series, Xeon E-2200 series (Maximum TDP 95 Watt) Max Processors Qty 1 Processor Socket LGA1151 Socket Product Type Motherboard - micro ATX

Graphics	Graphics Controller ASPEED AST2500

LAN	Network Controller Intel I210-AT Network Interfaces 2 x Gigabit Ethernet

Miscellaneous	Cables Included 2 x Serial ATA cable Compliant Standards Plug and Play Depth 24.38 cm Included Accessories I/O back plate Package Type Bulk Width 24.38 cm

Supported RAM	Bus Clock 2400 MHz, 2133 MHz, 2666 MHz Max Size 128 GB Registered or Buffered Unbuffered Supported RAM Integrity Check ECC Technology DDR4

If you can't find what you're looking for here, please contact your sales representative.
