StarTech Module 4x2.5 6Gbps SAS/SATA

Product Description

StarTech Module 4x2.5 6Gbps SAS/SATA

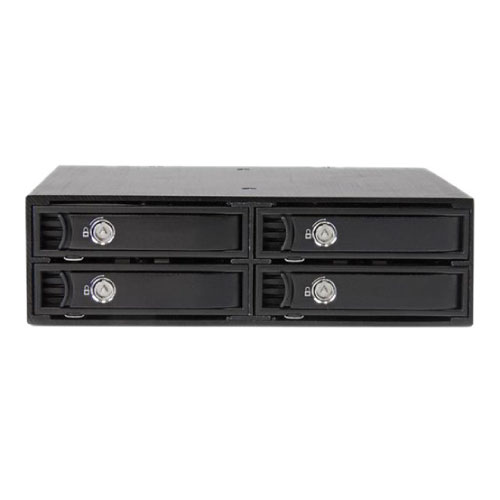

Hot swap with ease by installing four SSDs/HDDs into one 5.25in bay. Now it's easy to drive share and enhance the storage capabilities of your server or PC. This mobile rack backplane lets you install four 2.5in SATA or SAS solid-state or hard disk drives into a single 5.25in bay and quickly hot swap them between systems. It's ideal for systems integrators and administrators who are looking for flexible management of their data storage.
The mobile rack backplane is engineered to protect your valuable data and provide reliable performance. The aluminum housing is designed for enhanced heat dissipation, while two 40mm fans improve air flow to minimize heat build-up and ensure optimum operating temperature.

General	Device Type    Storage enclosure Enclosure Color    Black
Chassis	Supported Devices / Modules Qty    4 Supported Drives    SATA-600 / SAS-2
Processor	CPU    No CPU
Hard Drive	Type    Hot-swap Capacity    0 Interface Type    SATA 6Gb/s / SAS 6Gb/s
Expansion / Connectivity	Expansion Bays    4 (total) / 4 (free) x hot-swap - 2.5" Interfaces    4 x SATA 6Gb/s - 7 pin Serial ATA 4 x SAS 6Gb/s - 7 pin Serial ATA 1 x - 4 pin internal power
Miscellaneous	Features    Key lock, LED indicator, built-in cooling fan Cables Included    4 x Serial ATA cable - 13 ft MTBF    30,000 hours Compliant Standards    FCC, RoHS Included Accessories    4 x drive trays, 20 x drive mounting screws, 8 x backplane mounting screws
Dimensions & Weight	Width    5.7 in Depth    6 in Height    1.7 in Weight    26.1 oz
Manufacturer Warranty	Service & Support    Limited warranty - 2 years
Environmental Parameters	Min Operating Temperature    32 °F Max Operating Temperature    131 °F Humidity Range Operating    5 - 65%
Compatibility Information	Designed for    P/N: SATBP125VP, SATSASBP125 Packaging Info Package Weight    2.3 lb Box Dimensions (LxWxH)    8.8 x 7.8 x 3.3"
