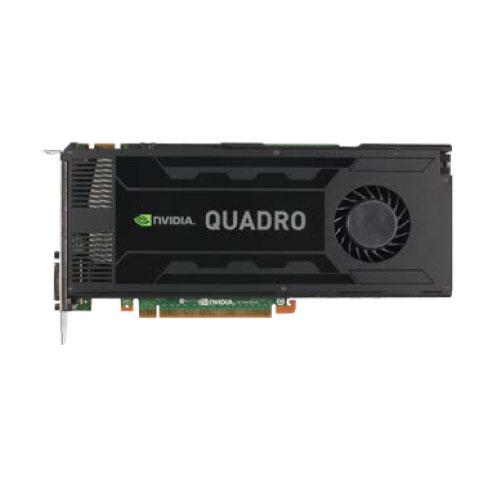

Nvidia K4000 Vga Card Tested Pulls

Product Description

Supercharged NVIDIA Kepler™ Architecture Performance for Graphics-Intensive Professional Workflows
The NVIDIA® Quadro® K4000 graphics board offers ultra-fast performance and visual quality enhancing technical innovations that take a wide range of leading professional applications to the next level of performance and fluid interactivity. You get 3GB of GDDR5 GPU memory, 768 SMX CUDA™ parallel processing cores, the ability to drive up to four simultaneous displays, and full Shader Model 5 compatibility; all in a single slot form factor requiring significantly less power than competing graphics products.


Two DisplayPort 1.2 Connectors
DisplayPort with Audio
DVI-I Dual-Link connector
VGA Support1
Professional 3D Support1
NVIDIA 3D Vision Pro1
Compatible
NVIDIA GPUDirect Support
Software Compatible
HDCP Support
NVIDIA Mosaic2

GPU Memory	3GB GDDR5
Memory Interface	192-bit
Memory Bandwidth	134.0GB/s
CUDA Cores	768
System Interface	PCI Express 2.0 x16
Max Power Consumption	80W
Thermal Solution	Ultra-quiet active fansink
Form Factor	4.376” H × 9.50” L, Single Slot, Full Height
Display Connectors	DVI-I DL + 2x DP1.2 Max Simultaneous Displays 3 direct, 4 DP1.2, 2 Win XP
Max DP 1.2 Resolution	3840 × 2160 at 60Hz
Max DVI-I DL Resolution	2560 × 1600 at 60Hz
Max DVI-I SL Resolution	1920 × 1200 at 60Hz
Max VGA Resolution	2048 × 1536 at 85Hz
Graphics	APIs Shader Model 5.0, OpenGL 4.4, DirectX 11
