HOME /LGA-1200-E-2300-2XLAN-3XPCIE-M2-MATX-3Y

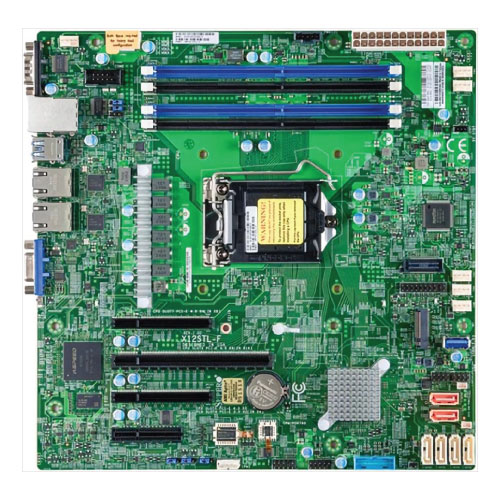

LGA-1200 E-2300 2XLAN 3xPCIE M.2 MATX 3Y

LGA-1200 E-2300 2XLAN 3xPCIE M.2 MATX 3Y

Item #

MBIX32SR3Y

Brand

Supermicro

Model

MBD-X12STL-F-O [3YR)

Warranty

3 Year /1 Year OTC /2 Year MFG

Condition

Retail Box

If out of stock

3 to 5 Days

Add On Products

Intel Xeon E-2324G 4C 3.1GHz LGA-1200

Intel Xeon E-2324G 4C 3.1GHz LGA-1200

CPIXE2324

Intel Xeon E-2334 4C 3.4GHz LGA-1200

Intel Xeon E-2334 4C 3.4GHz LGA-1200

CPIXE2334

Intel Xeon E-2336 6C 2.9GHz LGA-1200

Intel Xeon E-2336 6C 2.9GHz LGA-1200

CPIXE2336

Intel Xeon E-2374G 4C 3.7GHz LGA-1200

Intel Xeon E-2374G 4C 3.7GHz LGA-1200

CPIXE2374

Product Description


Supported CPU	CPU Socket Type LGA 1200 CPU Type Supports 10th Generation Intel Pentium Processor, Intel Xeon E-2300 Processor Number of Processor Support 1

Chipsets	North Bridge Intel C252

Memory	Number of DDR4 Slots 4 x 288-pin DDR4 Standard DDR4 3200 Maximum Memory Supported 128GB ECC Supported Yes

Expansion Slots	PCI Express 4.0 x16 1 PCI Express x8 1 x PCI Express 4.0 x8 1 x PCI Express 4.0 x4 (in x8 Slot) PCI Express x4 1 x PCI-E 3.0 x2 (in x4 slot)

Storage Devices	SATA 6 x SATA 6.0Gb/s M.2 M.2 Interface: 1 PCI-E 3.0 x4 Form Factor: 2280/22110 Key: M-Key

Onboard Video	Onboard Video Chipset ASPEED AST2600 BMC Onboard LAN LAN Chipset Intel I210 LAN Speed 10/100/1000Mbps Max LAN Speed 10/100/1000Mbps

Rear Panel Ports	Back I/O Ports 2 1GbE LAN ports 4 USB 2.0 port(s) (2 rear; 2 via header) 5 USB 3.2 Gen1 port(s) (2 via header; 2 rear; 1 type A) 1 VGA D-Sub Connector port(s) 2 COM Port(s) (1 header; 1 rear)

Dimensions	Form Factor Micro ATX Dimensions (W x L) 9.6" x 9.6"
