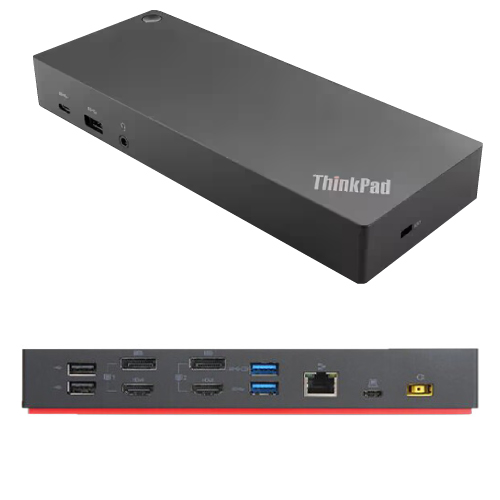

LENOVO THINKPAD USB-C DOCKING STATION

Product Description

The ThinkPad Hybrid USB-C with USB-A dock expands the capabilities of most any laptop, new or old, making it perfect for enterprise customers with mixed-PC or shared-desk environments. Featuring enterprise-class manageability, like PXE boot and MAC address pass-through, the ThinkPad Hybrid USB-C with USB-A docking station offers three high-speed USB 3.1 ports and includes a USB-C to USB-A adapter to provide port replication to non-Lenovo or USB-C laptop computers. This ThinkPad Hybrid dock also supports dual monitor setups, up to dual UHD 4K resolution, and rapid charging for ThinkPad notebooks.

Compatible add-on accessories:

ThinkPad 135W AC Adapter (Slim tip) (4X20E50558)
Lenovo Dual Slim-tip Adapter (4X20W69154)
Lenovo Hybrid USB-C with USB-A Cable (4X90U90618)
Lenovo HDMI to HDMI cable (4X91D96900)
Kensington MicroSaver 2.0 Twin Cable Lock from Lenovo (4XE0N80915)
Lenovo Docking Station Mounting Bracket G2-24" (4XF1A14358)
Lenovo Docking Station Mounting Bracket G2-27" (4XF1A29616)
Lenovo Docking Station Mounting Bracket G2-32" (4XF1A29617)

Color	Black
Max Number of External Monitors	2
Weight	480 g (1.05 lbs)
Refresh Rate	DisplayPort: 3840 x 2160 @ 60 Hz, HDMI: 3840 x 2160 @ 60 Hz, Bundle DisplayPort 1 & DisplayPort 2 to the monitor: 5120 x 2880 @ 60 Hz,, "Maximum resolution" refers to what can be supported by the dock. Actual resolution will vary by laptop.
AC Plug	American Standard Plug Type B
Hardware Requirements	Machine with full function USB-C port or USB 3.0 Port
Warranty Type	CRU
Output Power	90 W
Brand	ThinkPad
OS Requirements	Windows 11, Windows 10, Windows 7
Agency Approvals	BSMI, CB, CE, cULus, EAC, FCC/ICES, Israel SII, KCC, LoA, NOM, RCM, Serbia Kvalitet, TUV Mark, Ukraine DoC, VCCI
Audio Ports	1 x 3.5 mm Stereo/Mic Combo Port
Charging Port	ThinkPad Slim-tip Port
USB Ports	1 x USB-C (Data, 5V/3A power), 3 x USB 3.1 Gen2 (10 Gbps, 1 always-on), 2 x USB 2.0
Video Ports	2 x DisplayPort 1.2, 2 x HDMI
Package Type	Brown box
Warranty Period	3 Years
Maximum Operating Temperature	35 degrees Celsius (95 degrees Fahrenheit)
Input Power	135 W Power Button    Yes Power Delivery    Yes
Compatibility	E580, E480, E470, L580, L480, L470, L380, L380 Yoga, Lenovo Tablet 10, Miix 520-12IKB, T580, T570, T480, T480s, T470, T470s, T460, ThinkPad 25, X1 Carbon Gen 6, X1 Carbon Gen 5, X1 Yoga Gen 3, X1 Yoga Gen 2, X1 Tablet Gen 3, X1 Tablet Gen 2, 13 Gen 3 Windows, X280, X270, X260
Other Information	• 3 x USB 3.1 gen2 (10Gbps, 1x always-on USB charging) • 2 x USB2.0 • 1 x USB-C port (Data,5V 3A power) • 1 x Gigabit Ethernet • 2 x Display Port • 2 x HDMI Port • 1 x Stereo/Mic Combo Audio Port
