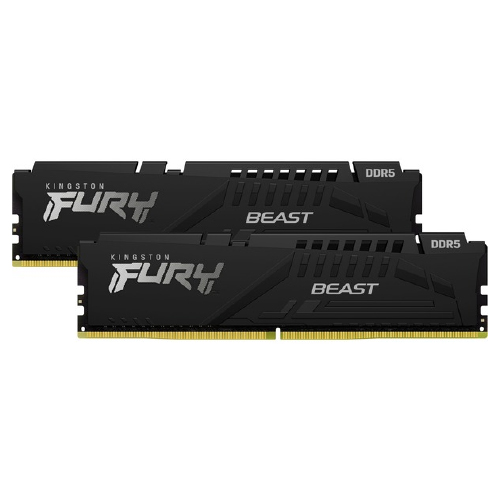

Kingston Fury Beast DDR5 64GB KIT PC5200

Product Description

Kingston FURY KF552C40BBK2-64
    Power Supply: VDD = 1.1V Typical
    VDDQ (I/O Buffer Supply): 1.1V Typical
    VPP (Programmable Termination Voltage): 1.8V Typical
    VDDSPD (Serial Presence Detect Voltage): 1.8V to 2.0V
    On-Die ECC (Error-Correcting Code)
    UL Rating: 94 V - 0
    Operating Temperature: 0°C to +85°C
    Storage Temperature: -55°C to +100°C

Configuration:	Kit of two 4G x 64-bit (32GB) DDR5-5200 CL40 SDRAM memory modules
Module Type:	Type: 2Rx8
Module Composition:	Each module is based on sixteen 2G x 8-bit FBGA components
Compatibility:	Supports Intel® Extreme Memory Profiles (Intel® XMP) 3.0
Total Kit Capacity:	64GB
Tested Performance:	DDR5-5200 at a low latency timing of 40-40-40 at 1.25V
SPD Settings:	Programmed to JEDEC standard latency DDR5-4800 timing of 40-39-39 at 1.1V
DIMM Type:	288-pin with gold contact fingers
Height:	1.37” (34.9mm) with heatsink
CAS Latency (CL):	40 cycles
Row Cycle Time (tRCmin):	48ns (min.)
Row Active Time (tRASmin):	32ns (min.)
