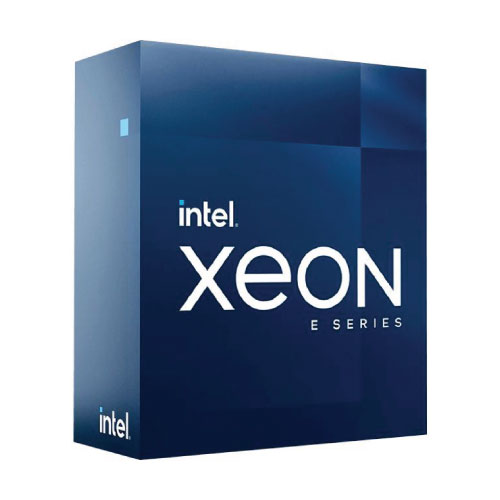

Intel Xeon E-2334 4C 3.4GHz LGA-1200

Product Description

Intel® Xeon® E Processors Keep Small Businesses Running
Make sure your business data is accessible and protected with a professional grade server. Watch the video to learn how an entry server can power a range of business applications and provide the agility to respond to customers quickly while supporting enhanced security.

CPU Specifications	Total Cores 4 Total Threads 8 Max Turbo Frequency 4.80 GHz Intel® Turbo Boost Technology 2.0 Frequency‡ 4.80 GHz Processor Base Frequency 3.40 GHz Cache 8 MB Intel® Smart Cache Bus Speed 8 GT/s TDP 65 W
Supplemental Information	Embedded Options Available No
Memory Specifications	Max Memory Size (dependent on memory type) 128 GB Memory Types DDR4-3200 Max # of Memory Channels 2 Intel® Optane™ Persistent Memory Supported No ECC Memory Supported ‡ Yes
Expansion Options	Scalability1S Only PCI Express Revision 4.0 Microprocessor PCIe Revision Gen 4 PCI Express Configurations ‡ Up to 1x16+1x4, 2x8+1x4, 1x8+3x4 Max # of PCI Express Lanes 20
Package Specifications	Sockets Supported FCLGA1200 Max CPU Configuration1 TJUNCTION 100 °C Package Size37.5 mm x 37.5 mm
Advanced Technologies	Intel® Turbo Boost Technology ‡ 2.0 Intel® Hyper-Threading Technology ‡ Yes Intel® Transactional Synchronization Extensions No Intel® 64 ‡ Yes Instruction Set 64-bit Instruction Set Extensions Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2, Intel® AVX-512 Idle States Yes Enhanced Intel SpeedStep® Technology Yes Thermal Monitoring Technologies Yes
Security & Reliability	Intel vPro® Eligibility ‡ Intel vPro® Platform Intel® AES New Instructions Yes Secure Key Yes Intel® Software Guard Extensions (Intel® SGX) Yes with Intel® SPS Maximum Enclave Page Cache (EPC) Size for Intel® SGX0.5 GB Intel® Memory Protection Extensions (Intel® MPX) Yes Intel® OS GuardYes Intel® Trusted Execution Technology ‡ Yes Execute Disable Bit ‡ Yes Intel® Boot Guard Yes Intel® Virtualization Technology (VT-x) ‡ Yes Intel® Virtualization Technology for Directed I/O (VT-d) ‡ Yes Intel® VT-x with Extended Page Tables (EPT) ‡ Yes
