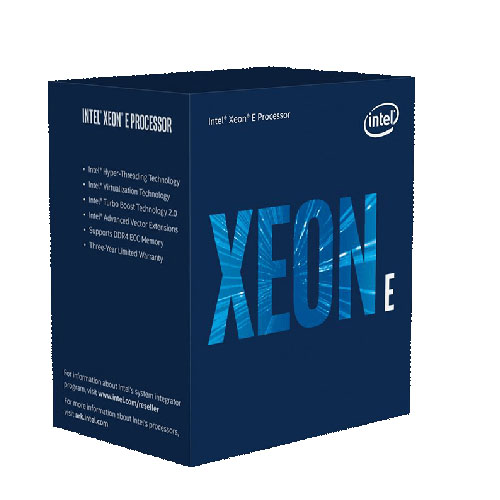

Intel Xeon E-2324G 4C 3.1GHz LGA-1200

Item #

CPIXE2324

Brand

Intel

Model

BX80708E2324G

Warranty

3 Year

Condition

Retail Box

If out of stock

3 to 5 Days

Add On Products

Microsoft Win Srv 2022 16 Core OEM

SFMS2022S

Microsoft WIN SRV 2022 5 License USR

SFMS2022UC

Product Description

Intel® Xeon® E Processors Keep Small Businesses Running

Make sure your business data is accessible and protected with a professional grade server. Watch the video to learn how an entry server can power a range of business applications and provide the agility to respond to customers quickly while supporting enhanced security.

Model
Brand    Intel
Series    Intel Xeon E
Name    Xeon E-2324G
Model    BX80708E2324G


CPU Specifications	Total Cores 4 Total Threads 4 Max Turbo Frequency 4.60 GHz Intel® Turbo Boost Technology 2.0 Frequency‡ 4.60 GHz Processor Base Frequency 3.10 GHz Cache 8 MB Intel® Smart Cache Bus Speed 8 GT/s TDP 65 W

Supplemental Information	Embedded Options Available No Memory Specifications Max Memory Size (dependent on memory type) 128 GB Memory Types DDR4-3200 Max # of Memory Channels 2 Intel® Optane™ Persistent Memory Supported No ECC Memory Supported ‡ Yes

Processor Graphics	Processor Graphics ‡ Intel® UHD Graphics P750 Graphics Base Frequency 350 MHz Graphics Max Dynamic Frequency 1.30 GHz Graphics Video Max Memory 64 GB Execution Units 32 4K Support Yes, at 60Hz Max Resolution (HDMI)‡ 4096 x 2160 @60 Hz Max Resolution (DP)‡ 5120 x 3200 @ 60 Hz Max Resolution (eDP - Integrated Flat Panel)‡ 5120 x 3200 @ 60 Hz DirectX* Support 12.1 OpenGL* Support 4.5 Intel® Quick Sync Video Yes Intel® InTru™ 3D Technology Yes Intel® Clear Video HD Technology Yes Intel® Clear Video Technology Yes # of Displays Supported ‡1 Device ID0x4C9A

Expansion Options	Scalability1S Only PCI Express Revision 4.0 Microprocessor PCIe Revision Gen 4 PCI Express Configurations ‡ Up to 1x16+1x4, 2x8+1x4, 1x8+3x4 Max # of PCI Express Lanes 20

Package Specifications	Sockets Supported FCLGA1200 Max CPU Configuration1 TJUNCTION 100 °C Package Size37.5 mm x 37.5 mm

Advanced Technologies	Intel® Turbo Boost Technology ‡ 2.0 Intel® Hyper-Threading Technology ‡ No Intel® Transactional Synchronization Extensions No Intel® 64 ‡ Yes Instruction Set 64-bit Instruction Set Extensions Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2, Intel® AVX-512 Idle States Yes Enhanced Intel SpeedStep® Technology Yes Thermal Monitoring Technologies Yes

Security & Reliability	Intel vPro® Eligibility ‡ Intel vPro® Platform Intel® AES New Instructions Yes Secure Key Yes Intel® Software Guard Extensions (Intel® SGX) Yes with Intel® SPS Maximum Enclave Page Cache (EPC) Size for Intel® SGX0.5 GB Intel® Memory Protection Extensions (Intel® MPX) Yes Intel® OS GuardYes Intel® Trusted Execution Technology ‡ Yes Execute Disable Bit ‡ Yes Intel® Boot Guard Yes Intel® Virtualization Technology (VT-x) ‡ Yes Intel® Virtualization Technology for Directed I/O (VT-d) ‡ Yes Intel® VT-x with Extended Page Tables (EPT) ‡ Yes
