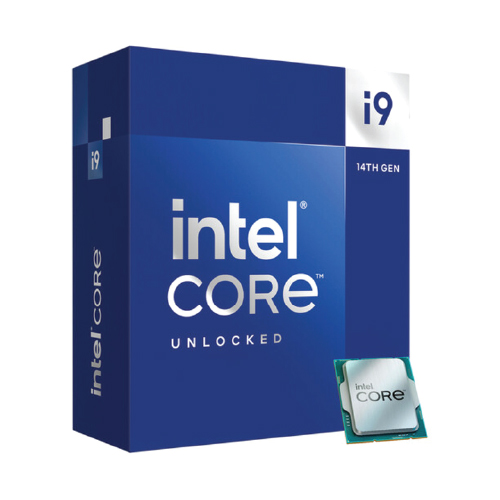

Intel i9-14900 5.8 GHz 36M SKT 1700 24C

Item #

CPI9XKP4

Brand

Intel

Model

BX8071514900

Warranty

3 Year

Condition

Retail Box

If out of stock

3 to 5 Days

Add On Products

Asus 1700 H610M 2XDDR4 2PCIe HDMI MATX

MBIT6102

Asus 1700 H610M 2XDDR4 2PCIe HDMI MATX

MBIT610A

ASUS 1700 H610I 2XDDR4 1PCIE HDMI M ITX

MBIT610I

Asus 1700 B660M 4XDDR4 3PCIe Raid MATX

MBIT660C

ASUS 1700 B760M 4XDDR5 3PCIe Raid MATX

MBIT760A

Product Description

Title

Essentials
Product Collection Intel® Core™ i9 Processors (14th gen)
Code Name Products formerly Raptor Lake
Vertical Segment Desktop

Processor Number i9-14900


CPU Specifications	Total Cores 24 # of Performance-cores 8 # of Efficient-cores 16 Total Threads 32 Max Turbo Frequency 5.8 GHz Intel® Thermal Velocity Boost Frequency 5.8 GHz Intel® Turbo Boost Max Technology 3.0 Frequency 5.6 GHz Performance-core Max Turbo Frequency 5.4 GHz Efficient-core Max Turbo Frequency 4.3 GHz Performance-core Base Frequency 2 GHz Efficient-core Base Frequency 1.5 GHz Cache 36 MB Intel® Smart Cache Total L2 Cache 32 MB Processor Base Power 65 W Maximum Turbo Power 219 W

Memory Specifications	Max Memory Size (dependent on memory type) 192 GB Memory Types Up to DDR5 5600 MT/s Up to DDR4 3200 MT/s Max # of Memory Channels 2 Max Memory Bandwidth 89.6 GB/s ECC Memory Supported Yes

GPU Specifications	GPU Name‡ Intel® UHD Graphics 770 Graphics Base Frequency 300 MHz Graphics Max Dynamic Frequency 1.65 GHz Graphics Output eDP 1.4b, DP 1.4a, HDMI 2.1 Execution Units 32 Max Resolution (HDMI) 4096 x 2160 @ 60Hz Max Resolution (DP) 7680 x 4320 @ 60Hz Max Resolution (eDP - Integrated Flat Panel)‡ 5120 x 3200 @ 120Hz DirectX Support* 12 OpenGL Support* 4.5 OpenCL Support* 3.0 Multi-Format Codec Engines 2 Intel® Quick Sync Video Yes Intel® Clear Video HD Technology Yes # of Displays Supported 4

Expansion Options	Direct Media Interface (DMI) Revision 4.0 Max # of DMI Lanes 8 Scalability 1S Only PCI Express Revision 5.0 and 4.0 PCI Express Configurations Up to 1x16+4, 2x8+4 Max # of PCI Express Lanes 20

Package Specifications	Sockets Supported FCLGA1700 Max CPU Configuration 1 Thermal Solution Specification PCG 2020C TJUNCTION 100°C Package Size 45.0 mm x 37.5 mm Max Operating Temperature 100°C

Advanced Technologies	Intel® Gaussian & Neural Accelerator 3.0 Intel® Thread Director Yes Intel® Deep Learning Boost (Intel® DL Boost) on CPU Yes Intel® Speed Shift Technology Yes Intel® Adaptive Boost Technology Yes Intel® Thermal Velocity Boost Yes Intel® Turbo Boost Max Technology 3.0 Yes Intel® Turbo Boost Technology 2.0 Intel® Hyper-Threading Technology Yes Intel® 64 Yes Instruction Set 64-bit Instruction Set Extensions Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2 Idle States Yes Enhanced Intel SpeedStep® Technology Yes Thermal Monitoring Technologies Yes Intel® Volume Management Device (VMD) Yes

Security & Reliability	Intel vPro® Eligibility Intel vPro® Enterprise, Intel vPro® Essentials, Intel vPro® Platform Intel® Threat Detection Technology (TDT) Yes Intel® Active Management Technology (AMT) Yes Intel® Standard Manageability (ISM) Yes Intel® Remote Platform Erase (RPE) Yes Intel® One-Click Recovery Yes Intel® Hardware Shield Eligibility Yes Intel® Control-Flow Enforcement Technology Yes Intel® Total Memory Encryption - Multi Key Yes Intel® AES New Instructions Yes Secure Key Yes Intel® OS Guard Yes Intel® Trusted Execution Technology Yes Execute Disable Bit ‡ Yes Intel® Boot Guard Yes Mode-based Execute Control (MBEC) Yes Intel® Stable IT Platform Program (SIPP) Yes Intel® Virtualization Technology with Redirect Protection (VT-rp) Yes Intel® Virtualization Technology (VT-x) ‡ Yes Intel® Virtualization Technology for Directed I/O (VT-d) ‡ Yes Intel® VT-x with Extended Page Tables (EPT) Yes
