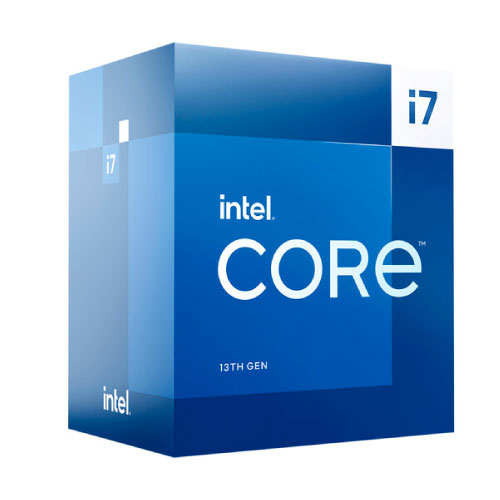

Intel Core i7-13700 2.1 GHz 16-Core LGA 1700 Processor. This 13th generation desktop processor builds upon the Hybrid Core architecture and Intel 7 process by fitting 16 cores— four more than the previous generation— onto a single processor while still supporting the LGA 1700 socket. Designed to provide high performance, the Core i7-13700 features eight low-voltage Efficient-cores that handle background tasks for multitasking while the eight 2.1 GHz Performance-cores provide speed for demanding applications and games. The built-in Intel Thread Director ensures that the two work seamlessly together by dynamically and intelligently assigning workloads to the right core at the right time.
With 30MB of cache and a 5.2 GHz Turbo Boost Max 3.0 frequency, this processor is made to handle intense workloads. The Core i7-13700 also supports PCI Express 5.0 and dual-channel DDR5 ECC memory at 5600 MHz.
The Core i7-13700 features integrated Intel UHD 770 Graphics. Please note that a thermal solution is NOT included. This processor is backed by a 3-year warranty.
Hybrid Core Design
Performance-cores provide the speed to handle high-end games and demanding applications while low-priority and background tasks are handled by the processor's Efficient-cores for multitasking.
Intel Thread Director
The Intel Thread Director is built into the CPU's cores, working with the operating system to ensure each of the 24 threads are assigned to the right core at the right time.
PCIe 4.0 & 5.0
This processor supports up to four PCIe 4.0 and sixteen PCIe 5.0 lanes, delivering 20 lanes in total for exceptional data throughput with compatible devices.
Integrated Graphics
Driven by Intel Xe architecture, the integrated Intel UHD 770 Graphics delivers fast, rich 3D performance for high-quality visuals with support for either one 7680 x 4320 resolution 8K monitor or up to four 3840 x 2160 resolution 4K displays with high-dynamic range.
Gaussian & Neural Accelerator 3.0
Gaussian and Neural Accelerator 3.0 (GNA) technology helps with noise suppression while enhancing background blurring during video chats.
|
General
|
CPU Model Intel Core i7-13700 (13th Gen)
CPU Socket LGA 1700
Manufacturing Process 10 nm
Maximum CPU Configuration 1S
Maximum Number of PCIe Lanes 16 (Revision 5.0)
4 (Revision 4.0)
Unlocked No
|
|
| Performance |
Number of Cores 16 (8 x P-Cores + 8 x E-Cores)
Number of Threads 24
Base Clock Speed P-Core: 2.1 GHz
E-Core: 1.5 GHz
Maximum Boost Speed P-Core Turbo: 5.1 GHz
E-Core Turbo: 4.1 GHz
L3 Cache 30 MB
|
|
Memory Support
|
Maximum Capacity 128 GB
Memory Support DDR5 Up to 5600 MHz
DDR4 Up to 3200 MHz
ECC Memory Yes
Channel Architecture Dual Channel
Maximum Memory Bandwidth 89.6 GB/s
Optane Memory Support Yes
|
|
Power
|
Thermal Design Power (TDP) 65 W
Included Thermal Solution None
Maximum Temperature 212°F / 100°C
Thermal Monitoring Technologies Yes
|
|
| Technology |
AES Support Yes
Extension AVX 2.0, AVX-512, SSE 4.1/4.2
Instruction Set 64-Bit
Virtualization Yes: Intel VT-d, Intel VT-x, Intel VT-x with Extended Page Tables (EPT)
DMI DMI4 (16 GT/s)
vPro Support Yes
Performance Technologies Deep Learning Boost, Gaussian and Neural Accelerator 3.0, Hyper-Threading, Intel Thread Director, SpeedShift, SpeedStep, Stable Image Platform Program, Turbo Boost 2.0, Turbo Boost Max 3.0
Security Technologies Control-Flow Enforcement (CET), Device Protection with Boot Guard, Execute Disable Bit, MBE (Mode-Based Execute) Control, OS Guard, Secure Key, Software Guard Extensions, Threat Detection Technology (TDT), Trusted Execution Technology
Video Technologies Clear Video, Clear Video HD, InTru 3D, Quick Sync Video
Integrated Graphics Intel UHD Graphics 770
Maximum Resolution Support 7680 x 4320 at 60 Hz
Supported APIs DirectX: 12
OpenGL: 4.5
Number of Displays 4
Output Support DisplayPort, HDMI
Base Clock Speed 300 MHz
Maximum Boost Speed 1.45 GHz
|
|
Packaging Info
|
Package Weight 1.015 lb
Box Dimensions (LxWxH) 5.7 x 4.3 x 3.1"
|
