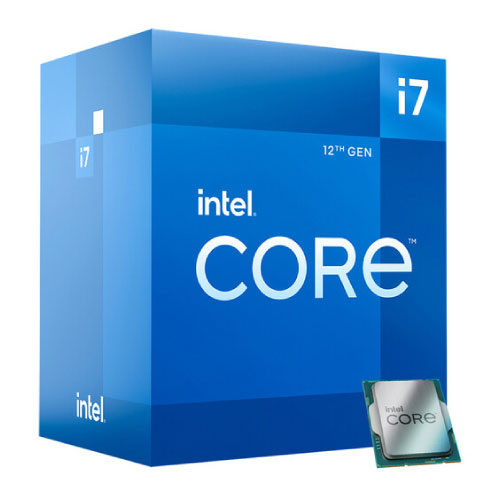

Intel i7-12700 2.10 G 25MB SKT 1700 12C

Intel i7-12700 2.10 G 25MB SKT 1700 12C

Item #
CPI7XF9
Brand
Intel
Model
BX8071512700

Warranty
3 Year
Condition
Retail Box
If out of stock
3 to 5 Days
Add On Products
Product Description
Intel Core i7-12700 2.1 GHz 12-Core LGA 1700 Processor into your desktop computer system. Built using a Hybrid Core architecture with the Intel 7 process, this 12th generation desktop processor's 12 cores combine the performance of four Efficient cores and eight 2.1 GHz Performance cores. The low-voltage Efficient cores handle background tasks for multitasking while the Performance cores provide speed for demanding applications and games. The built-in Intel Thread Director ensures that the two work seamlessly together by dynamically and intelligently assigning workloads to the right core at the right time to maximize performance. Additionally, this processor has a 4.9 GHz Turbo Boost Max 3.0 frequency with 25MB of cache for fast and reliable performance. The Core i7-12700 also includes support for up to PCI Express 5.0 and dual-channel DDR5 ECC memory at 4800 MHz to help run and multitask a variety of demanding applications.

The Core i7-12700
features integrated Intel UHD 770 Graphics and includes an Intel Laminar RM1 thermal solution. The processor is compatible with Intel LGA 1700 socket motherboards and is backed by a 3-year warranty.

Hybrid Core Design
Background tasks are handled by the processor's Efficient cores for multitasking while the Performance cores provide the speed to handle high-end games and demanding applications.
Intel Thread Director
The Intel Thread Director is built into the CPU's cores, working with the operating system to ensure each of the 20 threads are assigned to the right core at the right time.
PCIe 4.0 & 5.0
This processor supports up to four PCIe 4.0 and sixteen PCIe 5.0 lanes, delivering 20 lanes in total for exceptional data throughput with compatible devices.
Integrated Graphics
Driven by Intel Xe architecture, the integrated Intel UHD 770 Graphics delivers fast, rich 3D performance for high-quality visuals with support for either one 7680 x 4320 resolution 8K monitor or up to four 3840 x 2160 resolution 4K displays with high dynamic range.
Intel Deep Learning Boost
Accelerates AI inference to improve performance for deep learning workloads.
Gaussian & Neural Accelerator 3.0
Gaussian and Neural Accelerator 3.0 (GNA) technology helps with noise suppression while enhancing background blurring during video chats.

Key Features
12 Cores & 20 Threads
2.1 GHz P-Core Clock Speed
4.9 GHz Maximum Turbo Frequency
LGA 1700 Socket
25MB Cache Memory
Dual-Channel DDR5-4800 ECC Memory
Integrated Intel UHD 770 Graphics
Hybrid Core Architecture
Includes Thermal Solution
12th Generation (Alder Lake)



CPU Model
Intel Core i7-12700 (12th Gen)

CPU Socket
LGA 1700

Manufacturing Process
10 nm

Maximum CPU Configuration
1S

Maximum Number of PCIe Lanes
16 (Revision 5.0)
4 (Revision 4.0)

Unlocked
No

Number of Cores
12 (8 x P-Cores + 4 x E-Cores)

Number of Threads
20

Base Clock Speed
P-Core: 2.1 GHz
E-Core: 1.6 GHz

Maximum Boost Speed
4.9 GHz
P-Core Turbo: 4.8 GHz
E-Core Turbo: 3.6 GHz

L3 Cache
25 MB

Memory Support
Maximum Capacity    128 GB
Memory Support    DDR4 3200 MHz
DDR5 4800 MHz
ECC Memory    Yes
Channel Architecture    Dual Channel
Maximum Memory Bandwidth    76.8 GB/s
Optane Memory Support    Yes

Power
Thermal Design Power (TDP)    65 W
Included Thermal Solution    Intel Laminar RM1 (180 W)
Maximum Temperature    212°F / 100°C
Thermal Monitoring Technologies    Yes

Technology
AES Support    Yes
Extension    AVX 2.0, AVX-512, SSE 4.1/4.2
Instruction Set    64-Bit
Virtualization    Yes: Intel VT-d, Intel VT-x, Intel VT-x with Extended Page Tables (EPT)
DMI    DMI4 (16 GT/s)
vPro Support    Yes
Performance Technologies    Deep Learning Boost, Gaussian and Neural Accelerator 3.0, Hyper-Threading, Intel Thread Director, SpeedShift, Stable Image Platform Program, Turbo Boost 2.0, Turbo Boost Max 3.0
Security Technologies    Control-Flow Enforcement (CET), Device Protection with Boot Guard, Execute Disable Bit, MBE (Mode-Based Execute) Control, OS Guard, Secure Key
Video Technologies    Clear Video, Clear Video HD, InTru 3D, Quick Sync Video

Integrated Graphics
Integrated Graphics
Intel UHD Graphics 770

Maximum Resolution Support
7680 x 4320 at 60 Hz

Supported APIs
DirectX: 12

OpenGL:
 4.5

Number of Displays
4

Output Support
eDP, DisplayPort, HDMI

Base Clock Speed
300 MHz

Maximum Boost Speed
1.5 GHz

Packaging Info
Package Weight
1.03 lb

Box Dimensions (LxWxH)
4.9 x 4.3 x 3.2"
