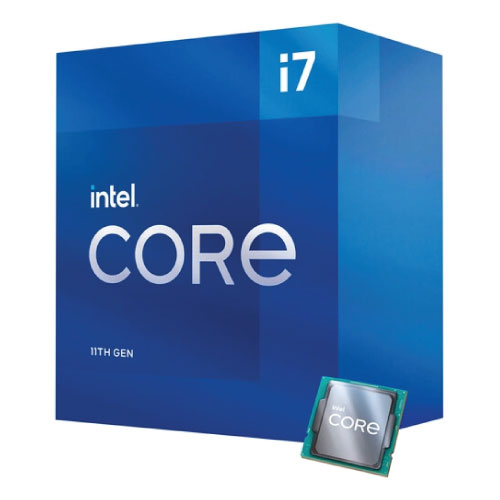

Power up your productivity, gaming, and content creation experiences by installing the Intel
Core i7-11700 2.5 GHz Eight-Core LGA 1200 Processor into your computer system. Built using a 14nm process, this
11th generation desktop processor features a base clock
frequency of 2.5 GHz and a 4.9 GHz Turbo Boost Max 3.0 frequency with 16MB of cache, eight cores, and sixteen threads for fast and reliable performance. The Core
i7-11700 also includes support for PCI Express 4.0 and dual-channel DDR4 memory at 3200 MHz to help run and multitask a variety of demanding applications and games using technologies such as built-in AI acceleration. Performance can be further enhanced by installing Intel Optane memory to cache frequently accessed data.
8 Cores & 16 Threads
2.5 GHz Clock Speed
4.9 GHz Maximum Turbo Frequency
LGA 1200 Socket
16MB Cache Memory
Integrated Intel UHD 750 Graphics
Dual-Channel DDR4-3200 Memory
Includes Thermal Solution
Supports Intel Optane Memory
11th Generation (Rocket Lake)
General
|
CPU Model
|
Intel Core i7-11700
|
|
CPU Socket
|
LGA 1200
|
|
Manufacturing Process
|
14 nm
|
|
Maximum CPU Configuration
|
1S
|
|
Maximum Number of PCIe Lanes
|
20 (Revision 4.0)
|
|
Unlocked
|
No
|
Performance
|
Number of Cores
|
8
|
|
Number of Threads
|
16
|
|
Base Clock Speed
|
2.5 GHz
|
|
Maximum Boost Speed
|
4.9 GHz
|
|
L3 Cache
|
16 MB
|
Memory Support
|
Maximum Capacity
|
128 GB
|
|
Memory Support
|
DDR4 2933, 3200 MHz
|
|
ECC Memory
|
No
|
|
Channel Architecture
|
Dual Channel
|
|
Maximum Memory Bandwidth
|
50 GB/s
|
Power
|
Thermal Design Power (TDP)
|
65 W
|
|
Included Thermal Solution
|
PCG 2019C
|
|
Maximum Temperature
|
212°F / 100°C
|
|
Thermal Monitoring Technologies
|
Yes
|
Technology
|
AES Support
|
Yes
|
|
Extension
|
AVX 2.0, AVX-512, SSE 4.1/4.2
|
|
Instruction Set
|
64-Bit
|
|
Virtualization
|
Yes: Intel VT-d, Intel VT-x, Intel VT-x with Extended Page Tables (EPT)
|
|
Graphics Chipset
|
Intel UHD Graphics 750
|
|
Maximum Resolution Support
|
5120 x 3200 at 60 Hz
|
|
Supported APIs
|
DirectX: 12
|
|
OpenGL:
|
4.5
|
|
Number of Displays
|
2
|
|
Maximum Shared Video Memory
|
64 GB
|
|
Output Support
|
DisplayPort, HDMI
|
|
Base Clock Speed
|
350 MHz
|
|
Maximum Boost Speed
|
1.3 GHz
|
|
Intel
|
DMI DMI3 (8 GT/s)
Optane Memory Support Yes
vPro Support Yes
Performance Technologies Deep Learning Boost, Gaussian and Neural Accelerator 2.0, Hyper-Threading, SpeedStep, Stable Image Platform Program, Turbo Boost 2.0, Turbo Boost Max 3.0
Security Technologies BIOS Guard, Device Protection with Boot Guard, Execute Disable Bit, Identity Protection, OS Guard, Secure Key
Video Technologies Clear Video, Clear Video HD, InTru 3D, Quick Sync Video
|
|
Packaging Info
|
Package Weight 0.7 lb
|
|
Box Dimensions
|
(LxWxH) 4.7 x 4.2 x 2.8"
|
