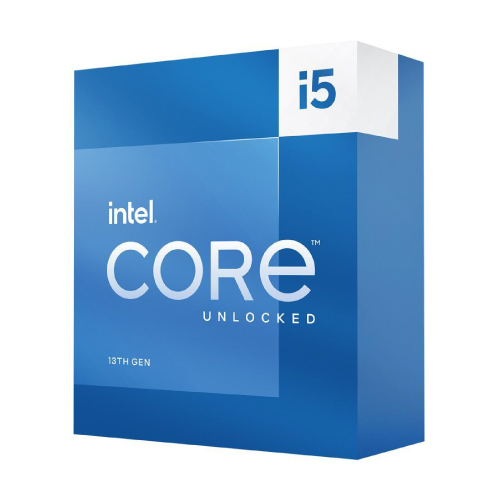

Intel i5-13600K 3.5 G 24MB SKT 1700 14C

Intel i5-13600K 3.5 G 24MB SKT 1700 14C

Item #
CPI5XN1
Brand
Intel
Model
BX8071513600K

Warranty
3 Year
Condition
Retail Box
If out of stock
3 to 5 Days
Add On Products
Product Description
Intel Core i5-13600K 3.5 GHz 14-Core LGA 1700 Processor. This 13th generation desktop processor builds upon the Hybrid Core architecture and Intel 7 process by fitting 14 cores— four more than the previous generation— onto a single processor while still fitting the LGA 1700 socket. Designed to provide strong performance for everyday tasks, the Core i5-13600K features eight low-voltage Efficient-cores that handle background tasks for multitasking while the six 3.5 GHz Performance-cores power applications and games. The built-in Intel Thread Director ensures that the two work seamlessly together by dynamically and intelligently assigning workloads to the right core at the right time.

With 24MB of cache and a 5.1 GHz Turbo Boost Max 2.0 frequency, this processor is made to handle a variety of applications. You can also overclock this processor for even greater performance. The Core i5-13600K also supports PCI Express 5.0 and dual-channel DDR5 ECC memory at 5600 MHz.

The Core i5-13600K features integrated Intel UHD 770 Graphics. Please note that a thermal solution NOT is included. This processor is backed by a 3-year warranty.

Hybrid Core Design
Performance-cores provide the speed to handle high-end games and demanding applications while low-priority and background tasks are handled by the processor's Efficient-cores for multitasking.
Intel Thread Director
The Intel Thread Director is built into the CPU's cores, working with the operating system to ensure each of the 20 threads are assigned to the right core at the right time.
PCIe 4.0 & 5.0
This processor supports up to four PCIe 4.0 and sixteen PCIe 5.0 lanes, delivering 20 lanes in total for exceptional data throughput with compatible devices.
Integrated Graphics
Driven by Intel Xe architecture, the integrated Intel UHD 770 Graphics delivers fast, rich 3D performance for high-quality visuals with support for either one 7680 x 4320 resolution 8K monitor or up to four 3840 x 2160 resolution 4K displays with high-dynamic range.
Gaussian & Neural Accelerator 3.0
Gaussian and Neural Accelerator 3.0 (GNA) technology helps with noise suppression while enhancing background blurring during video chats.
Intel Deep Learning Boost
Accelerates AI inference to improve performance for deep learning workloads.


General
CPU Model    Intel Core i5-13600K (13th Gen)
CPU Socket    LGA 1700
Manufacturing Process    10 nm
Maximum CPU Configuration    1S
Maximum Number of PCIe Lanes    16 (Revision 5.0)
4 (Revision 4.0)
Unlocked    Yes

Performance Number of Cores    14 (6 x P-Cores + 8 x E-Cores)
Number of Threads    20
Base Clock Speed    P-Core: 3.5 GHz
E-Core: 2.6 GHz
Maximum Boost Speed    P-Core Turbo: 5.1 GHz
E-Core Turbo: 3.9 GHz
L3 Cache    24 MB

Memory Support
Maximum Capacity    128 GB
Memory Support    DDR5 5600 MHz
DDR4 3200 MHz
ECC Memory    Yes
Channel Architecture    Dual Channel
Optane Memory Support    Yes

Power
Thermal Design Power (TDP)    125 W
Included Thermal Solution    None
Maximum Temperature    212°F / 100°C
Thermal Monitoring Technologies    Yes

Technology AES Support    Yes
Extension    AVX 2.0, AVX-512, SSE 4.1/4.2
Instruction Set    64-Bit
Virtualization    Yes: Intel VT-d, Intel VT-x, Intel VT-x with Extended Page Tables (EPT)
vPro Support    Yes
Performance Technologies    Deep Learning Boost, Gaussian and Neural Accelerator 3.0, Hyper-Threading, Intel Thread Director, SpeedShift, SpeedStep, Stable Image Platform Program, Turbo Boost 2.0
Security Technologies    Control-Flow Enforcement (CET), Device Protection with Boot Guard, Execute Disable Bit, MBE (Mode-Based Execute) Control, OS Guard, Secure Key, Software Guard Extensions, Threat Detection Technology (TDT), Trusted Execution Technology
Video Technologies    Clear Video, Clear Video HD, InTru 3D, Quick Sync Video

Integrated Graphics
Integrated Graphics    770
Maximum Resolution Support    7680 x 4320 at 60 Hz
Supported APIs    DirectX: 12
OpenGL: 4.5
Number of Displays    4
Output Support    DisplayPort, HDMI
Base Clock Speed    300 MHz
Maximum Boost Speed    1.45 GHz
