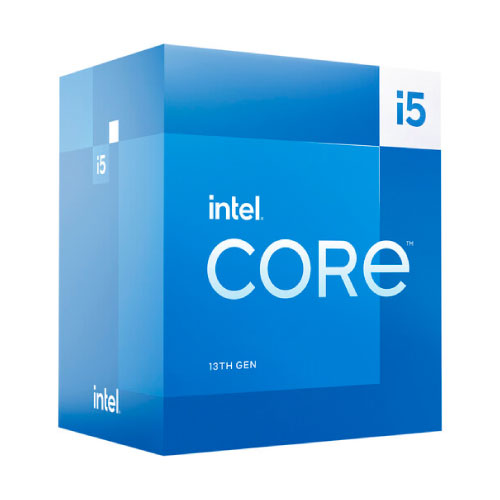

Intel i5-13400  2.5 G 20MB SKT 1700 10C

Intel i5-13400 2.5 G 20MB SKT 1700 10C

Item #
CPI5XN2
Brand
Intel
Model
BX8071513400

Warranty
3 Year
Condition
Retail Box
If out of stock
While Supplies Last
Add On Products
Product Description
Intel Core i5-13400 2.5 GHz 10-Core LGA 1700 Processor. This 13th generation desktop processor builds upon the Hybrid Core architecture and Intel 7 process by fitting 10 cores— four more than the previous generation— onto a single processor while still supporting the LGA 1700 socket. Designed to provide power-efficient performance for everyday tasks, the Core i5-13400 features four low-voltage Efficient-cores that handle background tasks for multitasking while the six 2.5 GHz Performance-cores power applications and games. The built-in Intel Thread Director ensures that the two work seamlessly together by dynamically and intelligently assigning workloads to the right core at the right time.

With 20MB of cache and a 4.6 GHz Turbo frequency, this processor is made to handle a variety of applications. The Core i5-13400 also supports PCI Express 5.0 and dual-channel DDR5 memory at 4800 MHz.

The Core i5-13400 features integrated Intel UHD 730 Graphics. This processor is backed by a 3-year warranty.

Hybrid Core Design
Performance-cores provide the speed to handle high-end games and demanding applications while low-priority and background tasks are handled by the processor's Efficient-cores for multitasking.

Intel Thread Director
The Intel Thread Director is built into the CPU's cores, working with the operating system to ensure each of the 16 threads are assigned to the right core at the right time.
PCIe 4.0 & 5.0
This processor supports up to four PCIe 4.0 and sixteen PCIe 5.0 lanes, delivering 20 lanes in total for exceptional data throughput with compatible devices.
Integrated Graphics
The integrated Intel UHD 730 Graphics delivers high-quality visuals with support for either one 7680 x 4320 resolution 8K monitor or up to four 3840 x 2160 resolution 4K displays.
Gaussian & Neural Accelerator 3.0
Gaussian and Neural Accelerator 3.0 (GNA) technology helps with noise suppression while enhancing background blurring during video chats.






General
CPU Model    Intel Core i5-13400 (13th Gen)
CPU Socket    LGA 1700
Manufacturing Process    10 nm
Maximum CPU Configuration    1S
Maximum Number of PCIe Lanes    16 (Revision 5.0)
4 (Revision 4.0)
Unlocked    No

Performance Number of Cores    10 (6 x P-Cores + 4 x E-Cores)
Number of Threads    16
Base Clock Speed    P-Core: 2.5 GHz
E-Core: 1.8 GHz
Maximum Boost Speed    P-Core Turbo: 4.6 GHz
E-Core Turbo: 3.3 GHz
L3 Cache    20 MB

Memory Support
Maximum Capacity    128 GB
Memory Support    DDR5 Up to 4800 MHz
DDR4 Up to 3200 MHz
ECC Memory    No
Channel Architecture    Dual Channel
Maximum Memory Bandwidth    89.6 GB/s
Optane Memory Support    Yes

Power
Thermal Design Power (TDP)    65 W
Included Thermal Solution    None
Maximum Temperature    212°F / 100°C
Thermal Monitoring Technologies    Yes

Technology AES Support    Yes
Extension    AVX 2.0, AVX-512, SSE 4.1/4.2
Instruction Set    64-Bit
Virtualization    Yes: Intel VT-d, Intel VT-x, Intel VT-x with Extended Page Tables (EPT)
DMI    DMI4 (16 GT/s)
vPro Support    No
Performance Technologies    Deep Learning Boost, Gaussian and Neural Accelerator 3.0, Hyper-Threading, Intel Thread Director, SpeedShift, SpeedStep, Turbo Boost 2.0
Security Technologies    Control-Flow Enforcement (CET), Device Protection with Boot Guard, Execute Disable Bit, MBE (Mode-Based Execute) Control, OS Guard, Secure Key, Software Guard Extensions, Threat Detection Technology (TDT), Trusted Execution Technology
Video Technologies    Clear Video, Clear Video HD, InTru 3D, Quick Sync Video

Integrated Graphics
Integrated Graphics    Intel UHD Graphics 730
Maximum Resolution Support    7680 x 4320 at 60 Hz
Supported APIs    DirectX: 12
OpenGL: 4.5
OpenCL: 3
Number of Displays    4
Output Support    DisplayPort, HDMI
Base Clock Speed    300 MHz
Maximum Boost Speed    1.45 GHz
