HOME /INTEL-I3-14100-350-GHZ-12MG-SKT-1700-4C

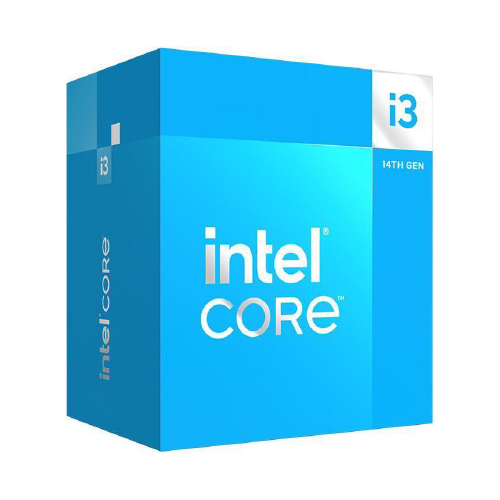

Intel i3-14100 3.50 GHz 12MG SKT 1700 4C

Item #

CPI3XW4

Brand

Intel

Model

BX8071514100

Warranty

3 Year

Condition

Retail Box

If out of stock

While Supplies Last

Add On Products

Asus 1700 H610M 2XDDR4 2PCIe HDMI MATX

MBIT6102

Asus 1700 H610M 2XDDR4 2PCIe HDMI MATX

MBIT610A

ASUS 1700 H610I 2XDDR4 1PCIE HDMI M ITX

MBIT610I

ASUS 1700 B760M 4XDDR5 3PCIe Raid MATX

MBIT760A

Microsoft Windows 11 Pro 64 BIT

SFM11P

Product Description

Essentials

Product Collection Intel® Core™ i3 Processors (14th gen)

Code Name Products formerly Raptor Lake

Vertical Segment Desktop

Processor Number i3-14100

Lithography Intel 7


CPU Specifications	Total Cores 4 # of Performance-cores 4 # of Efficient-cores 0 Total Threads 8 Max Turbo Frequency 4.7 GHz Performance-core Max Turbo Frequency 4.7 GHz Performance-core Base Frequency 3.5 GHz

Cache	12 MB Intel® Smart Cache Total L2 Cache 5 MB Processor Base Power 60 W Maximum Turbo Power 110 W

Supplemental Information	Marketing Status Launched Launch Date Q1'24 Embedded Options Available Yes Use Conditions PC/Client/Tablet

Memory Specifications	Max Memory Size (dependent on memory type) 192 GB Memory Types Up to DDR5 4800 MT/s Up to DDR4 3200 MT/s Max # of Memory Channels 2 Max Memory Bandwidth 76.8 GB/s

GPU Specifications	GPU Name‡ Intel® UHD Graphics 730 Graphics Max Dynamic Frequency 1.5 GHz Graphics Output eDP 1.4b, DP 1.4a, HDMI 2.1 Execution Units 24 Max Resolution (HDMI) 4096 x 2160 @ 60Hz Max Resolution (DP) 7680 x 4320 @ 60Hz Max Resolution (eDP - Integrated Flat Panel)‡ 5120 x 3200 @ 120Hz DirectX* Support 12 OpenGL* Support 4.5 OpenCL* Support 3.0 Multi-Format Codec Engines 1 Intel® Quick Sync Video Yes Intel® Clear Video HD Technology Yes # of Displays Supported 4 Device ID 0x4692

Expansion Options	Direct Media Interface (DMI) Revision 4.0 Max # of DMI Lanes 8 Scalability 1S Only PCI Express Revision 5.0 and 4.0 PCI Express Configurations Up to 1x16+4, 2x8+4 Max # of PCI Express Lanes 20

Package Specifications	Sockets Supported FCLGA1700 Max CPU Configuration 1 Thermal Solution Specification PCG 2020C TJUNCTION 100°C Package Size 45.0 mm x 37.5 mm Max Operating Temperature 100 °C

Advanced Technologies	Intel® Gaussian & Neural Accelerator 3.0 Intel® Deep Learning Boost (Intel® DL Boost) on CPU Yes Intel® Speed Shift Technology Yes Intel® Turbo Boost Technology 2.0 Intel® Hyper-Threading Technology Yes Intel® 64 Yes Instruction Set 64-bit Instruction Set Extensions Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2 Idle States Yes Enhanced Intel SpeedStep® Technology Yes Thermal Monitoring Technologies Yes Intel® Volume Management Device (VMD) Yes

Security & Reliability	Intel® Standard Manageability (ISM) Yes Intel® Control-Flow Enforcement Technology Yes Intel® AES New Instructions Yes Secure Key Yes Intel® OS Guard Yes Execute Disable Bit Yes Intel® Boot Guard Yes Mode-based Execute Control (MBEC) Yes Intel® Virtualization Technology (VT-x) Yes Intel® Virtualization Technology for Directed I/O (VT-d) Yes Intel® VT-x with Extended Page Tables (EPT) Yes
