Intel i3-12100 3.30 GHz 12MG SKT 1700 4C

Intel i3-12100 3.30 GHz 12MG SKT 1700 4C

Item #
CPI3XV1
Brand
Intel
Model
BX8071512100

Warranty
3 Year
Condition
Retail Box
If out of stock
3 to 5 Days
Add On Products
Product Description
4 Cores & 8 Threads
3.3 GHz P-Core Clock Speed
4.3 GHz Maximum Turbo Frequency
LGA 1700 Socket

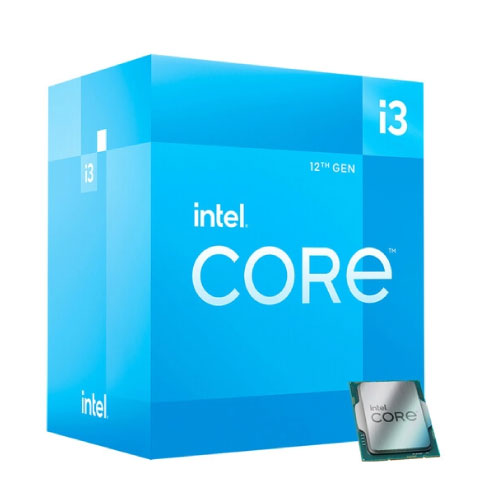

The Intel Core i3-12100 3.3 GHz Quad-Core LGA 1700 Processor
into your desktop computer system. Built using the Alder Lake architecture with the Intel 7 process, this 12th generation 3.3 GHz desktop processor's four Performance-cores support up to 8 threads and provide the speed for applications and games. Additionally, this processor has a 4.3 GHz Boost 2.0 frequency with 12MB of cache for fast and reliable performance. The Core i3-12100 also includes support for PCI Express 5.0 and dual-channel DDR5 memory at 4800 MHz to help run and multitask a variety of applications.

The Core i3-12100
features integrated Intel UHD 730 Graphics and includes an Intel Laminar RM1 thermal solution. The processor is compatible with Intel LGA 1700 socket motherboards and is backed by a 3-year warranty.

PCIe 4.0 & 5.0
This processor supports up to four PCIe 4.0 and sixteen PCIe 5.0 lanes, delivering 20 lanes in total for exceptional data throughput with compatible devices.

Integrated Graphics
Driven by Intel Xe architecture, the integrated Intel UHD 730 Graphics delivers rich performance with high-quality visuals.

Intel Deep Learning Boost
Accelerates AI inference to improve performance for deep learning workloads.

Gaussian & Neural Accelerator 3.0
Gaussian and Neural Accelerator 3.0 (GNA) technology helps with noise suppression while enhancing background blurring during video chats.


General
CPU Model    Intel Core i3-12100 (12th Gen)
CPU Socket    LGA 1700
Manufacturing Process    10 nm
Maximum CPU Configuration    1S
Maximum Number of PCIe Lanes    16 (Revision 5.0)
4 (Revision 4.0)
Unlocked    No

Performance
Number of Cores    4 (4 x P-Cores)
Number of Threads    8
Base Clock Speed    P-Core: 3.3 GHz
Maximum Boost Speed    P-Core Turbo: 4.3 GHz
L3 Cache    12 MB

Memory Support
Maximum Capacity    128 GB
Memory Support    DDR4 3200 MHz
DDR5 4800 MHz
ECC Memory    Yes
Channel Architecture    Dual Channel
Maximum Memory Bandwidth    76.8 GB/s
Optane Memory Support    Yes

Power
Thermal Design Power (TDP)    60 W
Included Thermal Solution    Laminar RM1 (89 W)
Maximum Temperature    212°F / 100°C
Thermal Monitoring Technologies    Yes

Technology
AES Support    Yes
Extension    AVX 2.0, AVX-512, SSE 4.1/4.2
Instruction Set    64-Bit
Virtualization    Yes: Intel VT-d, Intel VT-x, Intel VT-x with Extended Page Tables (EPT)
DMI    DMI4 (16 GT/s)
vPro Support    No
Performance Technologies    Deep Learning Boost, Gaussian and Neural Accelerator 3.0, Hyper-Threading, SpeedStep, Turbo Boost 2.0
Security Technologies    Control-Flow Enforcement (CET), Device Protection with Boot Guard, Execute Disable Bit, MBE (Mode-Based Execute) Control, OS Guard, Secure Key
Video Technologies    Clear Video, Clear Video HD, InTru 3D, Quick Sync Video

Integrated Graphics
Integrated Graphics    Intel UHD Graphics 730
Maximum Resolution Support    7680 x 4320 at 60 Hz
Supported APIs    DirectX: 12
OpenGL: 4.5
Number of Displays    4
Output Support    eDP, DisplayPort, HDMI
Base Clock Speed    300 MHz
Maximum Boost Speed    1.4 GHz
