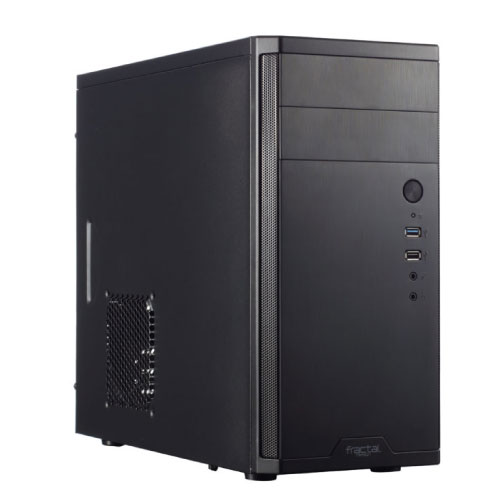

Fractal Micro ATX Mini Tower No/PS
This case is optimized for airflow with a straight cooling path, a pre-installed 120 mm fan and dust filters in the front panel. The innovative vertical hard drive bracket can fit either two 3.5" drives, three 2.5" drives, or one drive of each size. Both 3.5" drive slots come with silicone vibration dampening grommets.
An extremely compact micro ATX case, designed for exceptional airflow and cooling
Brushed aluminum-look front panel with a sleek, three-dimensional textured finish and a fully painted interior, with Fractal Design signature white details
One Fractal Design 120 mm fan included
Easy access I/O on front panel with audio, USB 3.0 and USB 2.0 ports
Front panel dust filters and closed top and bottom panels help maintain a dust free interior
The innovative vertical HDD bracket can hold two 3.5" drives or three 2.5" drives (or one drive of each size) with vibration-dampened mounting for both 3.5" drive slots
Specifications
|
Drive bay capacity
|
2x 3.5" HDD or 3x 2.5" HDD/SSD or 1x 2.5" HDD/SSD or 1x 3.5" HDD
|
|
ODD slots
|
2x 5.25"
|
|
Expansion slots
|
4
|
|
Front ports
|
1x USB 3.0, 1x USB 2.0, Audio in/out, Power button with LED (white), HDD activity LED (white)
|
|
Total fan mounts
|
3
|
|
Front fan
|
1x 120 mm (1x Fractal Design Silent Series 120 mm fan included)
|
|
Rear fan
|
1x 92 mm
|
|
Side fan
|
1x 120 mm
|
|
Dust filters
|
Front fans
|
Compatibility
|
Power supply type
|
ATX
|
|
Motherboard compatibility
|
Mini ITX, Micro ATX
|
|
PSU max length
|
185 mm (with typical-length optical drive)
|
|
GPU max length
|
350 mm in length; One or more 3.5" hard drives may interfere with side-mounted power connectors on graphics cards longer than 170 mm
|
|
CPU cooler max height
|
148 mm
|
Dimensions
|
Case dimensions (WxHxD)
|
175 x 358 x 410 mm
|
|
Net weight
|
3.8 kg
|
|
Package dimensions (WxHxD)
|
235 x 485 x 420 mm
|
|
Package weight
|
4.6 kg
|
|
Volume
|
26.3 litres
|
Other
|
Package contents
|
Core 1100 computer case, Accessory box, User manual
|
|
EAN
|
7350041081913
|
|
UPC
|
817301011914
|
|
Product code
|
FD-CA-CORE-1100-BL
|
