EVGA 850WT 80+ Bronze Modular Power

Product Description

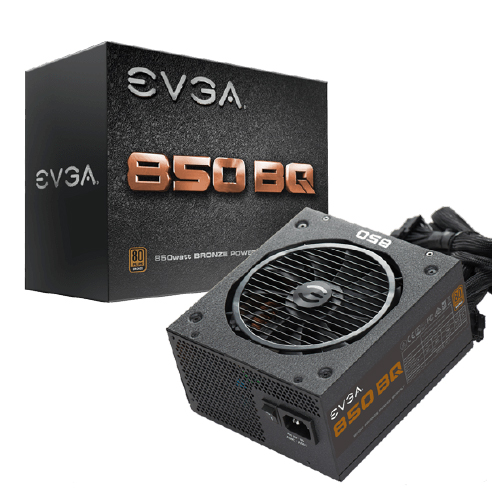

EVGA 850 BQ, 80+ BRONZE 850W, Semi Modular
Heavy-duty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), OPP (Over Power Protection), and SCP (Short Circuit Protection)
5 Year Warranty and unparalleled EVGA Customer Support
Quiet and Intelligent Auto Fan for near-silent operation

CABLE LENGTH
ATX Cable EPS Cable PCIe Cable SATA Cable Four-Pin Peripheral Cable AC Power Modular Cable Type	1x 550mm 2x 600mm 3x 550mm, 700mm 1x 500mm, 650mm, 800mm, 950mm, 2x 500mm, 650mm, 800mm 1x 550mm, 700mm, 1x 550mm, 700mm, 850mm + 1000mm (Floppy) 1x 1800mm  Semi-Modular
CONNECTOR QUANTITY
24 Pin ATX EPS (CPU) PCIe SATA Four-Pin Peripheral Floppy	1x 2x 8pin(4+4) 3x 8pin (6+2), 3x 6pin 10x 5x 1x
INPUT
Input Voltage AC Input Input Frequency Range Efficiency	100-240 VAC 12A 60/50 Hz 85% Typical
OUTPUT
Rail Max output Total	+5V    +3.3V    +12V    -12V    +5Vsb 20A    24A    70A    0.3A    3A 160W    840W    3.6W    15W 850W
ADDITIONAL DETAILS
Japanese Capacitors ECO Mode MTBF Gross  Weight Size Approvals Fan Size / Bearing UPC	Main PCB No 100,000 Hours 7 lbs 85mm (H) x 150mm (W) x 165mm (L) TUV, CB, CE, FCC, RCM, cTUVus, WEEE, RoHS Compliance with ErP Lot 6 2013 Requirement 140mm Teflon Nano-Steel Bearing 843368036607
