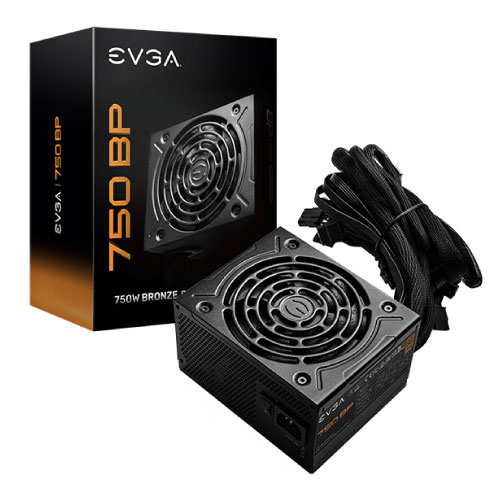

EVGA 750WT 80+ Bronze Power

Item #

PS750EVBQ1

Brand

EVGA

Model

100-BP-0750-K1

Color

Black

Warranty

3 Year /1 Year OTC /2 Year MFG

Condition

Retail Box

If out of stock

While Supplies Last

Product Description

80 PLUS Bronze certified, with 85% efficiency or higher under typical loads

Heavy-duty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), OPP (Over Power Protection), SCP (Short Circuit Protection), and OTP (Over Temperature Protection)

Active Power Factor Correction

DC-DC Converter improves 3.3V/5V stability

EVGA Global 3 Year Limited Warranty and unparalleled EVGA Customer Support

CABLE LENGTH
ATX Cable EPS Cable PCIe Cable SATA Cable Four-Pin Peripheral Cable AC Power Modular Cable Type	1x 550mm 1x 600mm 2x 550mm, 670mm 3x 450mm, 570mm, 690mm 1x 450mm, 570mm, 690mm + 810mm (Floppy) 1x 1200mm (m) No
CONNECTOR QUANTITY
24 Pin ATX EPS (CPU) PCIe SATA Four-Pin Peripheral Floppy	1x 24pin (20+4) 1x 8pin (4+4) 4x 8pin (6+2) 9x 3x 1x
INPUT
Input Voltage AC Input Input Frequency Range Efficiency	100-240V~ 10-5A 60/50Hz 85% Typical
OUTPUT
Rail Max output Total	+3.3V +5V +12V -12V +5Vsb 20A 20A 32.5A 0.3A 3A 120W 750W 3.6W 15W 750W
ADDITIONAL DETAILS
Japanese Capacitors ECO Mode MTBF Net Weight Size Approvals Fan Size / Bearing	No No 100,000 Hours 6 lbs 86mm (H) x 150mm (W) x 120mm (L) TUV, CB, CE, FCC, RCM, cTUVus, WEEE, RoHS Compliance with ErP Lot 3 2014 Requirement 115mm Hydraulic Bearing
