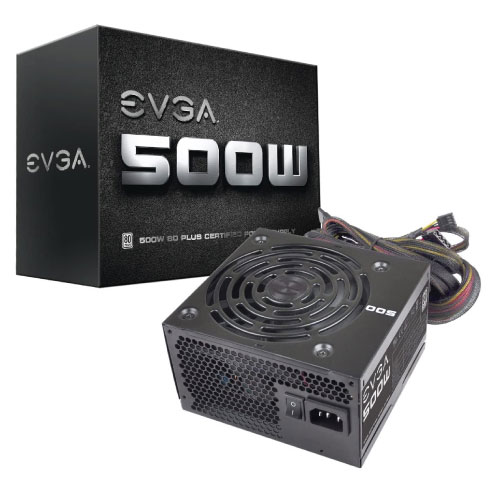

EVGA 500WT Single Fan 80+ Power Supply

Product Description

EVGA 500WT 100-W1-0500-KR 100-W1-0500-KR Single Fan 80Plus

The EVGA 500W is a great choice at a super low cost. Supporting up to 40A on a single +12V rail, these PSUs provide more options without having to reduce your component requirements. Save space with the compact design, well-placed power switch and fully sleeved cables. These units offer the connections and protections needed for basic system builds. With a standard 3 year warranty and ultra quiet fan design, these will be a great asset for your next build on a budget.

FEATURES
Exceptional 3 year warranty and unparalleled EVGA customer support
80 PLUS certified, with up to 80% efficiency under typical loads
High Amperage Single-Rail design for maximum power and efficiency
Quiet and Intelligent Auto Fan for near-silent operation
Heavy-duty Power Protections provide peace of mind during operation

CABLE LENGTH
ATX Cable EPS Cable  PCIe Cable SATA Cable Four-Pin Peripheral Cable Floppy Adapter  AC Power  Modular Cable Type	1x 550mm 1x 600mm 1x 550mm, 670mm 2x 450mm, 570mm, 690mm 1x 450mm, 570mm, 690mm (f)  1x 1x 1200mm (m)  No
CONNECTOR QUANTITY
24 Pin ATX EPS (CPU)   PCIe  SATA Four-Pin Peripheral Floppy	1x 24pin (20+4) 1x 8pin (4+4) 2x 8pin (6+2) 6x 3x 1x
INPUT
Input Voltage AC Input Input Frequency Range Efficiency	100 - 240 VAC 8/4A  50 - 60 Hz 80% Typical
OUTPUT
Rail   Max output       Total	+3.3V        +5V           +12V        -12V         +5Vsb          20A            24A            40A          0.3A         3A         120W           480W         3.6W        15W          500W
ADDITIONAL DETAILS
Operating Temperature Compliance with Japanese Capacitors   ECO Mode MTBF Net Weight Size Approvals  Fan Size / Bearing UPC EAN	0° to 40° C ErP Lot 6 2013 Requirement No No 100,000 Hours  3 lbs 85mm (H) x 150mm (W) x 140mm (L) , CB, CE, FCC, RCM, cTUVus, BSMI, CCC, WEEE, RoHS  120mm Sleeve Bearing  843368026318 4250812401779
