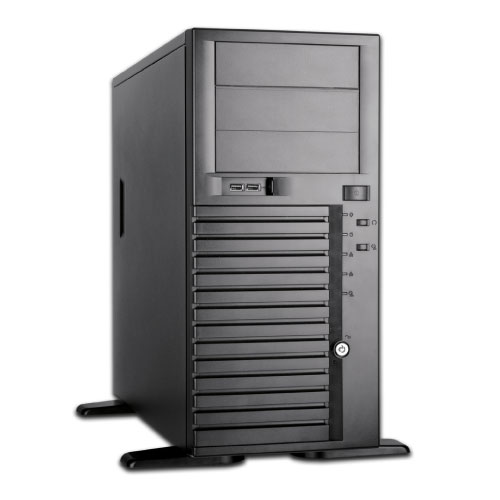

Supports up to 12" x 9.6" M/B
Supports cage for 4x internal 3.5" drives, OR cage for 4x hot-swappable 3.5" drives
3.5" HDD Hot-Swap cages with 12Gb/s Mini-SAS HD or SAS/SATA Backplane
Hot-swap cage with four patented tool-less 3.5" HDD trays
3.5" Internal HDD cage with patented anti-vibration technologies
A dedicated 80 mm fan for 3.5" HDD cooling
A optional 80 mm front fan for PCI-e card cooling
Supports PCI-e 3.0 expansion slot opening
Tool-less installation for bezel, HDD cage, side cover and fans
Supports key lock, 3-wire intrusion switch and Kensington security slot
Front bezel lock to prevent unauthorized access
Supports Rack installation by slide rails(SR20966 Plus only)
Supports single PS/2 PSU and 1+1 redundant PSU
hot swap bay optional
|
M/B Form Factor
|
ATX (12” x 9.6”)
|
|
| Dimensions (D x W x H) |
465.0 x 198.0 x 425.0 (mm)
18.31" x 7.80" x 16.73" (w/o bezel)
|
|
Drive Bay
|
External 5.25":3
3.5" Hot-swap:4
3.5" Internal (Option):4
|
|
Storage Backplane
|
3.5" 4-port 12Gbps, Mini-SAS HD
3.5" 4-port 12Gbps, SAS/SATA (Option)
|
|
| PSU Form Factor |
PS/2 Single or N+1 Redundant or 1+1 CRPS
|
|
Indicator
|
1 x Power Status
2 x LAN Activity
1 x HDD Status
1 x System Alarm
|
|
| Front Control |
1 x Power On/Off
1 x System Reset
1 x Alarm Mute
2 x USB2.0/USB3.0 (Option)
|
|
| Cooling Fan |
HDD Cage: 80 x 25 (1)
PCI: 80 x 25 (1)(Option)
Rear: 120 x 25 (1)
|
|
System Security
|
Intrusion Switch
Key Lock
Kensington Slot
|
|
| Expansion Slot Opening |
7 x Full Height (5 x Full Length + 2 x Half Length)
|
|
| Net Weight |
7.8 kg
|
|
| Gross Weight |
9.8 kg
|
|
| Cubic Feet |
2.94
|
|
| Container Loading |
20': 350
40': 734
40'H: 820 (Single Packing)
|
