Cyclades 10 Outlets PDU enables remote power management and control of servers and network gear. When used in conjunction with Cyclades ACS console servers and Avocent DSView 3 management software, the Cyclades PM devices provide a power management system with easier management capabilities and faster problem solving by integrating system access and power control into a single interface. Includes two RS-232 outlets that allow the creation of daisy-chains with up to 128 outlets. Connect this chain to one of the outlets on the Cyclades ACS console server for the most advanced remote power management solution in the market today.
Manufacturer: Emerson Network Power
Manufacturer Part Number: ATP3020-001
Manufacturer Website Address: http://www.emersonnetworkpower.com
Brand Name: AVOCENT
Product Line: Cyclades
Product Model: PM10-20A
Product Name: Cyclades PM10-20A 10 Outlets PDU
Product Type: PDU

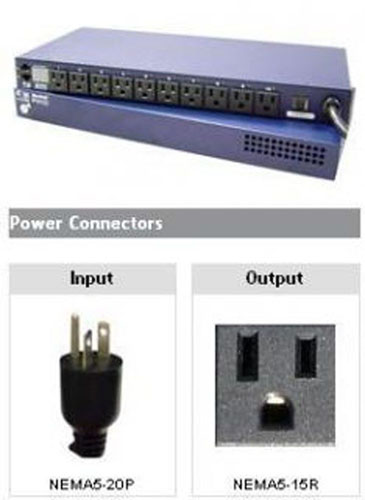

Input Receptacles: NEMA 5-20P
Output Receptacles: 10 x NEMA 5-15R
Input Voltage: 125 V AC
Output Voltage: 125 V AC
Interfaces/Ports: 2 x 9-pin DB-9 RS-232 Console Port
Form Factor: Horizontal
General Information
Manufacturer: Emerson Network Power
Manufacturer Part Number: ATP3020-001
Manufacturer Website Address: http://www.emersonnetworkpower.com
Brand Name: AVOCENT
Product Line: Cyclades
Product Model: PM10-20A
Product Name: Cyclades PM10-20A 10 Outlets PDU
Product Type: PDU
Technical Information
Input Receptacles: NEMA 5-20P
Output Receptacles: 10 x NEMA 5-15R
Power Description
Input Voltage: 125 V AC
Output Voltage: 125 V AC
Physical Characteristics
Form Factor: Horizontal
Miscellaneous
Additional Information:
Secure, remote power management
Integrated console and power management
Independent control of power ports (power on/off/cycle)
Certifications & Standards:
CSA
FCC Class A
