The

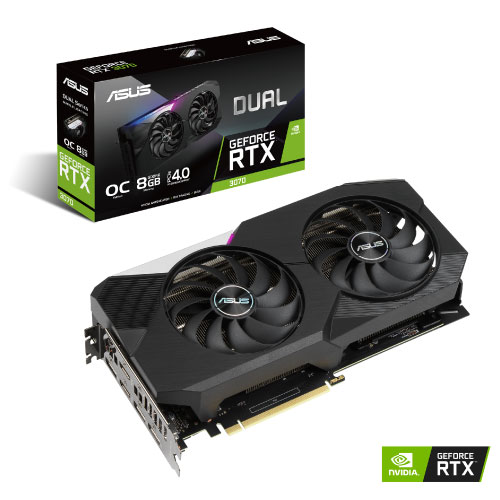

ASUS GeForce RTX 3070 OC Edition
8GB GDDR6 with two powerful Axial-tech fans
for AAA gaming performance and ray tracing.
NVIDIA Ampere Streaming Multiprocessors: The building blocks for the world’s fastest, most efficient GPU, the all-new Ampere SM brings 2X the FP32 throughput and improved power efficiency.
2nd Generation RT Cores: Experience 2X the throughput of 1st gen RT Cores, plus concurrent RT and shading for a whole new level of ray tracing performance.
3rd Generation Tensor Cores: Get up to 2X the throughput with structural sparsity and advanced AI algorithms such as DLSS. Now with support for up to 8K resolution, these cores deliver a massive boost in game performance and all-new AI capabilities.
Axial-tech fan design features a smaller fan hub that facilitates longer blades and a barrier ring that increases downward air pressure.
Auto-Extreme Technology uses automation to enhance reliability.
A protective backplate secures components during transportation and installation.
GPU Tweak II provides intuitive performance tweaking, thermal controls, and system monitoring.
2x Fans. 2x Fun.
Delivering the latest NVIDIA Ampere architecture experience in its purest form, the ASUS Dual GeForce RTX™ 3070 melds performance and simplicity like no other. Leveraging advanced cooling technologies derived from flagship graphics cards, the Dual opts for substance over style, the perfect choice for a well-balanced build. Buckle up and engage cutting-edge gaming prowess.
GPU Tweak II
Monitor, tweak, and tune
The ASUS GPU Tweak II utility takes graphics card tuning to the next level. It allows you to tweak critical parameters including GPU core clocks, memory frequency, and voltage settings, with the option to monitor everything in real-time through a customizable on-screen display. Advanced fan control is also included along with many more features to help you get the most out of your graphics card.
Graphic Engine
|
NVIDIA® GeForce RTX™ 3070
|
Bus Standard
|
PCI Express 4.0
|
OpenGL
|
OpenGL®4.6
|
Video Memory
|
8GB GDDR6
|
Engine Clock
|
OC Mode - 1800 MHz (Boost Clock)
Gaming Mode - 1770 MHz (Boost Clock)
OC Mode - 1800 MHz (Boost Clock)
Gaming Mode - 1770 MHz (Boost Clock)
|
CUDA Core
|
5888
|
Memory Speed
|
14 Gbps
|
Memory Interface
|
256-bit
|
Resolution
|
Digital Max Resolution 7680 x 4320
|
Interface
|
Yes x 2 (Native HDMI 2.1)
Yes x 3 (Native DisplayPort 1.4a)
HDCP Support Yes (2.3)
|
Maximum Display Support
|
4
|
NVlink/ Crossfire Support
|
No
|
Accessories
|
1 x Collection card
1 x Speedsetup manual
|
Software
|
ASUS GPU Tweak II & GeForce Game Ready Driver & Studio Driver: please download all software from the support site.
|
Dimensions
|
10.51 " x 5.31 " x 2.05 " Inch
26.7 x 13.5 x5.2 Centimeter
|
