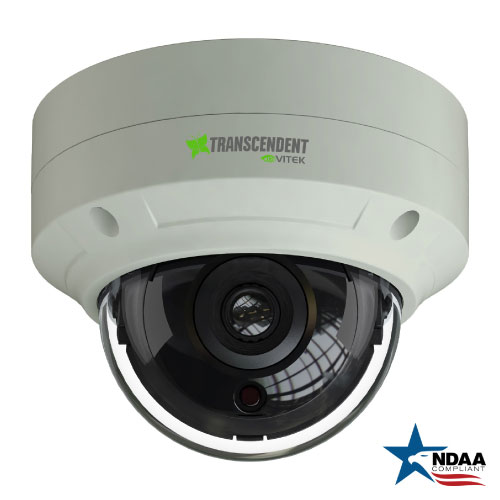

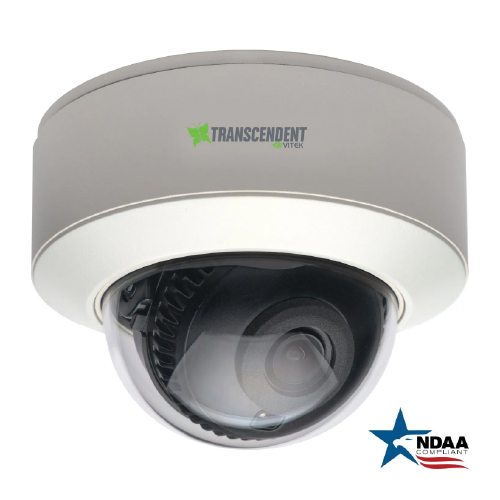

Transcendent Series 8 MP [4K] Indoor/Outdoor WDR IP Fixed Vandal Dome Camera with Matrix IR
• 1/2.7” 8.0 Megapixel [4K] CMOS Image Sensor
• Up to 20fps @ 8MP (3840 × 2160), 6MP (3072× 2048 ), 5MP (2592 ×1944 ), 720P (1280 × 720), D1, CIF, 480 × 240
• 2.8mm Fixed Iris Lens
• 1 Matrix IR with up to 100’ IR Range
• Digital Wide Dynamic Range (D-WDR)
• True Mechanical Day/Night function by ICR
• 3D-DNR (Digital Noise Reduction)
• Regional Intrusion Detection, Scene Change Detection, Line Crossing
• H.265, H.264 Compression
• MicroSD Card Slot for Local Recording (Up to 128GB)
• Built-in Mic + One Channel Audio Input*
• Remote Viewing via CMS, Internet Explorer, and iOS & Android Apps
• ONVIF Compliant
• IP67 Weather Resistance + IK10 Impact Rating
• Optional Junction Box (VT-TJB03A), Wall Mount (VT-TWMT3) and In-Ceiling Semi Flush Mount (VT-TFMT-S) Available
• 12VDC & PoE (Power over Ethernet) Operation
|
Image Sensor
|
1/2.7” 8.0 Megapixel [4K] Progressive Scan CMOS
|
|
| Image Size |
8 MegaPixel (3840 × 2160)
|
|
Resolution
|
Up to 20fps @ 8MP (3840 × 2160), 6MP (3072× 2048 ),
5MP (2592 ×1944 ), 720P (1280 × 720), D1, CIF, 480 × 240
|
|
Min. Illumination
|
0.11 lux @F2.2, AGC ON; 0 lux with IR
|
|
| Electronic Shutter |
1 / 25 s ~ 1 / 100000s
|
|
Lens
|
2.8mm Fixed Iris Lens
|
|
| Day/Night |
True Day/Night by ICR
|
|
IR LEDs
|
1 Matrix Style IR
|
|
IR Distance
|
Up to 100‘
|
|
| Video Compression |
H.265 / H.264
|
|
| Audio Compression |
G.711A / G.711U
|
|
Main Stream
|
8MP [4K]/ 6MP/ 5MP(1~20fps)
Sub Stream, Third Stream 720P/D1/CIF (1~20fps), D1/CIF/480×240(1~20fps)
|
|
| Bit Rate |
/ Type 64 Kbps ~ 8 Mbps / VBR + CBR
|
|
WDR Digital
|
WDR
|
|
| DNR |
3D-DNR
|
|
| Backlight Compensation |
Yes
|
|
| Highlight Compensation |
Yes
|
|
| Defog |
Yes
|
|
| Image Setting |
ROI, Saturation, Brightness, Chroma, Contrast, Sharpen, NR; Adjustable through client software or browser
|
|
Analytics
|
Region Intrusion, Scene Change Detection, Line Crossing
|
|
| Smart Alarm |
Motion Detection, SD Card Error, SD Card Full
|
|
General Functions
|
Watermark, IP Filter, Video Mask, Illegal Login Lock
|
|
| Region of Interest (ROI) |
Each ROI to be configured separately
|
|
| Hardware Reset |
Yes
|
|
| Analog Video Output |
No
|
|
| Audio Built-in |
Mic*
|
|
| Local Storage |
Built-in Micro SD card slot up to 128GB
|
|
| Remote Viewing |
CMS / Web Browser / Mobile (iOS/Android)
|
|
Supported Browsers
|
Internet Explorer, Chrome and Firefox with IE Tab
|
|
| Connection Protocol |
ONVIF
|
|
| Weather / Impact Resistance |
IP67 Weather Resistance + IK10 Impact
|
|
Power Input
|
12VDC / PoE
|
|
Power Consumption
|
(12VDC) 120mA (IR Off) / 480mA (IR On)
|
|
| Power Consumption (PoE) |
< 6.5W
|
|
| Weight & Dimensions |
Weight 20.96oz / 1.31lb / 593g
Dimensions 4.57 × 3.58” (116 × 91mm) Dia × H
|
|
|
*Please research local, state, and federal law regarding the implementation and use of audio surveillance
|
