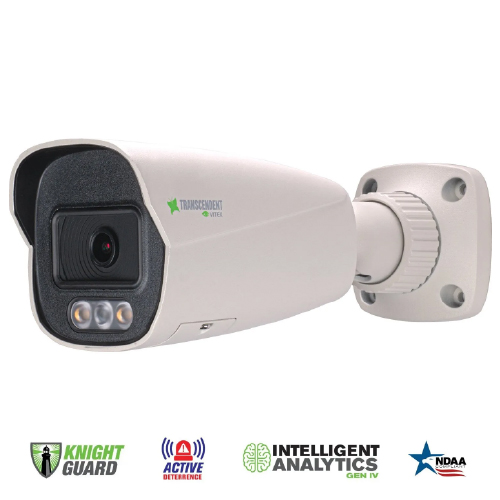

8MP 4K 2.8mm Gen.4 Knight Guard +
1/1.8” 8.0 MegaPixel (4K) CMOS Image Sensor
Up to 30fps live view @ 8 MegaPixel (4K) (3840 × 2160)
2.8mm Fixed Iris Lens
Vitek Knight Guard Full Color at Night Camera
Active Deterrence: Alternate Flashing Red + Blue Warning Lights & User-
Defined Warning / Command Voice Import
White Light or Matrix IR / Up to 130’
True Wide Dynamic Range (120dB)
Triple Streaming: H.265+, H.264+ & MJPEG Compression
XD-DNR (3D & 2D-DNR) Noise Reduction
Backlight / Highlight Compensation, DeFog, Hardware Reset, ROI
GEN IV Advanced Analytics: Regional Entrance / Exit Detection, Line
Crossing,Target Counting (All by Human / Motor Vehicle Classification)
Face Detection, Heat Map, Video Blur, Color Detection, Abnormal Video,
and more!
1 Ch. Audio In + 1 Ch. Audio Out + Built-in Mic + Built-in Speaker*
1 Ch. Alarm In + 1 Ch. Alarm Out
Built-in MicroSD Card Slot for Local Recording (up to 256GB)
Smart Alarm: Motion Detection, Sensor Alarm, SD Card Error / Full, IP
Address Conflict, Cable Connection
IP66 Weather Resistance
Optional Junction Boxes (VT-TJB08) Available [Compatible with Universal
Transcendent Pole and Corner Mount Adapters, VT-TPLMT & VT-TCNMT] –
See Below
12VDC & PoE (Power over Ethernet) Operation
Weight Net (Gross) 24.0z / 1.50lb / 680g (29.3oz / 1.83lb / 830g)
Dimensions L × W × H 8.57” × 3.20” × 3.16” (217.8mm × 80.5mm × 80.3mm)
Certificates CE, FCC — Complies with Directive EU RoHS, WEEE(2012/19/EU), Directive 94/62/EC and REACH(EC1907/2006)
3-Year Warranty
|
Image Sensor
|
1/1.8” 8.0 MegaPixel (4K) Progressive Scan CMOS
|
|
| Image Size |
8 MegaPixel (3840 × 2160)
|
|
Resolution
|
8MP (3840×2160 ), 6MP(3072×2048 ), 5MP(2592×1944 ), 4MP(2592×1520 ), 2K (2560×1440 ),
3MP (2304×1296), 1080P(1920 ×1080), 720P(1280×720), D1, VGA(640×480), CIF, 480 × 240
|
|
Frame Rate
|
30fps @ 8MP (4K) and Lower (50Hz: 1~25fps)
|
|
Main-Stream
|
8MP/6MP/5MP/4MP/2K/3MP/1080P/720P
|
|
Sub-Stream
|
1080P/720P/D1/VGA/CIF
|
|
| Third-Stream |
D1/VGA/CIF/480×240
|
|
| Min. Illumination |
0.008lux @ F1.6 with AGC ON, 0 lux with IR, 0 lux with LED
|
|
Lens
|
2.8mm Fixed Iris Lens @ F1.6
|
|
| Field of View |
Horizontal: 109°, Vertical: 57°, Diagonal: 132°
|
|
| Angle Adjustment |
Pan: 0°~180°, Tilt:0°~90°, Rotation: 0°~180°
|
|
Electronic Shutter
|
1/2s ~ 1/100,000s
|
|
| S/N Ratio |
=50dB
|
|
| Day / Night |
True Day / Night by ICR
|
|
| Night Vision / Range |
White Light or Matrix IR / Up to 130’
|
|
| Video Compression |
H.265+ / H.265 / H.264+ / H.264 / MJPEG [Triple Streaming]
|
|
| Audio Compression |
G.711A / G.711U
|
|
Audio
|
1Ch. Audio Input, 1Ch. Audio Output + Built-in Speaker + Built-in Microphone*
|
|
| Alarm |
1Ch. Alarm Input, 1Ch. Alarm Output
|
|
| CVBS Video Out |
No
|
|
| Bit Rate / Type |
64 Kbps ~ 12 Mbps / VBR, CBR
|
|
| Wide Dynamic Range |
120dB Super WDR
|
|
Other Features
|
Highlight Compensation, Backlight Compensation, DeFog, Hardware Reset
|
|
| Digital Noise Reduction |
XD-DNR (3D-DNR & 2D-DNR)
|
|
Image Setting
|
ROI, Saturation, Brightness, Hue, Contrast, Wide Dynamic, Range Sharpness, Image Flip, Image Mirror, Noise
Reduction) (Adjustable through client software or web browser)
|
|
| Advanced Analytics |
Intrusion Detection, Line Crossing, Target Counting [All by Human / Motor Vehicle Classification], Face Detection,
Scene Change, Video Blur, Abnormal Color Detection, Heat Map
|
|
| Smart Alarm |
Motion Detection, Sensor Alarm, SD Card Error, SD Card Full, IP Address Conflict, Cable Connection
|
|
Region of Interest (ROI)
|
Each ROI to be Configured Separately
|
|
| Sound / Light Warning |
Flashing White Lights (Red and Blue) + Speaker with User-Defined Warning Voice Import
|
|
DORI
|
Detect: 262’ (80m), Observe: 105’ (32m), Recognize: 52’ (16m), Identify: 26’ (8m)
|
|
| Local Storage |
Built-in MicroSD Card Slot (up to 256GB)
|
|
| Remote Viewing |
VMS / Web Browser / Mobile (iOS/Android)
Online Connection Supports Simultaneous Monitoring for up to 10 Users, Support multi-stream real time transmission
Supported Browsers IE or Edge in IE mode, Chrome, Firefox
Network Connection RJ45 10M/100M Self-Adaptive Ethernet port |
|
| Power Input 12VDC / PoE |
Power Consumption (PoE) <11.5W
Power Consumption (12VDC) 500mA (LEDs Off) / 1000mA (LEDs On)
Working Environment -22° ~140°F (-30°~60°C) / < 95% Humidity
Storage Environment -22° ~149°F (-30°~65°C) / < 95% Humidity
|
|
| Network Protocols |
UDP, IPv4, IPv6, DHCP, NTP, RTSP, RTP, RTCP, PPPoE, DDNS, SMTP, FTP, SNMP, RTMP, HTTP, 802.1x, UPnP,
HTTPS, HTTP POST, QoS
|
|
Connection Protocol
|
ONVIF
|
|
| Security Video Encryption, |
Firmware Encryption, HTTPs Encryption, Configuration Encryption, Illegal Login Lock, IP Address
Filtering, 802.1x Authentication, Basic and Digest Authentication for HTTP/HTTPs
|
