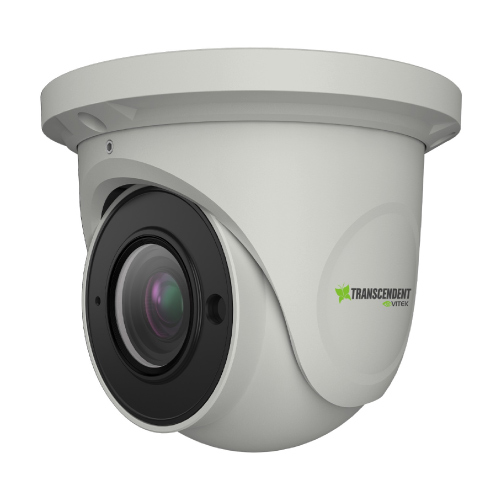

Transcendent Series 8 MegaPixel [4K] Indoor/Outdoor 4-in-1 HDA Fixed Vandal Dome Camera
Transcendent Series High Definition HD-TVI, AHD, CVI, and CVBS 4-IN-1 Cameras deliver up to 8.0 MegaPixel [4K] resolution and offer unprecedented performance and value. These simple, easy to install, attractively styled, analog HD Cameras transmit over your existing Coaxial cable at distances up to 1500’.
• 1/2.5” 8MegaPixel [4K] Progressive Scan CMOS image sensor
• High Definition Analog (HDA) / HD-TVI / AHD / HD-CVI / CVBS
• 8MP@15fps, 5MP@20fps, 4MP@30fps High Res, True Color
• Supports OSD Menu
• Digital Wide Dynamic Range (D-WDR)
• 2.8mm Fixed Iris Lens
• 16 SMD Type IR LEDs with up to 65’ IR Range
• True Mechanical Day/Night function by ICR
• 3D-DNR (Digital Noise Reduction)
• IP67 Weather Resistance + IK10
• Supports Up The COAX Control (CoC)
• Over 1500’ HD Video Transmission (Depending on cable characteristics and integrity
• Optional Junction Box (VT-TJB03A), Wall Mount (VT-TWMT3) and In-Ceiling Semi Flush Mount (VT-TFMT-S) Available
• 12VDC Operation
|
Image Sensor
|
1.25” 8.0 MegaPixel Progressive Scan CMOS Sensor
|
|
Signal System
|
NTSC/PAL
|
|
Effective Pixels
|
3840 x 2160
|
|
Resolution
|
HD-TVI & AHD: 8.0 MegaPixel / CVI: 4.0 MegaPixel / CVBS: 960H
|
|
Video Output
|
HD-TVI / AHD / CVI / CVBS (Selectable)
|
|
Frame Rate
|
8MP@15fps / 5MP@20fps / 4MP@30fps
|
|
Lens
|
2.8mm – Fixed
|
|
Day/Night
|
True Day/Night by ICR
|
|
Min. Illumination Color
|
0.001 lux@F1.2, AGC ON / B/W: 0 lux (with IR ON)
|
|
IRs
|
16 SMD Type IR LEDs
|
|
IR Distance
|
Up to 65’
|
|
Dynamic
|
(Smart) IR YES
|
|
S/N Ratio
|
=52 dB (AGC Off)
|
|
Wide Dynamic Range
|
D-WDR (Digital Wide Dynamic Range)
|
|
Digital Noise Reduction
|
3D-DNR
|
|
Auto White Balance
|
YES (AWB)
|
|
Back Light Compensation
|
YES (BLC)
|
|
Up the COAX Control (COC)
|
YES
|
|
Transmission Distance
|
Up to 1500’ (Depending on Cable Characteristics and Integrity)
|
|
Power Input
|
12VDC
|
|
Power Consumption IR Off
|
< 2W / IR On: < 5W
|
|
Resistance
|
IP67 Weather (Ingress) + IK10 Impact
|
|
Operation Conditions
|
-4°~122° / 10%~90% Humidity
|
|
Weight
|
21.16oz / 1.32lb / 600g
|
|
Dimensions
|
4.59”× 3.54” (117mm × 90mm) Dia× H
|
