System Information
|
Model

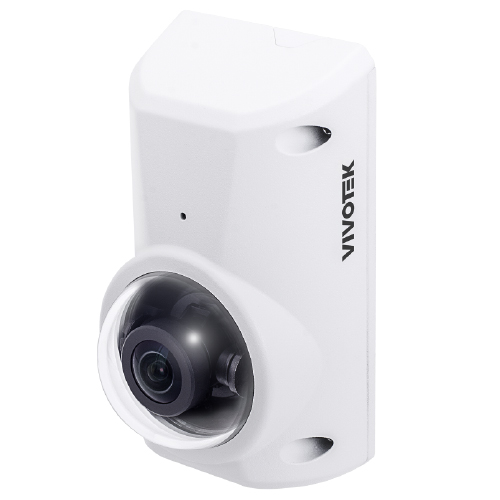

CC9390-HV
CPU
Multimedia SoC (System-on-Chip)
Flash
8 GB
RAM
2 GB
|
|
| Camera Features |
Image Sensor
1/1.8" Progressive CMOS
Max. Resolution
3840x2160 (8MP)
Lens Type
Fixed-focal
Focal Length
f = 2.53mm
Aperture
F2.4
Iris Type
Fixed Iris
Field of View
180° (Horizontal)
103° (Vertical)
180° (Diagonal)
Shutter Time
1 sec. to 1/100,000 sec.
WDR Technology
WDR Pro
Day/Night
Yes
Removable IR-cut Filter
Yes
Minimum Illumination
0.08 lux (Color, 30IRE)
0.005 lux (B/W 30IRE)
Tilt Range
±20°
Pan/Tilt/Zoom Functionalities
ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)
Storage
Seamless Recording to MicroSD/SDHC/SDXC card and recording to network-attached storage (NAS)
Built-in Installation Aids
Pixel calculator
|
|
Video
|
Video Compression
H.265/H.264/MJPEG
Maximum Frame Rate
30 fps @ 3840x2160
Maximum Streams
3 video streams (Up to 8 configurable profiles)
S/N Ratio
62 dB
Dynamic Range
120 dB
Video Streaming
Adjustable resolution, quality and constrained bit rate control, Smart Stream III
Image Settings
General settings: video settings, video orientation (flip, mirror, rotation), day/night settings, smart image; Overlay settings; Illuminators: illuminators, anti-overexposure; Image settings: white balance, image adjustment (brightness, contrast, saturation, sharpness, gamma curve), defog, 3DNR, HLM, scene mode (auto); Exposure: exposure strategy (measurement window, metering mode); exposure control (exposure level, exposure time, gain control), image sharpener for motion blur, AE speed adjustment, WDR; Privacy mask; Pixel calculator; Scheduled profile settings
|
|
Audio
|
Audio Capability
One-way Audio
Audio Compression
MPEG-2 AAC-LC, G.711, G.726
Audio Interface
Built-in microphone
Effective Range
5 meters
|
|
| Network |
Users
Live viewing for up to 10 clients
Security
Access list, Account block , Audit log, Configurable password strength protection, CSRF protection, Digest authentication, HTTPS , IEEE 802.1x, Secure boot, Session timeout, Signed firmware, Trend Micro IoT Security (brute force attack event, cyberattack event, quarantine event), User access log, User account management
Protocols
802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP/SFTP, HTTP, HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTCIP, NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2/1.3, UDP, UPnP
Interface
10Base-T/100 BaseTX Ethernet (RJ-45)
*It is highly recommended to use standard Cat. 5e & Cat. 6 cables which are compliant with the 3P/ETL standard.
ONVIF
Profile G, S, T supported, specification available at www.onvif.org
|
|
AI Analytics
|
Compute Capability
SoC with built-in hardware deep learning accelerator
Vision Object Analytics
Object Detection: People, Vehicle (4-wheeled, 2-wheeled); Attribute Extraction: People (gender, clothing color, bag, hat), Vehicle (bike, bus, car, motorcycle, truck, color); Re-Search Extraction; Path Extraction
Application
Deep Learning VCA (Smart Motion Detection, Smart VCA)
Smart Motion Detection (Five-window video motion detection, People detection, Vehicle detection, Time filter), Smart VCA (Intrusion detection, Loitering detection, Line crossing detection, Unattended object detection, Missing object detection, Face detection, Crowd detection
Application available with license
Running detection, Parking Violation Detection, Restricted Zone Detection
Support for more analytic applications and free trial, please visit vivotek.com/video-analytics
|
|
| Solution Integration |
Applications
Trend Micro IoT Security (3-year free trial)
|
|
| Alarm and Event |
Event Trigger
Audio detection, camera tampering detection, cybersecurity events (brute force attack event, cyberattack event, quarantine event), manual trigger, motion detection, periodical trigger, recording notification, SD card life expectancy, shock detection, system boot, video loss, video restoration
Event Action
Event notification via audio clip, camera link, email, HTTP, FTP/SFTP, NAS server, SD card
|
|
General
|
Connectors
RJ-45 cable connector for 10/100 Mbps Network/PoE connection
LED Indicator
System power and status indicator
Power Input
IEEE 802.3af PoE Class 0
Power Consumption
MAX. 9.96W
Dimensions
115 x 65 x 59 mm
Weight
338 g
Certifications
EMC: CE (EN 55032 Class A, EN 55035), UKCA (BS EN 55032: 2015 +A11: 2020, BS EN 55035: 2017 +A11: 2020), FCC (FCC Part 15 Subpart B Class A), RCM (AS/NZS CISPR 32 Class A), VCCI (VCCI-CISPR 32 Class A), ICES-003 Issue 7; Safety: UL (UL 62368-1), CB (IEC/EN 62368-1 including annex Y, IEC/EN 62471); Environment: IK10 (IEC 60529), IP66 (IEC 60529); IA: BIS (IS 13252), BSMI (EMC: CNS 15936, Safety: CNS 15598-1)
Operating Temperature
Starting Temperature:
-10°C ~ 55°C (14°F ~ 131°F)
Working Temperature:
-30°C ~ 55°C (-22°F ~ 131°F)
Humidity
98% RH (non-condensing)
|
|
| System Requirements |
Operating System
Microsoft Windows 10/8/7
Mac 10.12 (Chrome only)
Web Browser
Chrome 58.0 or above
Internet Explorer 10/11
Other Players
VLC: 1.1.11 or above
Included Accessories
Packing Contents
Quick installation guide, mounting bracket, tilt bracket, screw pack
DORI (EN 62676-4 Standard)
Detect (25PPM/ 8PPF)
51.5 m (168.9 ft)
Observe (63PPM/ 19PPF)
20.6 m (67.5 ft)
Recognize (125PPM/ 38PPF)
10.3 m (33.7 ft)
Identify (250PPM/ 76PPF)
5.1 m (16.7 ft)
|
