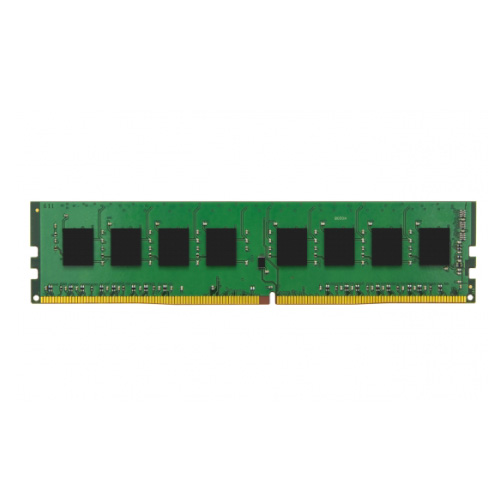

8GB DDR-4 2666 MHZ 1.20V Kingston
KVR26N19S8/8
8GB DDR4-2666 CL19 SDRAM (Synchronous DRAM), 1Rx8, memory module, based on eight 1G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-2666 timing of 19-19-19 at 1.2V. Each 288-pin DIMM uses gold contact fingers.
• Power Supply: VDD=1.2V Typical
• VDDQ = 1.2V Typical
• VPP - 2.5V Typical
• VDDSPD=2.2V to 3.6V
• Nominal and dynamic on-die termination (ODT) for
data, strobe, and mask signals
• Low-power auto self refresh (LPASR)
• Data bus inversion (DBI) for data bus
• On-die VREFDQ generation and calibration
• Single-rank
• On-board I2 serial presence-detect (SPD) EEPROM
• 16 internal banks; 4 groups of 4 banks each
• Fixed burst chop (BC) of 4 and burst length (BL) of 8
via the mode register set (MRS)
• Selectable BC4 or BL8 on-the-fly (OTF)
• Fly-by topology
• Terminated control command and address bus
• PCB: Height 1.23” (31.25mm)
• RoHS Compliant and Halogen-Free
|
Brand
|
Kingston
|
|
Memory Capacity
|
8GB
|
|
Module Quantity
|
1 Module
|
|
Speed
|
2666MHz (PC4-21300)
|
|
Error Check
|
Non-ECC
|
|
Model/Series/Type
|
ValueRAM
|
|
Module Type
|
DIMM
|
|
CAS Latency
|
CL19
|
|
Form Factor
|
DDR4
|
|
Rank
|
1R (Single Rank)
|
|
Warranty
|
Lifetime
|
|
Pins
|
288 Pin
|
|
Operating Temperature
|
0°C to 85°C
|
|
Memory Voltage
|
1.2v
|
|
Memory Depth
|
1G
|
|
Product Condition
|
New
|
|
Product Type/Family
|
RAM
|
|
Data Width
|
X64
|
|
