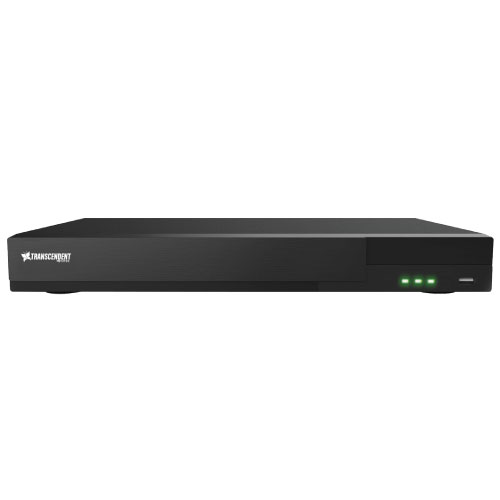

8 CH 8MP 4K 5-IN-1 DVR 2xSATA VITEK

8 CH 8MP 4K 5-IN-1 DVR 2xSATA VITEK

Item #
DVT808V
Brand
Vitek
Model
VT-TR8HA820

Color
Black
Warranty
3 Year /1 Year OTC /2 Year MFG
Condition
Retail Box
If out of stock
3 to 5 Days
Add On Products
Product Description

The Ultra Versatile and User friendly Transcendent High Definition 5-in-1 Analog (Coax Based) Digital Recorders support Recording and Playback of TVI/AHD format cameras up to 5MP (Lite Mode) and CVI up to 4MP (Lite Mode) and offer H.265 Compression.

Although they are DVRs in nature, they also offer maximum IP channel support in full Hybrid Mode. These recorders share the same client, CMS and mobile applications as the Transcendent NVRs.

Camera options include fixed, and Varifocal Motorized Auto Focus with COC and vandal/weather resistant models. Control Drivers are available for various Automation Systems.

Specifications

• Video Input 8 Channels HD-TVI / AHD / CVI / Analog BNC Inputs Supporting up to 8 MegaPixel
• IP Camera Support 8 MegaPixel @ 30fps Max
• Compression H.265 High Profile
• Analog Recording 8MP (4K): 7fps / 4K Lite: 15fps / 5MP: 12 fps / 5MP Lite: 20fps / 4MP: 15fps / 4MP Lite/1080P/720P/WD1: 30fps
• Network (IP) Recording 8MP / 5MP / 4MP / 3MP / 1080P / 960P / 720P Real Time (30fps)
• Local Playback 8 CH
• OS Embedded Linux
• OS Embedded Linux
• Video Output 1 x HDMI (4K – 3840×2160, 1920×1080, 1280×1024) / 1 x VGA (1080p) / 1 x BNC Spot (Analog)
• Multi Operation Pentaplex: Live Display / Record / Playback / Backup / Remote Access
• Audio Input: RCA x 8 / Output: RCA x 1
• Two-Way Audio YES
• Bit Rate 32Kbps ~ 5Mbps
• Encode VBR / CBR
• Quality Levels 6 level
• Recording Modes Manual / Timer / Motion / Sensor
• Search Time Sliced, Time, Event, Tag Management
• Function Play, Pause, FF ,FB, Digital zoom
•  Alarm In/Out 8 Alarm inputs / 2 Alarm Output
• Alarm Modes Sensor, Motion, Video loss
• Alarm Triggering Record, PTZ move, Relay out, E-mail, etc
• Network Interface RJ45 x 1
• Remote Viewing CMS / Web Browser / Mobile Platforms
• Remote Playback 8CH
• Dual-stream Individual Network Video Stream and local recording stream, set separately
• RS485 RS485 x1 (for PTZ)
• PTZ Protocol Control over Coax, Pelco D / Pelco P
Network Protocols TCP/IP, UDP, DHCP, DNS, PPPOE, DDNS, SMTP, RTSP, HTTP
• SATA HDD Up to 20TB (2 x 10TB) + E-SATA x 1
• USB 2 x USB 2.0 for mouse and USB backup devices
• Accessories Remote controller, SATA cable, USB mouse
• Dimensions (WxHxD) 15” x 1.75” x 11” (381mm × 44.45mm × 254mm)
