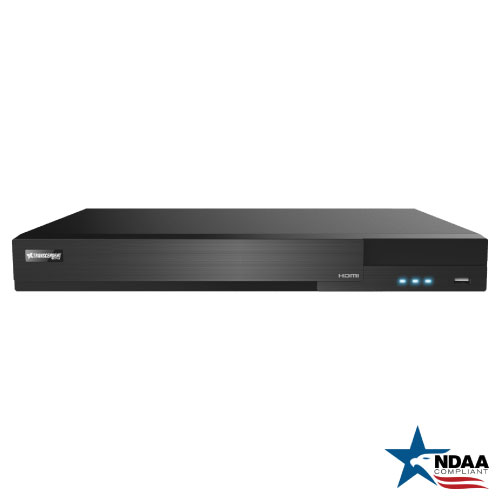

8 CH 8MP 4K 5-IN-1 DVR 2xSATA VITEK
• NDAA COMPLIANT
• 8 Channel HD-TVI / AHD / CVI / CVBS BNC Inputs + IP Camera Support
• 8 Additional IP Cameras (up to 8MP) can be added for a total of 16 Cameras. IP Video Input: 8MP[4K]@20fps, 5MP [and lower]@30fps
• Analog Channel Recording: 8MP [4K]@56fps, 4K Lite@120fps, 5MP@96fps, 5MP Lite@160fps, 4MP/3MP@120fps, 4MP Lite/1080P/720P/WD1/D1@240fps
• H.265 / H.264 Compression
• HDMI, VGA, and BNC (Spot) Video Outputs
• 8 Ch. Audio In + 1 Ch. Audio Out, 2-Way Audio Takes up 1 input Ch.
• Smart Search – Highlight colors to display recordings in a certain time period: different colors refer to different events
• PTZ Control over Coax (CoC), RS-485
• 4 Alarm inputs / 1 Alarm Output
• Pentaplex: Live Display / Record / Playback / Backup / Remote Access
• Free VMS (Video Management Software) Lite and Standard versions available for organized viewing of multiple sites
[For Enterprise version please contact your Vitek Reseller]
• 2 Internal SATA2/SATA3 HDD Slot supporting up to 24TB (2 × 12TB HDD) + 1 x E-SATA
• Applications for iOS & Android
• Remote Viewing over the Internet via Web Browser or LAN
• Mac OS® Client & CMS Central Management Software Included
• Supports both Dynamic and Static IP Addresses
• Control locally via USB Mouse or IR Remote Control
• 3 Year Warranty
|
Video Input
|
8 Channels HD-TVI / AHD / CVI / Analog BNC Inputs Supporting up to 8 MegaPixel
|
|
Hybrid Inputs
|
8 HD Analog inputs may be substituted for IP Cameras (plus 8 additional IP Cameras up to 8MP) for a complete Hybrid solution (up to 16 cameras)
|
|
IP Camera Support
|
8 MegaPixel @ 30fps Max
|
|
Compression
|
H.265 High Profile
|
|
Analog Recording
|
8MP [4K]@56fps, 4K Lite@120fps, 5MP@96fps, 5MP Lite@160fps, 4MP/3MP@120fps, 4MP Lite/1080P/720P/WD1/D1@240fps
|
|
Network (IP) Recording
|
8MP / 5MP / 4MP / 3MP / 1080P / 960P / 720P Real Time (30fps)
|
|
Local Playback
|
8 CH
|
|
OS
|
Embedded Linux
|
|
Video Output
|
1 x HDMI (4K – 3840×2160, 1920×1080, 1280×1024) / 1 x VGA (1080p) / 1 x BNC Spot (Analog)
|
|
Multi Operation
|
Pentaplex: Live Display / Record / Playback / Backup / Remote Access
|
|
Audio Input:
|
RCA x 8 / Output: RCA x 1
|
|
Two-Way Audio
|
YES
|
|
Bit Rate
|
32Kbps ~ 5Mbps
|
|
Multi Screen Display
|
1 / 4 / 6 / 8 / 9 / 13 /16
|
|
Encode
|
VBR / CBR
|
|
Quality Levels
|
6 level
|
|
Recording Modes
|
Manual / Timer / Motion / Sensor
|
|
Search
|
Time Sliced, Time, Event, Tag Management
|
|
Function
|
Play, Pause, FF ,FB, Digital zoom
|
|
Alarm
|
In/Out 8 Alarm inputs / 2 Alarm Output
|
|
Alarm Modes
|
Sensor, Motion, Video loss
|
|
Alarm Triggering
|
Record, PTZ move, Relay out, E-mail, etc
|
|
Network Interface
|
RJ45: 10/100Mbps × 1
|
|
Remote Viewing
|
CMS / Web Browser / Mobile Platforms
|
|
Remote Playback
|
8CH
|
|
Dual-stream
|
Individual Network Video Stream and local recording stream, set separately
|
|
Remote Users
|
10 users online, dual stream
|
|
RS485
|
RS485 x1 (for PTZ)
|
|
PTZ Protocol
|
Control over Coax (CoC) Pelco D / Pelco P
|
|
Network Protocols
|
TCP/IP, UDP, DHCP, DNS, PPPOE, DDNS, SMTP, RTSP, HTTP
|
|
SATA HDD
|
Up to 24TB (2 x 12TB)
|
|
USB
|
USB 2.0 x 2
|
|
Accessories
|
Remote controller, SATA cable, USB mouse
|
|
Power Consumption
|
= 15W (Without HDD)
|
|
Power Supply
|
DC: 12V
|
|
Dimensions (WxHxD)
|
14.96 × 10.55 × 1.77” / 380 × 268 × 45mm - Weight 3.70lbs (1.68kg) Net w/o HDD, 6.28lbs (2.85kg) Shipping Weight w/o HDD
|
