System Information
|
Model

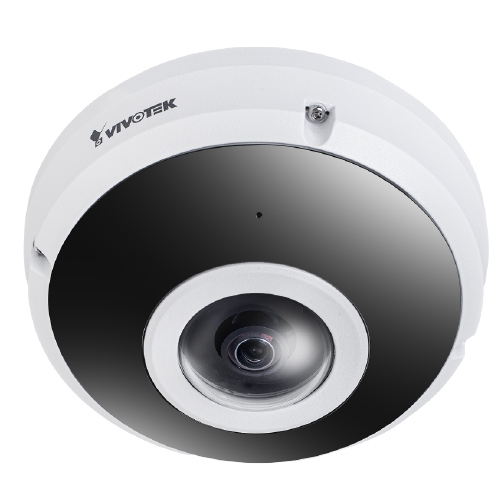

FE9382-EHV-v2
CPU
Multimedia SoC (System-on-Chip)
Flash
8 GB
RAM
2 GB
|
|
| Camera Features |
Image Sensor
1/1.8" Progressive CMOS in 3840x2160
Max. Resolution
2048x2048
Lens Type
Fixed-focal
Focal Length
f = 1.245 mm
Aperture
F1.6
Iris Type
Fixed iris
Field of View
180° (Horizontal)
180° (Vertical)
180° (Diagonal)
Shutter Time
1/5 sec. to 1/32,000 sec.
WDR Technology
WDR Pro
Day/Night
Yes
Removable IR-cut Filter
Yes
IR Illuminators
Built-in IR illuminators, effective up to 20 meters (50IRE) with Smart IR II, IR LED*4
Minimum Illumination
0.065 lux @ F1.6 (Color)
<0.001 lux @ F1.6 (B/W)
0 lux with IR illumination on
Pan/Tilt/Zoom Functionalities
ePTZ: 12x digital zoom (12x on IE plug-in)
Storage
Seamles Recording to MicroSD/SDHC/SDXC card and recording to network-attached storage (NAS)
|
|
Video
|
Video Compression
H.265, H.264, MJPEG
Maximum Frame Rate
30fps @ 2048x2048 (WDR On)
Maximum Streams
3 video streams (Up to 8 configurable profiles)
S/N Ratio
69.6 dB
Dynamic Range
120 dB
Video Streaming
Adjustable resolution, quality and constant bit rate control, Smart Stream III
Image Settings
General settings: video title and time stamp overlay, video orientation (flip, mirror), day/night settings; Illuminators: illuminators, anti-overexposure; Image settings: white balance, image adjustment (brightness, contrast, saturation, sharpness, gamma curve), defog, 3DNR, scene mode (auto, deblur); Exposure: BLC, HLC, exposure control (exposure level, iris adjustment, exposure time, gain control, iris mode), AE speed adjustment, WDR; Privacy mask; Scheduled profile settings
Display Mode
Client Dewarping
Ceiling mounted: 1O Fisheye, 1P Panoramic, 2P Two Panoramics, 1R One Region, 4R Four Regions, 1O3R One Fisheye Three Regions, 1O8R One Fisheye Eight Regions
Wall mounted: 1O Fisheye, 1P Panoramic, 1R One Region, 4R Four Regions, 1P2R One Panoramic Two Regions, 1P3R One Panoramic Three Regions, 1O3R, One Fisheye Three Regions
Local Dewarping
Ceiling mounted: 1O Fisheye, 1P Panoramic, 2P Two Panoramics, 1R One Region, 4R Four Regions
Wall mounted: 1O Fisheye, 1P Panoramic, 1R One Region, 4R Four Regions
|
|
Audio
|
Audio Capability
Two-way Audio
Audio Compression
G.711, G.726
Audio Interface
Built-in microphone
External microphone input (FE9382-EHV-v2 (IO Cable), p/n 100273600G version only)
External line output (FE9382-EHV-v2 (IO Cable), p/n 100273600G version only)
Effective Range
5 meters
|
|
Network
|
Users
Live viewing for up to 10 clients
Security
Access list, digest authentication, HTTPS , IEEE 802.1x, password protection, secure boot, signed firmware, Trend Micro IoT Security (brute force attack event, cyberattack event, quarantine event), user access log, user account management
Protocols
802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2, UDP, UPnP
Interface
10 Base-T/100 Base-TX Ethernet (RJ-45)
*It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard.
ONVIF
Profile G, S, T supported, specification available at www.onvif.org
|
|
| Solution Integration |
Smart Motion Detection
Five-window video motion detection, people detection, time filter
Smart VCA
Intrusion detection, loitering detection, line crossing detection, unattended object detection, missing object detection, crowd detection, running detection
VADP Package
Deep Learning VCA (Smart Motion Detection, Smart VCA), Stratocast, Trend Micro IoT Security (3-year free trial)
|
|
Alarm and Event
|
Event Trigger
Audio detection, camera tampering detection, cybersecurity events (brute force attack event, cyberattack event, quarantine event), digital input, manual trigger, motion detection, periodical trigger, recording notification, SD card life expectancy, shock detection, system boot
Event Action
Event notification via digital output, email, HTTP, FTP, NAS server, SD card
File upload via email, HTTP, FTP, NAS server, SD card
|
|
| General |
Connectors
RJ-45 cable connector for 10/100 Mbps Network/PoE connection
*FE9382-EHV-v2 (IO Cable), p/n 100273600G version (DC 12V power input, audio line input, audio line output, digital input*1, digital output*1)
|
|
| LED Indicator |
System power and status indicator
|
|
| Power Input |
Power Input
IEEE 802.3af PoE Class 0
Power Consumption
Max. 12.5 W/5 W (IR on/off)
|
|
| Dimensions |
Ø 150 x 68.2 mm
Weight
701 g
|
|
| Certifications |
EMC: CE (EN 55032 Class A, EN 55024), FCC (FCC Part 15 Subpart B Class A), VCCI (VCCI-CISPR 32 Class A); Safety: UL (UL 62368-1), CB (IEC/EN 62368-1, IEC/EN 60950-22); Environment: IK10 (Metal housing; IEC 62262), IP66 (IEC 60529), NEMA (NEMA 250 Type 4X); IA: BIS (IS 13252)
Operating Temperature
|
|
| Starting Temperature: |
-20°C ~ 55°C (-4°F ~ 131°F)
Working Temperature:
-40°C ~ 60°C (-40°F ~ 140°F) (IR off)
-40°C ~ 55°C (-40°F ~ 131°F) (IR on)
|
|
| Humidity |
98% RH (non-condensing)
|
|
| Warranty |
36 months
|
|
| System Requirements |
Operating System
Microsoft Windows 10/8/7
Mac 10.12 (Chrome only)
|
|
| Web Browser |
Chrome 58.0 or above
Other Players
VLC: 1.1.11 or above
|
|
| Included Accessories |
Packing Contents
Quick installation guide, product labels, alignment sticker, L-shaped wrench, screw pack, waterproof accessory pack, sunshield, conduit bracket, I/O cable
|
