5MP 3.6mm IR SNV Bullet VIVOTEK

H.265 Compression Technology
20 fps @ 2560x1920 (WDR Pro on)
SNV (Supreme Night Visibility) for Low Light Conditions
WDR Pro for Unparalleled Visibility in Extremely Bright and Dark Environments
Smart Stream III to Optimize Bandwidth Efficiency
Built-in IR Illuminators, Effective up to 30 Meters
Trend Micro IoT Security
Weather-proof IP66-rated and Vandal-proof IK10-rated Housing
Built-in MicroSD/SDHC/SDXC Card Slot for On-board Storage

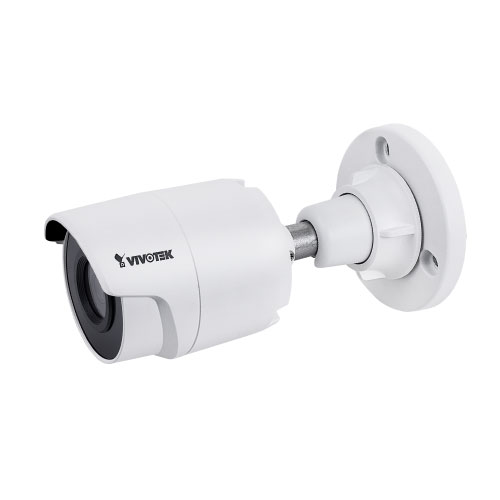

VIVOTEK’s IB9380-H is a H.265 outdoor bullet network camera equipped with a 5-Megapixel sensor, enabling resolution of 2560x1920 at 20 fps. Featuring VIVOTEK SNV and WDR Pro technology, the IB9380-H is capable of capturing high-quality imagery in both high contrast and low light environments.

The IB9380-H deploys a 3.6mm lens and is equipped with IR illuminators with a 30-meter effective range for better night visibility. Further, to provide reliable coverage in harsh outdoor environments, the IB9380-H is encased in IP66 and IK10 housing.

By employing VIVOTEK's Smart Stream III technology and H.265 codec support, the IB9380-H is able to reduce bandwidth usage by up to 90%* while maintaining supreme image quality. Additionally, the VADP (VIVOTEK Application Development Platform) allows users to customize applications for the ever-expanding number of user scenarios in a diversifying surveillance markeTitle

Overview

System Information	Model     IB9380-H CPU     Multimedia SoC (System-on-Chip) Flash     128 MB RAM     512 MB
Model	IB9380-H
Other Players	VLC: 1.1.11 or above
Web Browser	Chrome 58.0 or above     Internet Explorer 10/11
Certifications	EMC: CE (EN 55032 Class B, EN 55024), FCC (FCC Part 15 Subpart B Class B), RCM (AS/NZS CISPR 32 Class B), VCCI (VCCI-CISPR 32 Class B); Safety: UL (UL 62368-1), CB (IEC/EN 62368-1, IEC/EN 60950-22, IEC/EN 62471); Environment: IK10 (IEC 62262), IP66 (IEC 60529); IA: BIS (IS 13252)
Camera Features	Image Sensor     1/2.7" Progressive CMOS Max. Resolution     2560x1920 (5MP) Lens Type     Fixed-focal Focal Length     f = 3.6 mm Aperture     F2.0 Iris Type     Fixed iris Field of View     76° (Horizontal)     59° (Vertical)     100° (Diagonal) Shutter Time     1/5 sec. to 1/32,000 sec. WDR Technology     WDR Pro Day/Night     Yes Removable IR-cut Filter     Yes IR Illuminators     Built-in IR illuminators, effective up to 30 meters with Smart IR, IR LED*2 Minimum Illumination     0.03 lux @ F2.0 (Color)     <0.005 lux @ F2.0 (B/W)     0 lux with IR illumination on Tilt Range     90° Rotation Range     180° Pan/Tilt/Zoom Functionalities     ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in) Storage     Seamless Recording to MicroSD/SDHC/SDXC card and recording to network-attached storage (NAS)
Video	Video Compression     H.265, H.264, MJPEG Maximum Frame Rate     20 fps @ 2560x1920 Maximum Streams     3 video streams (Up to 8 configurable profiles) S/N Ratio     67 dB Dynamic Range     120 dB Video Streaming     Adjustable resolution, quality and bit rate control, Smart Stream III Image Settings     General settings: video title and time stamp overlay, video orientation (flip, mirror, rotation), day/night settings; Illuminators: illuminators, anti-overexposure; Image settings: white balance, image adjustment (brightness, contrast, saturation, sharpness, gamma curve), defog, 3DNR; Exposure: BLC, HLC, exposure control (exposure level, exposure time, gain control), AE speed adjustment, WDR; Privacy mask; Scheduled profile settings
Network	Users     Live viewing for up to 10 clients Security     Access list, digest authentication, HTTPS, IEEE 802.1x, password protection, Trend Micro IoT Security (brute force attack event, cyberattack event, quarantine event), user access log, user account management Protocols     802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2, UDP, UPnP Interface     10 Base-T/100 Base-TX Ethernet (RJ-45)     *It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard. ONVIF     Profile G, S, T supported, specification available at www.onvif.org
Solution Integration	Video Motion Detection     Five-window video motion detection VADP Package     Stratocast, Trend Micro IoT Security (1-year free trial), VIVOCloud
Alarm and Event	Event Trigger     Camera tampering detection, cybersecurity events (brute force attack event, cyberattack event, quarantine event), manual trigger, motion detection, periodical trigger, recording notification, SD card life expectancy, system boot Event Action     Event notification via email, HTTP, FTP, NAS server, SD card, push notification     File upload via email, HTTP, FTP, NAS server, SD card General
Connectors	RJ-45 cable connector for 10/100Mbps Network/PoE connection
Warranty	36 months
