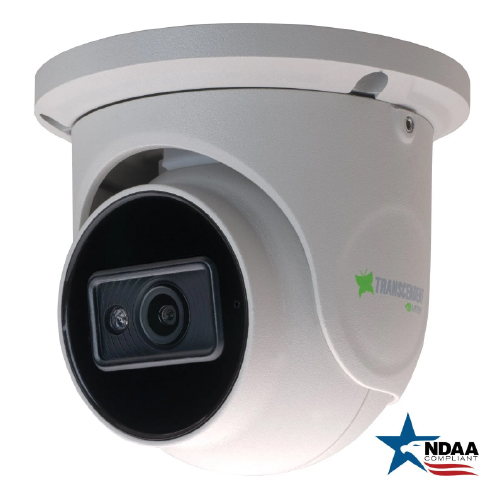

Transcendent Series 5 MP Indoor/Outdoor WDR IP Fixed Turret Camera with Matrix IRs
• 1/2.7” 5.0 MegaPixel CMOS Image Sensor
• Up to 20fps live view @ 5.0 MegaPixel (2592×1944)
• 2.8mm Fixed Iris Lens
• Supports Still Image Recording Function
• 1 Matrix IR LEDs with 100’ IR Range
• Built-in Mic*
• Digital Wide Dynamic Range (D-WDR)
• True Mechanical Day/Night function by ICR
• XD-DNR (3D & 2D DNR) Noise Reduction
• Features: On Board Motion Detection, Privacy Masking, Region of Interest, Exception, Line Crossing, Intrusion, Object Detection / Removal (Museum Search)
• H.265, H.264 & MJPEG Compression
• Remote Viewing via CMS, Internet Explorer, and iOS & Android Apps
• ONVIF Compliant
• MicroSD Memory Card Slot for Local Recording supporting up to 128GB
• IP67 Weather Resistance
• Optional Junction Box Mounts (VT-TJB01, VT-TJB08) and Wall Mount (VT-TWMT-3) Available
• 12VDC & PoE (Power over Ethernet) Operation
• Available in Ivory of Charcoal (VTC-TNT5RFEB-2)
|
Image Sensor
|
1/2.7” 5.0 Megapixel Progressive Scan CMOS
|
|
Image Size
|
5 MegaPixel 2592×1944
|
|
Resolution
|
5 MP (2592×1944) / 4 MP (2592×1520) / 3 MP (2304×1296) / 1080P (1920×1080) / 720P (1280×720) / D1/CIF (480×240)
|
|
Min. Illumination
|
0 Lux (IR LED ON)
|
|
| Lens |
2.8mm Fixed Iris Lens
|
|
Still Image Recording
|
Yes, Supports Still Image Recording Functions
|
|
Day/Night
|
True Day/Night by ICR
|
|
| Matrix LED |
1
|
|
Audio
|
Built-in Mic*
|
|
| IR Distance |
100'
|
|
Video Compression
|
H.265 / H.264 / MJPEG
|
|
| Multi-Stream |
1~20fps: 5 MP, 1~30fps: 4 MP, 3 MP, 1080P, 720P, D1, CIF, 480×240
|
|
| WDR |
Digital Wide Dynamic Range (D-WDR)
|
|
| DNR |
XD-DNR (2D-DNR & 3D-DNR)
|
|
| XD-DNR (2D-DNR & 3D-DNR) |
VBR (Five Levels of Adjustment) / CBR (Adjustable)
|
|
Image Setting
|
Saturation, Brightness, Contrast, WDR, Noise reduction
|
|
| Built in Features |
On Board Motion Detection, Privacy Masking, Region of Interest, Exception, Line Crossing, Intrusion, Object Detection / Removal (Museum Search)
|
|
ROI
|
Max 3 detailed areas can be viewed
|
|
| Smart Alarm |
Motion Alarm / Sensor Alarm
|
|
| Network |
RJ45
|
|
Local Storage
|
Built-in micro SD card slot up to 128GB
|
|
Remote Viewing
|
CMS / Web Browser / Mobile (iOS/Android)
|
|
| Supported Browsers |
Internet Explorer, Chrome and Firefox with IE Tab
|
|
Connection Protocol
|
ONVIF
|
|
| Weather / Impact Resistance |
IP67 Weather Resistance
|
|
Power Input
|
12VDC / PoE
|
|
| Power Consumption |
(12VDC) IR On: 120mA / IR Off: 480mA
|
|
| Power Consumption |
(PoE) < 5W
|
|
| Working Environment |
-4~122 / 10%~90% Humidity
|
|
Weight
|
16.58 oz. / 1.03 lbs. / 473g
|
|
| Dimensions |
3.77” x 4.25” (95.7 × 108mm) Dia x H
|
|
*
|
Please research local, state, and federal laws regarding the implementation and use of audio surveillance
|
