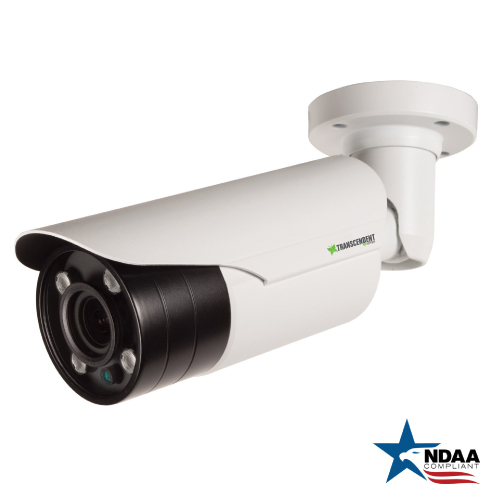

5 MegaPixel 4-in-1 Indoor / Outdoor HDA Dual Voltage (12VDC/24VAC) Motorized Varifocal BulletCamera
• 1/2.8” 5.69 Megapixel Sony® Starvis™ Progressive Scan CMOS Sensor
• NDAA Compliant
• 20fps live view @ 2592 x 1944
• True Day/Night by IR Cut Filter
• HD-TVI / HD-CVI / AHD / 960H CVBS Video Output (Selectable)
• Motorized 2.7~13.5mm MegaPixel IR Corrected Auto Focus Varifocal Lens
• 4 Integrated High Power Dynamic IR LEDs with up to 165’ IR Range
• XD-DNR Noise Reduction (3D & 2D-DNR)
• True Wide Dynamic Range (WDR)
• Auto White Balance
• IP66 Weather Resistance
• Supports Control over COAX (CoC)
• Over 1500’ HD Video Transmission (Depending on cable characteristics and integrity)
• Optional Junction Box Available (VT-TJB04)
• 12VDC / 24VAC Dual Voltage Operation
• 3 Year Warranty
|
Image Sensor
|
1/2.8” 5.69 Megapixel Sony® Starvis™ Progressive Scan CMOS Sensor
|
|
NDAA Compliant
|
Yes
|
|
Signal System
|
PAL/NTSC
|
|
Effective Pixels
|
2592 (H) x 1944 (V)
|
|
| Resolution / Video Output |
Up to 5MP
TVI: 1080P@25fps, 1080P@30fps, 4MP@25fps, 4MP@30fps, 5MP@12.5fps, 5MP@20fps
AHD: 1080P@25fps, 1080P@30fps, 4MP@25fps, 4MP@30fps, 5MP@12.5fps, 5MP@20fps
CVI: 1080P@25fps, 1080P@30fps, 4MP@25fps, 4MP@30fps
|
|
Lens
|
Motorized 2.7~13.5mm Motorized Varifocal Lens
|
|
| Day/Night |
True Day/Night by ICR (Extern, Color, B&W, Auto)
|
|
| Min. Illumination |
0.001 Lux @ f2 (B/W) / 0.1Lux @ F2.0 (Color) / 0 Lux (IR ON)
|
|
IR LEDs
|
4x High Power Dynamic IR LEDs
|
|
IR Distance
|
Up to 165’
|
|
| DSS (Sens-Up) |
OFF / X2 ~ X32
|
|
| S/N Ratio |
=50dB (AGC Off)
|
|
WDR
|
True Wide Dynamic Range (WDR)
|
|
| Digital Noise Reduction |
XD-DNR (2D-DNR & 3D-DNR)
|
|
White Balance
|
Auto / Present / External / Manual
|
|
| BLC |
Adjustable
|
|
| Defog |
Adjustable
|
|
| Privacy Mask |
16 Programmable Areas
|
|
Motion Detection
|
4 Programmable Areas
|
|
| Control over COAX (CoC) |
YES
|
|
Transmission Distance
|
Up to 1500’ (Depending on cable characteristics & integrity)
|
|
| Power Input |
Dual Voltage: 12VDC / 24VAC
|
|
| Power Consumption |
<7.5W
Power Consumption (12VDC) 600mA (IR ON) / 300mA (IR OFF)
Power Consumption (24VAC) 300mA (IR ON) / 150mA (IR OFF)
|
|
Weather Resistance
|
IP66
|
|
| Storage Temperature |
-4°~122°
|
|
Working Conditions
|
14°~122° / Humidity 90% or less
|
|
Weight
|
31.04 oz. / 1.94 lbs. / 880g
|
