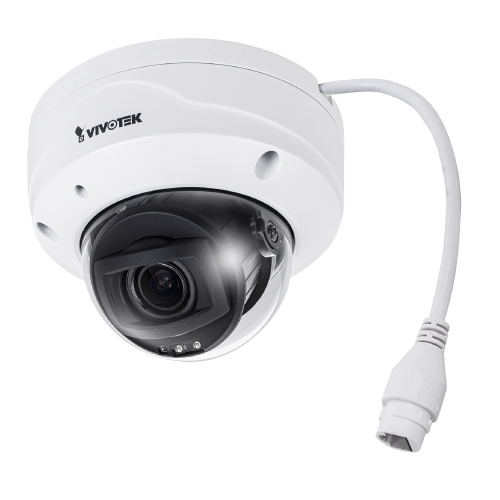

5MP 2.8-12mm Vivotek H.265 IP Dome WDR

Product Description

Key Features
H.265 Compression Technology
20 fps @ 2560x1920 (WDR Pro on)
2.8~12 mm, Remote Focus
SNV (Supreme Night Visibility) for Low Light Conditions
WDR Pro for Unparalleled Visibility in Extremely Bright and Dark Environments
Smart Stream III to Optimize Bandwidth Efficiency
Built-in IR Illuminators, Effective up to 30 Meters
Trend Micro IoT Security
Weather-proof IP66-rated and Vandal-proof IK10-rated Housing
Built-in MicroSD/SDHC/SDXC Card Slot for On-board Storage
Built-in Microphone

Overview
VIVOTEK’s FD9388-HTV is a H.265 outdoor dome network camera equipped with a 5-Megapixel sensor, enabling resolution of 2560x1920 at 20 fps. Featuring VIVOTEK SNV and WDR Pro technology, the FD9388-HTV is capable of capturing high-quality imagery in both high contrast and low light environments.

The FD9388-HTV deploys a remote focus lens for different user scenarios. IR illuminators are equipped with a 30-meter effective range for better night visibility. Further, to provide reliable coverage in harsh outdoor environments, the FD9388-HTV is encased in IP66 and IK10 housing.

By employing VIVOTEK's Smart Stream III technology and H.265 codec support, the FD9388-HTV is able to reduce bandwidth usage by up to 90%* while maintaining supreme image quality. Additionally, the VADP (VIVOTEK Application Development Platform) allows users to customize applications for the ever-expanding number of user scenarios in a diversifying surveillance market.

Camera	Sensor    5 MP 1/2.7" CMOS Focal Length    2.8 to 12mm Maximum Aperture    f/1.4 to 2.8 Zoom    Optical: 4.3x Digital: 48x Lens Field of View    Horizontal: 90 to 30° Vertical: 65 to 23° Diagonal: 115 to 38° IR Cut Filter    Mechanical Day/Night    Yes Minimum Illumination    Color: 0.035 Lux B&W: 0 Lux Shutter Speed    1/32000 to 1/5 Seconds Camera Angle Adjustment    Horizontal: 0 to 353° Vertical: 0 to 75°
Video	Streaming Resolution    2560 x 1920 at 20 fps Supported Video Compression    H.264, H.265, MJPEG Multi-View Streaming    Yes, 3 Streams
Audio	1- or 2-Way Audio    One-Way Audio Formats    G.711, G.726 Built-In Mic    Yes
Pan & Tilt	None
Networking	Security    HTTPS, IEEE 802.1X Supported Protocols    ARP, CIFS/SMB, DDNS, DHCP, DNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, NTP, PPPoE, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), SSL/TLS, TCP, UDP, UPnP
System Integration	Application Programming Interface (API)    ONVIF Profiles G & S Analytics    Five-Window Video Motion Detection OS Compatibility    Windows 7 Windows 8 macOS 10.12 *As of March, 2020: Check with manufacturer for the most up-to-date compatibility
Sensors & Alarms	Event Trigger    Yes Event Action    Recording, Notification, Alarm Data Streaming    Yes
Hardware	Memory    512 MB RAM / 128 MB Flash Media/Memory Card Slot    Single Slot: microSD/microSDHC/microSDXC [128 GB Maximum] External Storage Options    NAS
Power	Power Source    PoE 802.3af (15 W) Power Consumption    12.95 W
Environmental	Operating Temperature    -22 to 140°F / -30 to 60°C Startup Temperature    14 to 140°F / -10 to 60°C Operating Humidity    90% IP Rating    IP66 IK Rating    IK10
General	Inputs/Outputs    1 x RJ45 Illumination    IR LEDs up to 98.4' / 30 m Video Management Software    VAST, Shepherd Supported Languages    English French German Italian Japanese Portuguese Simplified Chinese Spanish Traditional Chinese Dimensions    ø: 5.3 x H: 4.1" / ø: 133.7 x H: 103.8 mm Weight    1.8 lb / 819 g
Packaging Info	Package Weight    2.535 lb Box Dimensions (LxWxH)    7.4 x 7.3 x 5.8"
