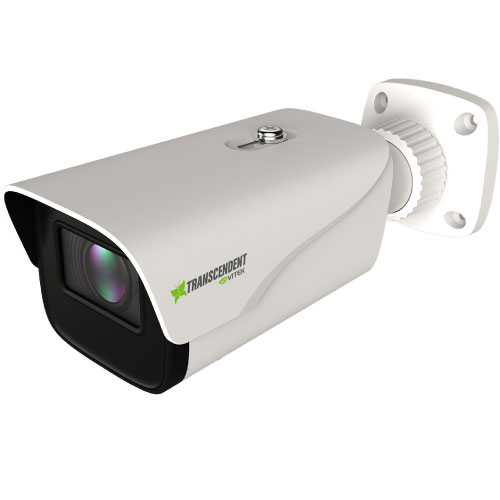

5MP 2.8-12MM MZ Bullet w/Analytics VITEK

Item #

CIB50VTM

Brand

Vitek

Model

VTC-TNB5RME

Color

White

Warranty

3 Year /1 Year OTC /2 Year MFG

Condition

Retail Box

If out of stock

3 to 5 Days

Add On Products

4 CH NVR W/4 PoE 8MP H.265 4K Vitek

NVVT048T

8 CH NVR W/8 PoE 8MP 4k NDAA

NVVT088TN

16CH NVR W/16 PoE 12MP H.265 4K NDAA

NVVT16PF1

32CH NVR W/16 PoE NO HD H.265 4K Vitek

NVVT32N

64CH Vitek NVR 4K Output 8x HD RAID

NVVT64R

Product Description

Limited Quantities Available

Transcendent Series 5 MegaPixel Indoor/Outdoor WDR IP Camera with 2 Matrix IRs

1/2.7” 5.0 MegaPixel CMOS Image Sensor
Up to 20fps live view @ 5.0 MegaPixel (2592×1944)
2.8~12mm Motorized Varifocal Lens
2 Matrix IRs with up to 165’ IR Range
Digital Wide Dynamic Range (D-WDR)
True Mechanical Day/Night function by ICR
XD-DNR (3D & 2D-DNR) Noise Reduction
On Board Motion Detection, Privacy Masking, and Region of Interest
H.265, H.264 & MJPEG Compression
Remote Viewing via CMS, Internet Explorer, and iOS & Android Apps
ONVIF Compliant
IP67 Weather Resistance
Optional Junction Box Mounts Available (VT-TJB07, VT-TJB08)
12VDC & PoE (Power over Ethernet) Operation

Transcendent Series High Definition 5 Megapixel IP Network Cameras offer unprecedented performance and value. These simple, easy to install, attractively styled, IP Network Cameras transmit over remote viewing via CMS, Internet Explorer, and iOS & Android Apps.


Image Sensor	1/2.7” 5.0 Megapixel Progressive Scan CMOS

Image Size	5 MegaPixel 2592×1944

Resolution	5 MP (2592×1944) / 4 MP (2592×1520) / 3 MP (2304×1296) / 1080P (1920×1080) / 720P (1280×720) / D1/CIF (480×240)

Min. Illumination	0 Lux (IR LED ON)

Lens Motorized	2.8-12mm

Day/Night	True Day/Night by ICR

IR LEDs	2 Matrix IRs

IR Distance	165’

Video Compression	H.265 / H.264 / MJPEG

Multi-Stream	1~20fps: 5MP, 1~30fps: 4MP, 2K, 3MP, 1080P, 720P

WDR	Digital WDR

DNR	XD-DNR (2D-DNR & 3D-DNR)

Quality	VBR (Five Levels of Adjustment) / CBR (Adjustable)

Image Setting	Saturation, Brightness, Contrast, WDR, Noise reduction

Smart Alarm	Motion Alarm

Region of Interest	Up to 3 areas can be configured

Network	RJ45

Remote Viewing	CMS / Web Browser / Mobile (iOS/Android)

Supported Browsers	Internet Explorer, Chrome and Firefox with IE Tab

Connection Protocol	ONVIF

Weather Resistance	IP67 Weather Resistance

Power Input	12VDC / PoE

Power Consumption	(12VDC) 210mA (IR Off) / 500mA (IR On)

Power Consumption	(PoE) <10 W

Working Environment	-4~122 / 10%~90% Humidity

Weight	21.16 oz / 1.322 lbs. / 600 g

Dimensions	8.68 x 3.15” x 2.78? (220.5mm x 80.1mm x 70.5mm)
