5MP 2.8-12mm IR VF WDR Pro IP66 VIVOTEK

5MP 2.8-12mm IR VF WDR Pro IP66 VIVOTEK

Item #
CIB54VO
Brand
Vivotek
Model
IB9388-HT

Color
WHITE
Warranty
3 YEAR /1 YEAR OTC /2 YR MFG
Condition
RETAIL BOX
If out of stock
3 to 5 Days
Add On Products
Product Description

Specifications


 H.265 Compression Technology

    20 fps @ 2560x1920 (WDR Pro on)
    2.8~12 mm, Remote Focus
    SNV (Supreme Night Visibility) for Low Light Conditions
    WDR Pro for Unparalleled Visibility in Extremely Bright and Dark Environments
    Smart Stream III to Optimize Bandwidth Efficiency
    Built-in IR Illuminators, Effective up to 30 Meters
    Trend Micro IoT Security
    Weather-proof IP66-rated and Vandal-proof IK10-rated Housing
    Built-in MicroSD/SDHC/SDXC Card Slot for On-board Storage

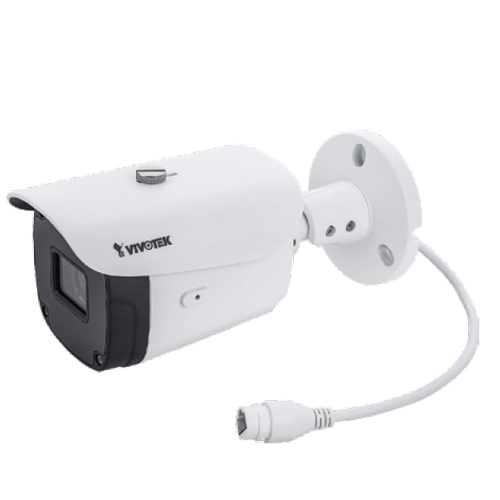

VIVOTEK’s IB9388-HT is a H.265 outdoor bullet network camera equipped with a 5-Megapixel sensor, enabling resolution of 2560x1920 at 20 fps. Featuring VIVOTEK SNV and WDR Pro technology, the IB9388-HT is capable of capturing high-quality imagery in both high contrast and low light environments.


The IB9388-HT deploys a remote focus lens for different user scenarios. IR illuminators are equipped with a 30-meter effective range for better night visibility. Further, to provide reliable coverage in harsh outdoor environments, the IB9388-HT is encased in IP66 and IK10 housing.



Camera
Sensor    5 MP 1/2.7" CMOS
Focal Length    2.8 to 12mm
Maximum Aperture    f/1.4 - f/2.8
Zoom    Digital: 48x
Optical: 4.3x
Lens Field of View    Horizontal: 90 to 30°
Vertical: 65 to 23°
Diagonal: 115 to 38°
IR Cut Filter    Mechanical
Day/Night    Yes
Minimum Illumination    Color: 0.035 Lux
B&W: 0 Lux
Shutter Speed    1/32,000 to 1/5 Seconds
Camera Angle Adjustment    Vertical: 0 to 90°
Video
Streaming Resolution    2560 x 1920 at 20 fps
Supported Video Compression    H.264, H.265, MJPEG
Multi-View Streaming    Yes, 3 Streams
Networking
Security    HTTPS, IEEE 802.1X
Supported Protocols    ARP, CIFS/SMB, DDNS, DHCP, DNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, NTP, PPPoE, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), SSL/TLS, TCP, UDP, UPnP
System Integration
Application Programming Interface (API)    ONVIF Profiles G & S
Analytics    Five-Window Video Motion Detection
Event Trigger    Yes
Event Action    Recording, Notification, Alarm
Data Streaming    Yes
System Requirements
Windows OS Support    Windows 7, 8
Mac OS Support    macOS 10.12
Environmental
Operating Temperature    -22 to 140°F / -30 to 60°C
Startup Temperature    14 to 140°F / -10 to 60°C
Operating Humidity    90%
IP Rating    IP66
IK Rating    IK10
General
Memory    512 MB RAM / 128 MB Flash
Recording Media    microSD (up to 128 GB)
Pan/Tilt    None
I/O Connections    1 x RJ45
IR Range    98.43' / 30 m
Video Management Software    VAST, Shepherd
Supported Languages    English
French
German
Italian
Japanese
Portuguese
Simplified Chinese
Spanish
Traditional Chinese
Internal Storage    None
External Storage Options    NAS
Power Source    PoE 802.3af (15 W)
Power Consumption    12.95 W
Dimensions    H: 3.3 x W: 3.3 x L: 8.4" / H: 85.0 x W: 85.0 x L: 214.5 mm
Weight    1.62 lb / 738 g
Packaging Info
Package Weight    2.17 lb
Box Dimensions (LxWxH)    9.5 x 5.8 x 5.5"
