System Information
|
Model

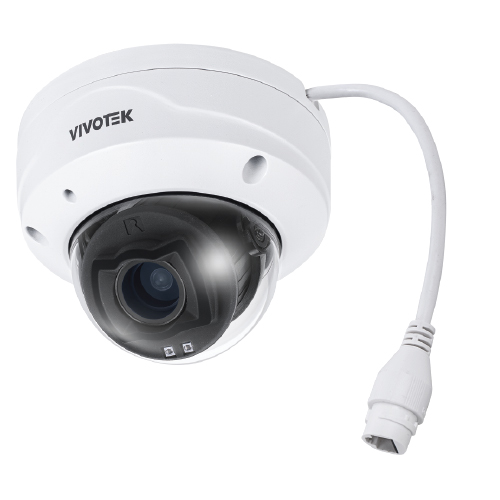

FD9383-HTV
CPU
Multimedia SoC (System-on-Chip)
Flash
8 GB
RAM
2 GB
|
|
| Camera Features |
Image Sensor
1/2.8" Progressive CMOS
Max. Resolution
2560x1920 (5MP)
Lens Type
Motorized, Vari-focal, Remote Focus
Focal Length
f = 2.8 ~ 12mm
Aperture
F1.6 ~ F3.3
Iris Type
DC iris
Field of View
95.4° ~ 28.7° (Horizontal)
68.8° ~ 21.5° (Vertical)
129.6° ~ 35.9° (Diagonal)
Shutter Time
1/5 sec. to 1/32,000 sec.
WDR Technology
WDR Pro
Day/Night
Yes
Removable IR-cut Filter
Yes
IR Illuminators
Built-in IR Illuminator up to 30 meters with Smart IR, IR LED*2
Minimum Illumination
0.04 lux @ F1.6 (Color)
0.005 lux @ F1.6 (B/W)
0 lux with IR illumination on
Pan Range
353°
Tilt Range
75°
Rotation Range
350°
Pan/Tilt/Zoom Functionalities
ePTZ: 48x digital zoom( 4x on IE plug-in, 12x built-in)
Storage
Seamless Recording to MicroSD/SDHC/SDXC card (1TB capacity supported) and recording to network-attached storage (NAS)
Built-in Installation Aids
Remote focus, remote zoom, pixel calculator
|
|
Video
|
Video Compression
H.265, H.264, MJPEG
Maximum Frame Rate
30 fps @ 2560x1920
Maximum Streams
3 video streams (Up to 8 configurable profiles)
Main Stream
30fps @2560x1920,2048x1536,1920x1440,1600x1200,1280x960,800x600,640x480 (4:3)
30fps @ 2560x1440, 1920x1080, 1600x904, 1360x768,1280x720, 640x360 (16:9)
60 fps @ 1920x1080, 1600x904, 1360x768, 1280x720, 640x360 (16:9)
2nd Stream
30fps @ 1920x1440, 1600x1200, 1280x960, 640x480 (4:3);
30fps @ 1920x1080, 1600x904, 1360x768, 1280x720, 640x360 (16:9)
60 fps @ 1920x1080, 1600x904, 1360x768, 1280x720, 640x360 (16:9)
3rd Stream
30fps @ 1280x960, 800x600, 640x480 (4:3);
30 fps @ 1280x720, 640x360 (16:9);
60 fps @ 1280x720, 640x360 (16:9)
S/N Ratio
59 dB
Dynamic Range
120 dB
Video Streaming
Adjustable resolution, quality and constant bit rate control, Smart Stream III
Image Settings
General settings: video title and time stamp overlay, video orientation (flip, mirror, rotation), day/night settings; Illuminators: illuminators, anti-overexposure/smart IR; Image settings: white balance, image adjustment (brightness, contrast, saturation, sharpness, gamma curve), defog, 3DNR; Exposure: BLC, HLC, exposure control (exposure level, exposure time, gain control), Image sharpener for motion blur, AE speed adjustment, WDR; Focus: zoom, focus; Privacy mask; Pixel calculator; Scheduled profile settings
|
|
Audio
|
Audio Capability
One-way Audio
Audio Compression
MPEG-2 AAC-LC, G.711, G.726
Audio Interface
Built-in microphone
Effective Range
5 meters
|
|
| Network |
Users
Live viewing for up to 10 clients
Security
Access list, CSRF protection, digest authentication, HTTPS , IEEE 802.1x, Password protection, secure boot, signed firmware, Trend Micro IoT Security (brute force attack event, cyberattack event, quarantine event), user access log, user account management
Protocols
802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP/SFTP, HTTP, HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTCIP, NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2/1.3, UDP, UPnP
Interface
10 Base-T/100 Base-TX Ethernet (RJ-45)
*It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard.
ONVIF
Profile G, S, T supported, specification available at www.onvif.org
|
|
AI Analytics
|
Compute Capability
SoC with built-in hardware deep learning accelerator
Vision Object Analytics
Object Detection: People, Vehicle (4-wheeled, 2-wheeled); Attribute Extraction: People (gender, clothing color, bag, hat), Vehicle (bike, bus, car, motorcycle, truck, color); Re-Search Extraction; Path Extraction
Application
Deep Learning VCA (Smart Motion Detection, Smart VCA)
Smart Motion Detection (Five-window video motion detection, People detection, Vehicle detection, Time filter), Smart VCA (Intrusion detection, Loitering detection, Line crossing detection, Face detection)
Application available with license
Unattended object detection, Missing object detection, Crowd detection, Running detection, Parking Violation Detection, Restricted Zone Detection
Support for more analytic applications and free trial, please visit vivotek.com/video-analytics
|
|
| Solution Integration |
Applications
Trend Micro (Default, 1-year free trial)
|
|
| Alarm and Event |
Event Trigger
Audio detection, camera tampering detection, cybersecurity events (brute force attack event, cyberattack event, quarantine event), manual trigger, motion detection, periodical trigger, recording notification, SD card life expectancy, shock detection, system boot
Event Action
Event notification via camera link, email, HTTP, FTP/SFTP, NAS server, SD card
File upload via email, HTTP, FTP/SFTP, NAS server, SD card
|
|
General
|
Connectors
RJ-45 cable connector for 10/100 Mbps Network/PoE connection
LED Indicator
System power and status indicator
Power Input
IEEE 802.3af PoE Class 3
Power Consumption
Max. 9.7 W/ 7.2 W (IR on/off)
Dimensions
ø133.7mm x 103.8mm
Weight
850 g
Certifications
EMC:
CE (EN 55032/EN 55035 Class A), UKCA (BS EN 55032/BS EN 55035 Class A), FCC (FCC Part 15 Subpart B Class A), RCM (AS/NZS CISPR 32 Class A), VCCI (VCCI-CISPR 32 Class A), IC (ICES-003 Issue 7, Class A)
Safety:
UL (UL 62368-1), CB (IEC/EN 62368-1, IEC/EN 60950-22, IEC/EN 62471), LVD (IEC/EN 62368-1), UKCA (BS EN 62368-1);
Environment:
IK10 (IEC 62262), IP66 (IEC 60529); IA: BIS (IS 13252), BSMI (EMC: CNS 15936, Safety: CNS 15598-1)
Operating Temperature
Starting Temperature:
-10°C ~ 50°C (-14°F ~ 122°F)
Working Temperature:
-30°C ~ 55°C (-22°F ~ 131°F) (IR off)
-30°C ~ 50°C (-22°F ~ 122°F) (IR on)
Humidity
90%
|
|
| System Requirements |
Operating System
Microsoft Windows 10/8/7
Mac 10.12 (Chrome only)
Web Browser
Chrome 58.0 or above
Other Players
VLC: 1.1.11 or above
|
|
| Included Accessories |
Packing Contents
Quick installation guide, alignment sticker, screw pack, cable gland
|
|
| DORI (EN 62676-4 Standard) |
Detect (25PPM/ 8PPF)
Wide: 67.0 m (219.9 ft)
Tele: 205.7 m (674.8 ft)
Observe (63PPM/ 19PPF)
Wide: 26.7 m (87.5 ft)
Tele: 81.6 m (267.8 ft)
Recognize (125PPM/ 38PPF)
Wide: 13.3 m (43.7 ft)
Tele: 41.0 m (134.4 ft)
Identify (250PPM/ 76PPF)
Wide: 6.6 m (21.7 ft)
Tele: 20.5 m (67.1 ft)
|
