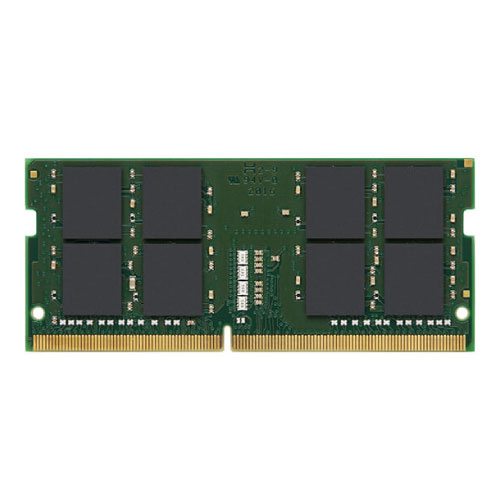

This document describes ValueRAM's KVR32S22D8/32 is a 4G x
64-bit (32GB) DDR4-3200 CL22 SDRAM (Synchronous DRAM),
2Rx8, non-ECC, memory module, based on sixteen 2G x 8-bit
FBGA components. The SPD is programmed to JEDEC standard
latency DDR4-3200 timing of 22-22-22 at 1.2V. This 260-pin DIMM
uses gold contact fingers. The electrical and mechanical
specifications are as follows:
• Power Supply: VDD = 1.2V Typical
• VDDQ = 1.2V Typical
• VPP = 2.5V Typical
• VDDSPD = 2.2V to 3.6V
• Nominal and dynamic on-die termination (ODT) for
data, strobe, and mask signals
• Low-power auto self refresh (LPASR)
• Data bus inversion (DBI) for data bus
• On-die VREFDQ generation and calibration
• Dual-rank
• On-board I2 serial presence-detect (SPD) EEPROM
• 16 internal banks; 4 groups of 4 banks each
• Fixed burst chop (BC) of 4 and burst length (BL) of 8
via the mode register set (MRS)
• Selectable BC4 or BL8 on-the-fly (OTF)
• Fly-by topology
• Terminated control command and address bus
• PCB: Height 1.18” (30.00mm)
• RoHS Compliant and Halogen-Free
|
Memory Type
|
SODIMM
|
|
| Capacity |
32GB
|
|
Data Transfer Rate
|
3200MHz
|
|
Pins
|
260 Pin
|
|
| Bus Type |
PC-25600
|
|
Error Correction
|
Non-ECC
|
|
| Cycle Time |
0.62ns
|
|
| Cas |
CL22
|
|
Rank
|
Rank 2
|
|
Voltage
|
1.2
|
